Aerial PE Jacket Single Mode Optical Fiber Cable (GYXTC8S)

Name: Aerial PE Jacket Single Mode Optical Fiber Cable (GYXTC8S)
Brand: all-electronics-online.com
SKU: 830508975
Availability: InStock
Rating: 4.6 (137 reviews)

Price:	US $ 0.3/Meter
Min Order:	3000/Meter
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYXTC8S
Brand Name Of Fiber:	Corning, Yofc, Draka, Fujikura.
Loose Tube Material:	PBT with Jelly
Waterblocking Material:	Water Blocking Tape or Filling Compound
Outer Sheath Material:	MDPE / HDPE / LSZH PE
Outer Sheath Color:	Black PE Fiber Optic Cable
Messenger Material:	Steel Wires
Single Armour Material:	Corrugated Steel Tape
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Optical Fiber Cable
Brand:	Tw-Scie or OEM
Sheath Material:	PE

Product Description

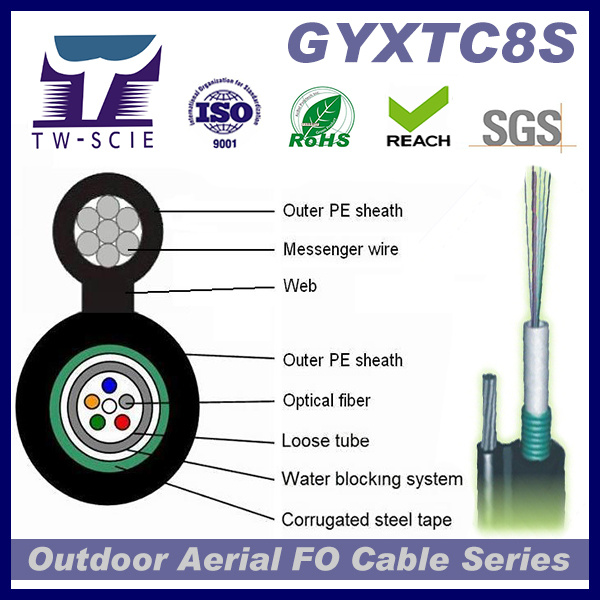

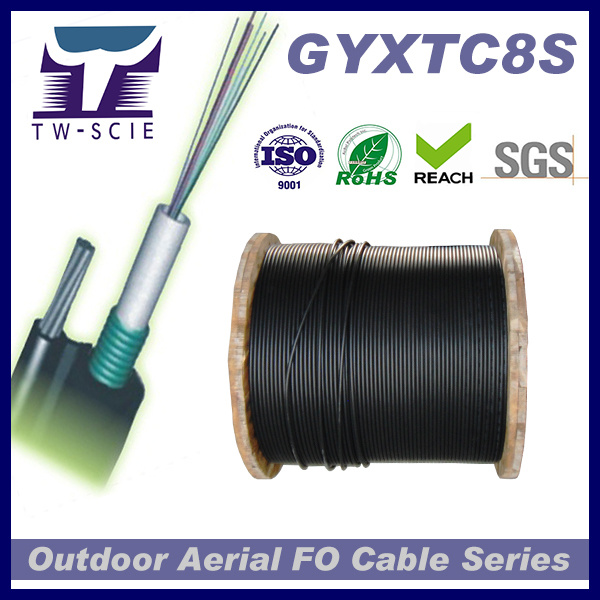

Aerial PE Jacket Single Mode Optical Fiber Cable (GYXTC8S)

Specifications

1.self-supporting multi core
2.PE Sheath
3.Waterproof loose tube
4.The most competitive price

DESCRIPTION

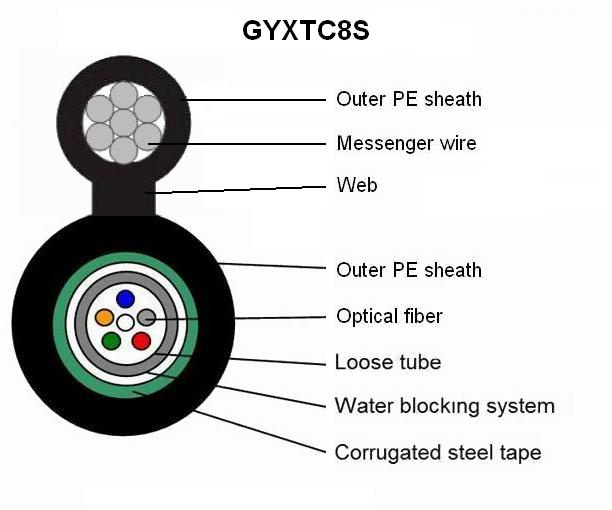

1.Selfsupporting loose-bubed stranded padding outdoor communication cable with metallic strengthened hanging line andsteel-PE cementing sheath
2.Cove the innerfulfilled waterproof compoundloose tube, with the single mode andmulti-mode optical fiber
3.A FFRP in the middle of the optical cablecore
4.Sheath Material:PE
4.Outdoor Aerial Self-supporting GYXTC8S Optical Fiber Cable

Application
1.Long distance and local area network communication.
2.Adopted to Outdoor distribution.

Technical specification

Technical data:

Fiber core

Stranded Wire

Cable diameter (mm)

Messenger cable Diameter (mm)

Cable Height (mm)

Cable weight (kg/kg)

Min.bend radius

Max. Running tension (N)

Safe running tension (N)

Min.Breaking tension (N)

Max.crush loading (N/100mm)

Dynamic

Static

Short term

Long term

2-12

1×7-3.0

8.3

5.0

15.8

135

10D

20D

3000

1000

7990

2000

1000

Packaging & Shipping

Packaging Detail: Wooden drum or iron wooden drum

Delivery Detail: 30 days after confirmation of order and payment

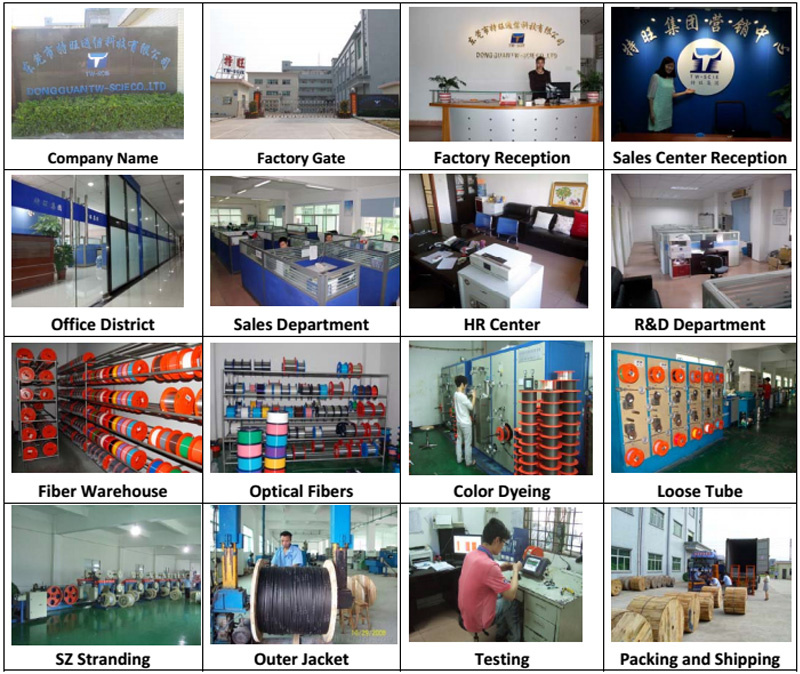

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
