Aerial Self Supporting 12 Cores Fiber Optic Cable
| Price: |
US $ 0.23-0.8/Meter |
| Min Order: |
12000/Meter |
| Pay Type: |
L/C,T/T |
| Application Method: |
Self-Supporting Aerial |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Joint Box |
| Sheath Material: |
PE |
Product Description

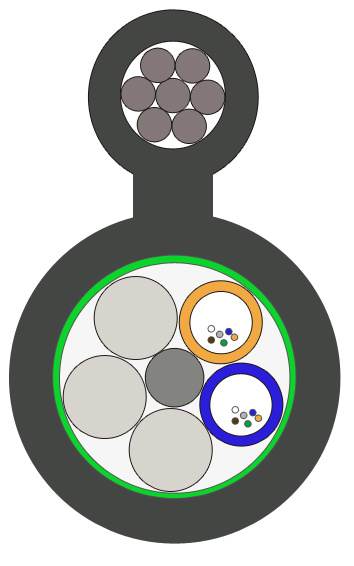

Drawing
Specification
Metallic messenger, loose-tube stranded, gel filling, metallic(non-metallic) strength member, laminated corrugated steel tape-polyethylene sheath figure 8 self-supporting outdoor cable for communication purpose.FeaturesHigh quality optical fiber provides good transmission performance
Accurate fiber excess length control ensures excellence mechanical and temperature performance
Strict craft and raw material control for cable stably operating over 30 years
The sturcture of all section water blocking and longitudinally armored with both side coated aluminum tape provide good performance of moisture-proof and water blocking
Special filling gel filled loose tubes provides optical fiber protection
Longitudinal corrugated steel tape improves crush resistance of the cable
Figure-8 self-supporting structure has good tensile strength and allows easy aerial installation for installation cost savingsProduct Charistics:
The type of this fiber with single-mode or multimode with a loose tube which is made of high modulus plastic .
there is used a waterresistant filling compound for filling.the center used a steel wire locates as a metallic
strength member .the tubes ( and filers ) are stranded around the strength member into a compact and circular
cable core. After PSP is applied around the cable core ,this part of cable accompanied with the stranded wires
as the supporting part are completed with a polyethylene sheath to be figure 8structure .this kind of cable

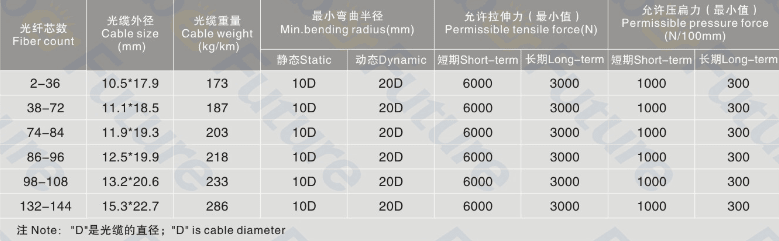

is suitable for applied for self-supporting aerial installation .Cable structure and parameter
Packaging & Delivery
Packaging Details: | Packed on fumigated wooden Drum suitable for long distance shipment. |
|---|
| Delivery Detail: | Fifteen Days |
|---|
Packaging & Shipping
Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by
strong wooden battens;or any other package u see from the market we can make for u as well, any OEM order is welcome,or according to the quantity.
