Aerial Single Model GYFTY Fiber Optic Cable with 72 Core
| Price: |
US $ 0.1-0.5/Meter |
| Min Order: |
3000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
GYFTY |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Connection Structure: |
Optical Fiber |
| Brand: |
Tw-Scie or OEM |
| Sheath Material: |
PE |
Product Description
Single Model GYFTY Fiber Optic Cable with 72 Core

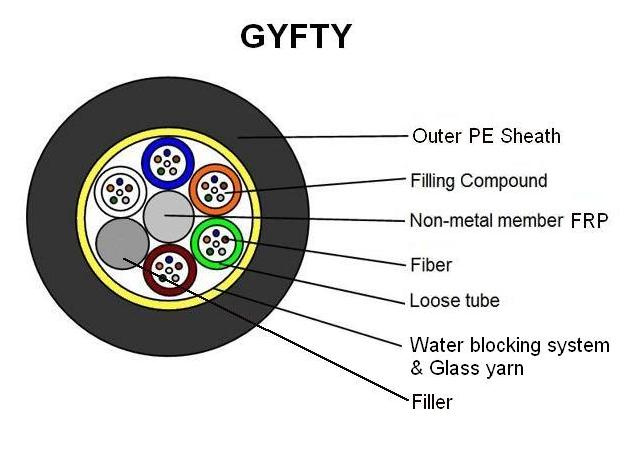

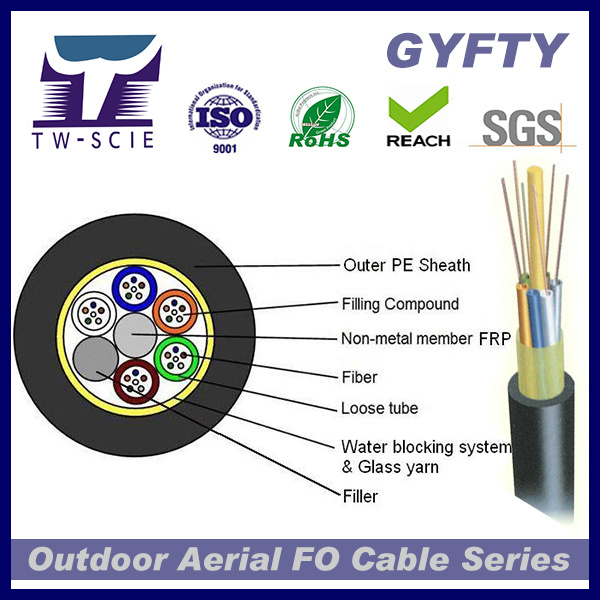

GYFTY Outdoor Sm 9/125 unarmored Fiber Cable
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental characteristics.
3. Anti-electromagnetism ability.
4. Small cable diameter, light cable weight, easily to install.
GYFTY optic fiber cable Technology Specification:
GYFTY Fiber Optic Cable Technology Specification: |
| Cable Count | Out sheath | Weight | Minimum allowable Tensile Strength | minimum allowable Crush Load | Minimum Bending Radius | Storage |
| Diameter |
| (N) |
| (N/100mm) | (MM) |
| temperature |
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) |
| 2-60 | 9.8 | 65 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 62-72 | 10.5 | 85 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 74-96 | 14.5 | 145 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 98-144 | 18.3 | 185 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
GYFTY optic fiber cable Optical Characteristics: : |
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
|
| A1b:62.5/125 |
| Singlemode | G.652(A,B,C) | B1.1:Conventional fiber |
| G.652D |
| B2: Zero dispersion shifted |
| G.655 |
| B1.2 :Cut-off wavelength shifted |
| G.657(A1,A2 ,B3) | B4: Main technical data for positive |
| dispersion shifted single-mode fiber |
GYFTY 2-288 Core Optical Fiber Cable Competitive Advantages:
1.OEM fiber optic cable manufacturer
2. Fiber brand : YOFC, CORNING,FUJIKURA
3.Quality certification :ISO9001.ROSH.REACH
4.Cooperate with Vietnam telecom, Thai telecom, Singapore telecom, Dubai telecom and other big projects
5.Tw-scie known as the fiber optic cable manufacturer for the excellent products quality,competitive prices , fast delivery and good service
GYFTY 2-288 Core Optical Fiber Cable Main Export Markets
· Central/South America
· Mid East/Africa
· Eastern Europe
· North America
· Asia
· Western Europe
· Australasia
Why Choose Our Fiber Optic Cable
1.Introduction of foreign advanced production equipment and technology, have 12 years production experience, 80% employees have more than 10 years experience, excellent enterprise culture and management team.
2.FAST SHIPPING from factory
3.Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
4.We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like.
5.We accept OEM. The cable size and material are customized. Your own logo and own design are welcome. We will produce according to ur requirement and description;
6.With more than 12 years experience in fiber optic cable,we already cooperated and established long-term business relationship with both domestic and overseas famous enterprise.
Contact us:
We highly appreciate your any enquiry by email, fax or instant message. We will reply your email or fax within 12 hours. Please fell free to call us at any time if there is any questions.
Transportation:
· All available shipping ways could be applied, by courier, air or sea.
· Appointed shipping company or our own forwarders all could be used in shipment.
· Full-way tracking the cargos for you before the goods arrive.
DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication
Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.
The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.
The main products of our enterprise are:
Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.
All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
