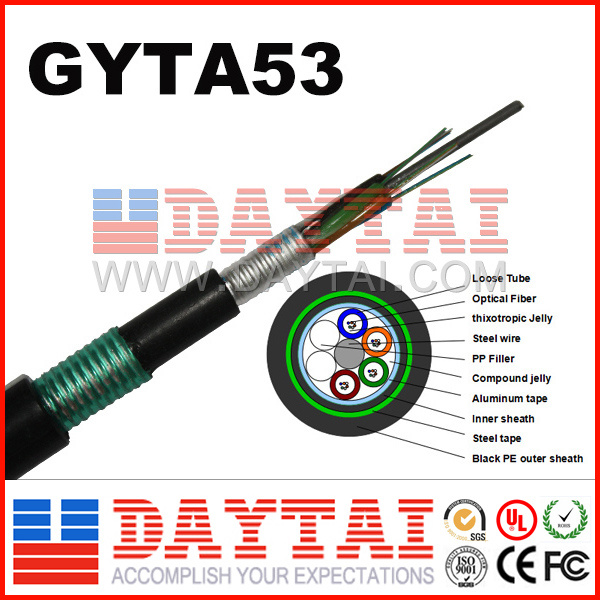

Aerial Underground GYTA53 Multi/Single Mode Fiber Optic Cable
| Price: |
US $ 38-69/Roll |
| Min Order: |
1/Roll |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
DT-GYTA53FC |
| Quality Certification: |
ISO 9001, SGS, Ce, etc |
| Description: |
ADSS Fiber Optic Cable |
| Tensile Strength: |
1000-3000 N |
| Crush Resistance: |
1000-3000 N |
| Cable Diameter: |
14-20mm |
| Cable Weight: |
185-375 Kg/Km |
| Operating Temperature: |
-40~+60 |
| Wiring Devices: |
None |
| Condition: |
New |
| Type: |
Cable |
| Certification: |
GS, CE, ISO |
Product Description
Aerial Underground GYTA53 Multi/Single Mode Fiber Optic Cable

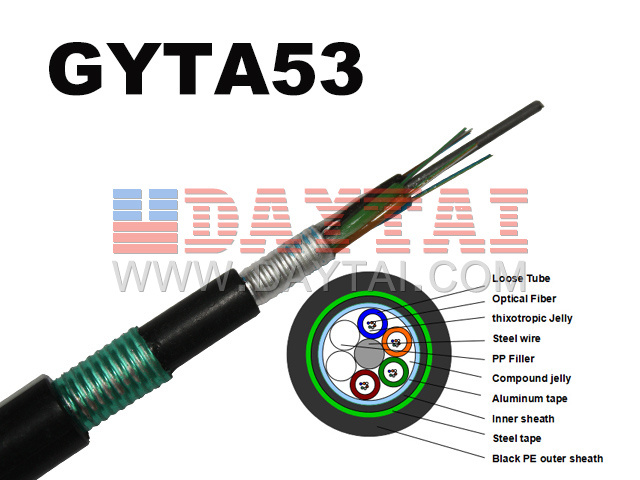

DescriptionFiber Optic Cable,The structure of GYTA53 (outdoor optical cable used for telecommunication with metalliccentral strength, loose and layer-stranded tube style, aluminum-polyethylenecover, and vertically corrugated steel tape armored) is covering the inner-fulfilled waterproof compound loose tube, which is made of high modulus plastic, with the single mode and multi-mode optical fiber.
The center of the cable's core is steel wire. For some optical cables with certain number of core, this steel wire could be a strand, or covered with a tight pack of polyethylene (PE). The compact and round shape cable core is a combination of the loose sleeve pipe (gasket for packing) and center-strengthened core, thegap in the cable core is filled with water retarding compound. (the core number of the vertical-laid moisture retarding belt out of the cable core is over 96).The PE sheath will appear after being vertically covered with the plastic-plated aluminum belt, The polyethylene over layer will be made after the double-side plastic-plated aluminum belt is covered vertically.
Specification
Fiber count | 2~36 | 38~60 | 62~72 | 74~84 | 86~96 | 98~108 | 110~120 | 122~132 | 134~144 |
CSM/Steel wire (mm) | --/2.0 | --/1.8 | 2.2 | 3.2/2.0 | 4.0/2.0 | 4.8/2.2 | 5.6/2.2 | 6.4/2.2 | 7.2/2.2 |
Element number | 6 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Max. cores in tube | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
Cable diameter | 14.0 | 14.6 | 15.2 | 16.0 | 16.8 | 17.6 | 18.4 | 19.2 | 20.0 |
Weight | 185 | 200 | 215 | 240 | 265 | 290 | 315 | 345 | 375 |
Tensile strength (N) | Long term | 1000 |
Short term | 3000 |
Crush Resistance (N/100MM) | Long term | 1000 |
Short term | 3000 |
Bending Radius (MM) | Dynamic | ≥20 * Cable diameter |
Static | ≥10 * Cable diameter |
Operating Temperature (ºC) | -40~+60 |
Application | Aerial ,Direct burial |
