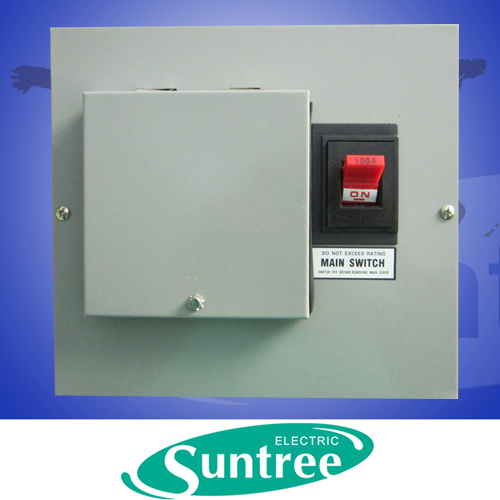

Africa Distribution Box (1P 4WAY)

Africa Distribution Box (1P 4WAY)
Price: US $ 30-60/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: STSM
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate: CE / RoHS
Quality Assurance: 2 Years
Professional Manufacture: 10years
Volt: 415V
AMP: 125A
Ways: 4-12ways
Thickness: 0.6 / 0.8 / 1.0mm
4#: 208*228*90mm
6#: 208*279*90mm
8#: 208*330*90mm
Type: Distribution Metering Box
Structure: Fixed Board
Brand: Suntree/ OEM/ ODM

Product Description

Africa Distribution Box (1P 4WAY)

Specifications:
1) AC 50 / 60Hz circuits
2) Rated voltage up to 415V
3) Rated current up to 125A
4) One main switch, MCBs mounted, or with a leakage switch
5) Flush and surface mounting, single (4 - 12 ways) and three-phase
(4 - 12 ways) available
6) Body materials: Cold-rolled steel, 0.6 / 0.8 / 1.0mm thickness
7) Finish: Plastic powder coating metal enclosure
CircuitModelSizeThickness
Single phase4#208*228*900.6/0.8/1.0mm


6#208*279*90



8#208*330*90



10#208*381*90



12#208*432*90

Three phase3#390*370*1000.8/1.0/1.2mm


4#470*370*100



6#545*370*100



8#620*370*100



10#695*370*100



12#770*370*100
