| Prod Model: |
AGM 12VDC Battery SH 4-230AH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
See in The Web |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description

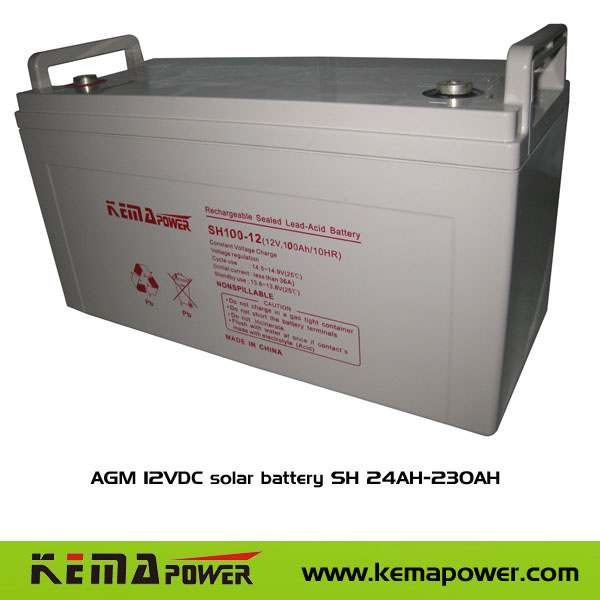

AGM 12VDC Battery (SH 4-230AH)1. Fully sealed: With cover and pole double seal design to prevent leakage of electrolysis, and the reliability of safe-vale prevent oxygen and dust from outside enter into the battery.
2. Free maintenance: With the performance of water reproduce and high sealed reaction efficiency, it no needs any compensation of and water during ues.
3. Safety: Without acid leaked, reliable gas pressure venting system and equipped with anti-explosion device, which make the battery safer during use.
4. Long cycle life: Anti-erosion pb-ca multi-alloy, ABS plastic materical and high sealed reaction efficiency assurethe resden batttery's service life.
5. Temperature adaptability: The battery can be used safely during -25-50
6. Convenient and safety: The battery has charged with load befor leaving the factory, without free electrolysis, it allowed to be placed breadthways and transported by sea and railway as nonhazardous material.
7. Economical: With high perforamce, long service life and lowest maintenance cost to offer consumers the most economical procucts.
Application:1. UPS
2. Power Tools
3. Cable TV
4. Alarm system
5. Emergency power system
6. Control equipment
7. Marine equipment
8. Vacuum Cleaners
9. Electric Wheel Chairs
Technical Specifications | BATTERY MODEL | Voltage | Capacity | Resistance | Product Size (MM) | Product weight | Terminal type |
| (VDC) | (Ah) | (m∪) | L | W | H | T/H | KG |
| SH4-12 | 12 | 4 | ≤40 | 91 | 70 | 101 | 108 | 1.40 | L |
| SH7.2-12 | 12 | 7 | ≤22 | 151 | 65 | 94 | 99 | 2.20 | L |
| SH9-12 | 12 | 9 | ≤30 | 151 | 65 | 94 | 99 | 2.80 | L |
| SH12-12 | 12 | 12 | ≤17 | 151 | 99 | 94 | 99 | 3.70 | L |
| SH17-12 | 12 | 17 | ≤16 | 181 | 76 | 166 | 166 | 5.10 | L |
| SH24-12 | 12 | 24 | ≤8.3 | 166 | 125 | 175 | 182 | 8.50 | L/O |
| SH38-12 | 12 | 38 | ≤7.3 | 197 | 165 | 170 | 182 | 13.80 | L/O |
| SH65-12 | 12 | 65 | ≤6.1 | 350 | 167 | 178 | 178 | 21.00 | L/O |
| SH100-12 D | 12 | 100 | ≤5 | 330 | 173 | 220 | 240 | 26.00 | L/O |
| SH100-12 M | 12 | 100 | ≤4.4 | 406 | 174 | 238 | 238 | 29.00 | L/O |
| SH120-12 | 12 | 120 | ≤4 | 406 | 174 | 238 | 238 | 36.00 | L/O |
| SH150-12 | 12 | 150 | ≤3.5 | 484 | 171 | 241 | 241 | 45.00 | L/O |
| SH 200-12 | 12 | 200 | ≤3.4 | 520 | 240 | 224 | 244 | 63.00 | L/O |
| SH230-12 | 12 | 230 | ≤1 | 520 | 240 | 224 | 244 | 63.00 | L/O |
Note : 1.the rate capaticy (10 rate hour)is the average tested by several times at 25ºC. For 24-230AH.
2. the rate capaticy (20 rate hour)is the average tested by several times at 25ºC. For 4-17AH.
3.the total height of battery includes the terminal.
4."L" terminaldenotes quardrate terminal and postifix "o" terminal denotes cylindrcal
terminal.
5.it is to be noted that all these parameters are subject to change without notice. |
|
|
|
| watts to F.V 1.70 volts per cell |
| type time | 5min | 10min | 15min | 30min | 45min | 60min | 120min | 180min |
| SH4-12 | 28.7 | 23.0 | 16.6 | 10.0 | 7.0 | 5.6 | 3.0 | 2.2 |
| SH7.2-12 | 46.6 | 31.1 | 25 | 13.9 | 10.3 | 8 | 4.77 | 3.38 |
| SH9-12 | 62.8 | 42.1 | 31.1 | 18 | 13.4 | 10.6 | 5.96 | 4.12 |
| SH12-12 | 75.3 | 50.5 | 37.3 | 21.6 | 16.1 | 12.7 | 7.15 | 4.94 |
| SH17-12 | 94.2 | 70.2 | 53.8 | 36.5 | 27.2 | 22.1 | 13.4 | 10 |
| |
| type time | 5min | 10min | 15min | 20min | 30min | 40min | 50min | 60min |
| SH24-12 | 645 | 496 | 380 | 323 | 262 | 212 | 180 | 158 |
| SH38-12 | 1022 | 785 | 602 | 511 | 414 | 335 | 284 | 250 |
| SH65-12 | 1748 | 1343 | 1029 | 874 | 708 | 574 | 486 | 427 |
| SH100-12D | 2730 | 1960 | 1550 | 1300 | 1015 | 820 | 623 | 390 |
| SH100-12 | 2934 | 2106 | 1668 | 1404 | 1092 | 882 | 672 | 420 |
| SH120-12 | 3227 | 2317 | 1835 | 1544 | 1200 | 970 | 739 | 462 |
| SH150-12 | 4400 | 3160 | 2502 | 2106 | 1638 | 1323 | 1008 | 630 |
| SH200-12 | 5868 | 4212 | 3336 | 2808 | 2184 | 1764 | 1344 | 840 |
| SH230-12 | 6750 | 4840 | 3836 | 3230 | 2510 | 2028 | 1545 | 966 |
