| Prod Model: |
SH4.5AH-230AH/12VDC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Power |
| Nominal Voltage: |
12V |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
AGM 12VDC vrla lead-acid Battery (SH4.5AH-230AH/12VDC) * AGM standby Battery from 4.5AH to 230AH/12VDC
* 5+ years floating design life time
* Length of service affected by discharge cycles number
* The solid protects avoid to suffer electrolyte stratification and ensure mild corrosion
* Special separator to prevent short circuit inside
* Extra-durable performance under extreme temperature
Key features:
1.fully sealed:with cover and pole double seal design to prevent leakage of electrolysis,and the reliability of safe-vale prevent
oxygen and dust from outside enter into the battery.
2.free maintenance: with the performance of water reproduce and high sealed reaction efficiency,it no needs any compensation
of and water during ues.
3.safety: without acid leaked,reliable gas pressure venting system and equipped with anti-explosion device,which make the
battery safer during use.
4.long cycle life: anti-erosion pb-ca multi-alloy,ABS plastic materical and high sealed reaction efficiency assurethe resden
batttery's service life.
5.temperature adaptability: the battery can be used safely during -25-50ºC.
6.convenient and safety: the battery has charged with load befor leaving the factory,without free electrolysis,it allowed to be
placed breadthways and transported by sea and railway as nonhazardous material.
7.economical: with high perforamce,long service life and lowest maintenance cost to offer consumers the most economical procucts.
Application:
1.UPS
2.Power Tools
3.Cable TV
4.Alarm system
5.Emergency power system
6.Control equipment
7.Photovoltaic
8.Electric Powered Vehicles
9.Marine equipment
10.Vacuum Cleaners
11.Golf Cars and Buggies
12.Electric Wheel Chairs
Product Show:
Technical specification | BATTERY MODEL | Voltage | Capacity | Resistance | Product Size (MM) | Product weight | Terminal type |
| | (VDC) | (Ah) | (m∩) | L | W | H | T/H | KG |
| SH4.5-12 | 12 | 4.5 | <=50 | 90 | 70 | 106 | 106 | 1.45 | F1 |
| SH7-12 | 12 | 6.5 | <=45 | 151 | 65 | 94 | 94 | 2.00 | F2 |
| SH7.2-12 | 12 | 7.2 | <=40 | 151 | 65 | 94 | 94 | 2.20 | F2 |

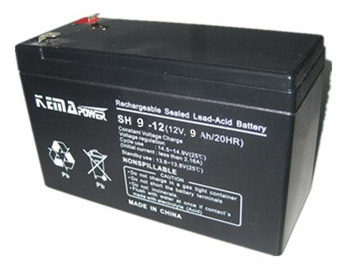

| SH9-12A | 12 | 9 | <=35 | 151 | 65 | 94 | 94 | 2.50 | F2 |
| SH9-12B | 12 | 9 | <=35 | 151 | 65 | 94 | 94 | 2.30 | F2 |
| SH12-12 | 12 | 12 | <=30 | 151 | 99 | 94 | 94 | 3.70 | F2 |
| SH17-12 | 12 | 17 | <=16 | 181 | 76 | 166 | 166 | 5.50 | L-6 |
| SH18-12 | 12 | 18 | <=15 | 181 | 76 | 166 | 166 | 5.50 | L-6 |
| SH24-12 | 12 | 24 | <=13 | 166 | 125 | 175 | 182 | 8.00 | M6 |
| SH26-12 | 12 | 26 | <=11 | 166 | 125 | 175 | 182 | 8.50 | M6 |
| SH38-12 | 12 | 38 | <=10 | 197 | 165 | 170 | 182 | 12.00 | M6 |
| SH40-12 | 12 | 40 | <=8 | 197 | 165 | 170 | 182 | 12.00 | M6 |
| SH55-12 | 12 | 55 | <=6.5 | 227 | 138 | 206 | 228 | 17.20 | M6/L-6 |

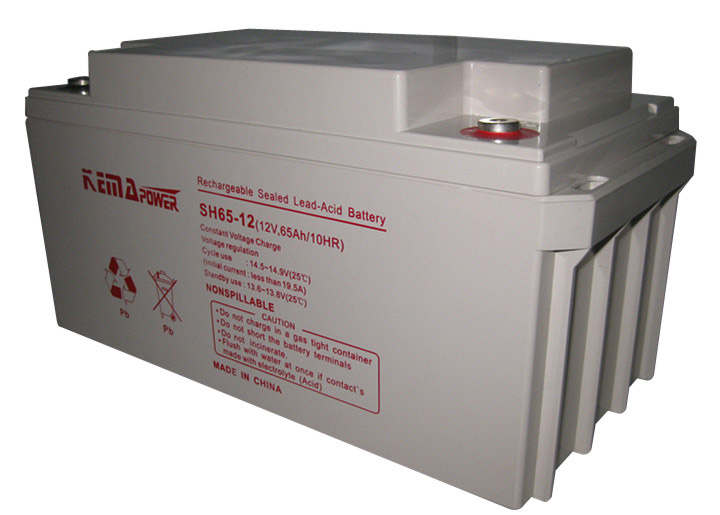

| SH65-12 | 12 | 65 | <=6.1 | 350 | 166 | 178 | 178 | 21.00 | M6 |
| SH100-12D-15 | 12 | 100 | <=5 | 330 | 173 | 220 | 240 | 27.00 | M8 |
| SH100-12D-17 | 12 | 100 | <=5 | 330 | 173 | 220 | 240 | 28.50 | M8 |

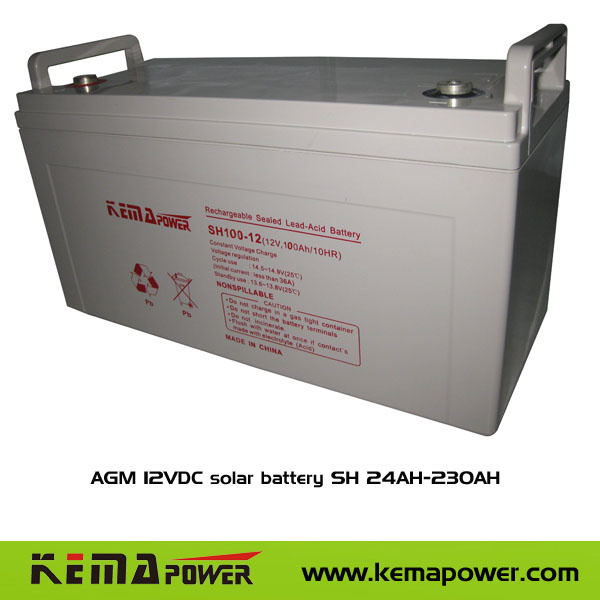

| SH100-12M | 12 | 100 | <=4.4 | 407 | 174 | 238 | 238 | 31.00 | M8 |
| SH120-12-15 | 12 | 120 | <=4 | 407 | 174 | 238 | 238 | 33.00 | M8 |
| SH150-12-15 | 12 | 150 | <=3 | 485 | 171 | 241 | 241 | 37.00 | M8 |
| SH150-12-17 | 12 | 150 | <=3 | 485 | 171 | 241 | 241 | 43.00 | M8 |
| SH200-12-15 | 12 | 200 | <=3 | 520 | 240 | 224 | 244 | 57.00 | M8 |
| SH200-12-17 | 12 | 200 | <=3 | 520 | 240 | 224 | 244 | 63.00 | M8 |
| SH230-12 | 12 | 230 | <=1 | 520 | 269 | 203 | 203 | 67.00 | M8 |
| Note:1.the rate capaticy (10 rate hour)is the average tested by several times at 25ºC. 2.the total height of battery includes the terminal. 3."L" terminaldenotes quardrate terminal and postifix "o" terminal denotes cylindrcal terminal. 4.it is to be noted that all these parameters are subject to change without notice. |
|
|
|
|
| watts to F.V 1.70 volts per cell |
| type time | 5min | 10min | 15min | 30min | 45min | 60min | 120min | 180min |
| SH4-12 | 28.7 | 23.0 | 16.6 | 10.0 | 7.0 | 5.6 | 3.0 | 2.2 |
| SH7.2-12 | 46.6 | 31.1 | 25 | 13.9 | 10.3 | 8 | 4.77 | 3.38 |
| SH9-12 | 62.8 | 42.1 | 31.1 | 18 | 13.4 | 10.6 | 5.96 | 4.12 |
| SH12-12 | 75.3 | 50.5 | 37.3 | 21.6 | 16.1 | 12.7 | 7.15 | 4.94 |
| SH17-12 | 94.2 | 70.2 | 53.8 | 36.5 | 27.2 | 22.1 | 13.4 | 10 |
| |
| type time | 5min | 10min | 15min | 20min | 30min | 40min | 50min | 60min |
| SH24-12 | 645 | 496 | 380 | 323 | 262 | 212 | 180 | 158 |
| SH38-12 | 1022 | 785 | 602 | 511 | 414 | 335 | 284 | 250 |
| SH65-12 | 1748 | 1343 | 1029 | 874 | 708 | 574 | 486 | 427 |
| SH100-12D | 2730 | 1960 | 1550 | 1300 | 1015 | 820 | 623 | 390 |
| SH100-12 | 2934 | 2106 | 1668 | 1404 | 1092 | 882 | 672 | 420 |
| SH120-12 | 3227 | 2317 | 1835 | 1544 | 1200 | 970 | 739 | 462 |
| SH150-12 | 4400 | 3160 | 2502 | 2106 | 1638 | 1323 | 1008 | 630 |
| SH200-12 | 5868 | 4212 | 3336 | 2808 | 2184 | 1764 | 1344 | 840 |
| SH230-12 | 6750 | 4840 | 3836 | 3230 | 2510 | 2028 | 1545 | 966 |
