Ymc 36VDC Battery Charger

Ymc 36VDC Battery Charger
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: YMC 36VDC
Product Name: Ymc 36VDC Battery Charger
Type: Lead-Acid Battery Charger
Charging Type: Electric Charger
Principle: Pulse Charging Mode

Product Description

YMC 36VDC battery charger

General Specifications
* High Frequency switch Power Supply Technology
* CPU Controlled 5-50 step charger, follow the battery charge and discharge curve
* pulse charging mode
* with temperature compensation function
*  AC Input  110V, 220V,90-264V,  47-63HZ(Please specify when order)
* DC Output Voltage :12V,24V,36V,48V,60V,72VDC (Please specify when order)
 * Charging Current : 1A---100A (Please specify when ordering)
* Ouput Short circuit  protection
*  Over charging protection
*  Reverse polarity protection for input (Option)
* Automatic self test function before charge
 * Efficiency : 70%--90%( based on load capacity)
* LED display. On, OFF, battery chage state
* apply to AGM,GEL,Li-Ion,MH-NI Battery,Please specify when ordering


36VDC Technical Specifications

 MODELYMC 361.8YMC 3603YMC 3605YMC 3608YMC 3610YMC 3620YMC 3625
 Charging voltage36VDC
 Charging current1.8A3A5A8A10A20A25A
 DC high Voltage53.5
 Keep on charging  point40.5
 Size (mm)160*90*55185*95*55185*95*55185*95*60345*180*115345*180*115370*235175
 Gross weight (kg)0.50.711.5253.2

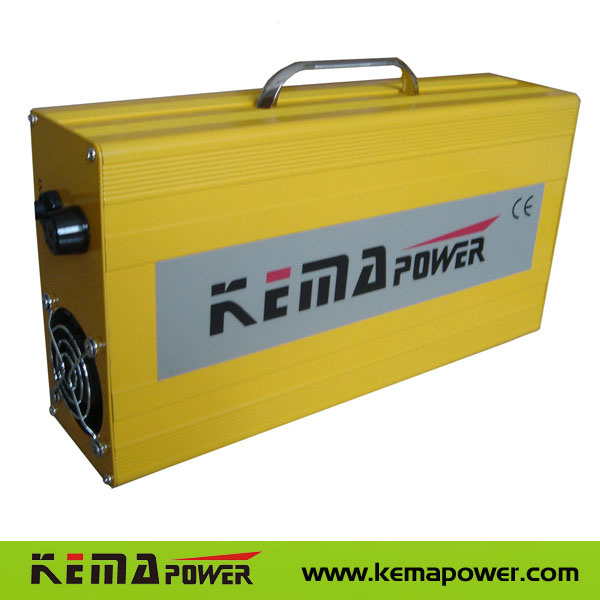

Product Show:





Trade Show:

Certification:
Foshan Kemapower Electronics Co., Ltd. is a leading manufacturer and trader of electronics and electrical equipment with over 10 years experience in this field, and with wide worldwide export in many other countries and regions as well as over 30 sales branches and agents in China. We specialize in manufacturing and supplying UPS, Power inverter, Battery charger, Battery, Solar street lamp kit, solar power system, AC voltage regulator, and other electrical power products. We are a company with ISO certificate and all of our products are designed and produced in accordance with ISO rules. The most of products have passed the CE certificate of EU, UL certificate of U. S. A.

Our products not only occupy a large share in Chinese market but also export to many other countries and regions including USA, Arabia, Middle East, Europe and Southeast Asia with a wide recognition.

Our motto:

- Take Quality First. We believe that success is in the details.

- Good Faith Utmost. We believe that quality products start with quality people.

- Specialized and professional with well skilled focus

Quality requirements of our products and services will be specified into every step of the whole process. Honesty is the most essential quality and character that every our employee shall have.

Market and sales policies

We, Kemapower Electronics Co., Ltd believe that our large success in market is based on three main policies.

- Long-term cooperation

It is our aim in establishing our relationship with every customer and helping him to win a constant development.

- Price positioning strategy

Small profits but quick turnover is our business experience. We always supply our high quality products with the best prices based on our quality criterion.

- After-sale service and support

As we all know, in the global world, where there are no limits anymore, the competition in every field is getting more thorough. High quality products based on strategy of total quality management is the key point. We believe that high quality is a must. Meanwhile, we believe that we need to differentiate ourselves in order to create customer satisfaction.

Obviously Customer satisfaction is the key word for the success. We believe that both our customers and we will achieve great successes in global market as well as in Chinese market in a win-win situation based on our abundant resource and Specialized and professional experience in the Power Products field.
