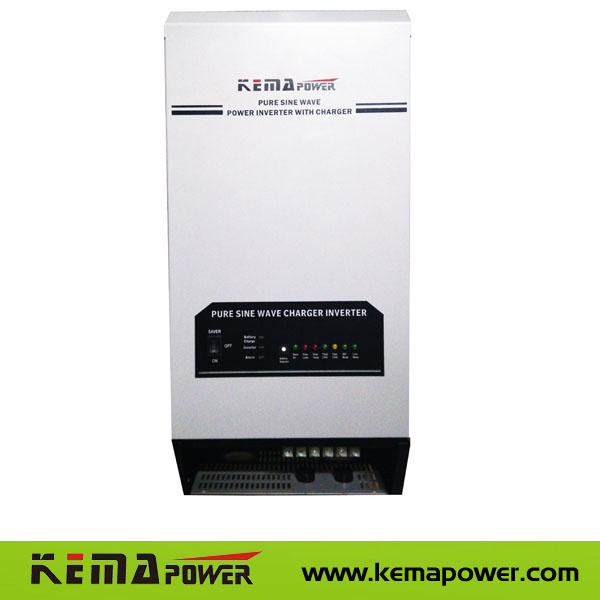

Low Frequency Sine Wave Home UPS R-Psw 6kw

Name: Low Frequency Sine Wave Home UPS R-Psw 6kw
Brand: all-electronics-online.com
SKU: 831510475
Availability: InStock
Rating: 4.9 (75 reviews)

Price:	US $ 316.54/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	R-PSW6KW
Product Name:	R-Psw 6kw Low Frequency Sine Wave Home UPS
Power:	6kw
Power Factor:	0.9~1.0
Static Power Capacity:	Max 12W

Product Description

Low Frequency Sine wave Home UPS R-PSW6KW

* I/P: 220VAC or 110VAC

* O/P:220VAC or 110VAC ± 10%

* Capacity:1KW/2KW/3KW

* Output: PF 0.9-1.0, Pure sine wave

* Stand By Function

* Transfer Time <10 ms(typical)

* DC Voltage: 12/24VDC(1KW/2KW/3KW)

* *Ring Transformer ,70% less consume than EI Transformer

Key Features:

1.low frequency pure sine wave with Charger(HOME UPS)

2.Power saver Function ( Stand by)

3.High Power Factor0.9-1.

4.low DC input, 8KW,10KW, 12KW , 48VDC or 96VDC

5.adjustable charge current,50A-100Amp

6.Transfer Time 10ms. Computer will not shut off when Mains off suddenly.

7.Digital control Three stage charger, improve battery life

8.Battery Selector for charge of different battery

9.Full protection,short circuit,Overload,over Temp.,

10.Battery low/high Protection

11.LED and LCD display and alarm

12.Wall mounting

13.Rs232 communication function optional.

14.SNMP Net Agent function optional.

15.Remote control cable optional

16.LCD Display is optional

17.Adjustable charge current is option

Technical Specifications

Item	Model	R-PSW6K
Capacity	VA / Watts	6KVA/6KW
Surge rating (10s)		18KVA
Efficiency		>95% under AC mode,>88% under DC mode
Power Factor		0.9~1.0,
Static Power Capacity		Max 12W
Input	Normal voltage	220VAC/110V
	220V Voltage range	184-270V+-4%
	110V Voltage range	85-150V+-4%
	Frequency range	50Hz/60HZ -3 +5 Hz (Auto detection)
Output	Voltage (V)	220V/110V+-10%
	Frequency (Hz)	50Hz/60HZ +-0.3 Hz
	Wave form	Pure Sine Wave
	bypass without Battery	yes. AC MODE output from bypass
Transfer Time		10 ms (typical)
Overload capacity	DC Mode(SMPS load)	(110%(125%Load>150% ±10% for 20s
Overload capacity	AC Mode(SMPS load)	by breaker
Protection	Overload	Current limit under DC mode ,Breaker under AC mode
	Battery Protection	Over charge, Over discharge,DC Breaker,Alarm
	Over Temperature	Variable speed fan,LED lighting and alarm
	Back-Feed Protection	Yes
	short Circuit.	by breaker.Faul after 10 secs
Battery/Charger	AC Charge range	95-127V, 194(164)--243V
	DC input	12VDC /24VDC or 48VDC,external Battery
	Charge Voltage	12VDC system,Boost voltage 14-15.5V selectable for different Battery. The others are multiple
	Charger Current	12-75AMP difference for different mode
	Charge Manage	digital control,Three stage charger
Display	LED	Line On/ Inverter on / Fast Charger / Float charge / Over Temp. trip / Over load trip / Power Saver on
Display	LCD	Option. BAT % , INPUT VAC HZ, OUTPUT VAC HZ, LOAD %
Audible Alarm		Battery Low,Battery High,Over Temp. Over load,Fail,Over charge
Optional		RS232 Communication,SNMP Net Agent,Remote Control, Adjustable charge current
Power Saver		below 25W when enabled.loading checking 2 time/sec.
Working Environment	Temperature	0°C to 40°C
	Noise	60dB max
	Humidity	5% to 95%
PCS/CTN		1
Package Size	WxDxH (mm)	705320303
Net /Gross Weight		40/43

Trade Show:

Certification:

Foshan Kemapower Electronics Co., Ltd. is a leading manufacturer and trader of electronics and electrical equipment with over 10 years experience in this field, and with wide worldwide export in many other countries and regions as well as over 30 sales branches and agents in China. We specialize in manufacturing and supplying UPS, Power inverter, Battery charger, Battery, Solar street lamp kit, solar power system, AC voltage regulator, and other electrical power products. We are a company with ISO certificate and all of our products are designed and produced in accordance with ISO rules. The most of products have passed the CE certificate of EU, UL certificate of U. S. A.

Our products not only occupy a large share in Chinese market but also export to many other countries and regions including USA, Arabia, Middle East, Europe and Southeast Asia with a wide recognition.

Our motto:

- Take Quality First. We believe that success is in the details.

- Good Faith Utmost. We believe that quality products start with quality people.

- Specialized and professional with well skilled focus

Quality requirements of our products and services will be specified into every step of the whole process. Honesty is the most essential quality and character that every our employee shall have.

Market and sales policies

We, Kemapower Electronics Co., Ltd believe that our large success in market is based on three main policies.

- Long-term cooperation

It is our aim in establishing our relationship with every customer and helping him to win a constant development.

- Price positioning strategy

Small profits but quick turnover is our business experience. We always supply our high quality products with the best prices based on our quality criterion.

- After-sale service and support

As we all know, in the global world, where there are no limits anymore, the competition in every field is getting more thorough. High quality products based on strategy of total quality management is the key point. We believe that high quality is a must. Meanwhile, we believe that we need to differentiate ourselves in order to create customer satisfaction.

Obviously Customer satisfaction is the key word for the success. We believe that both our customers and we will achieve great successes in global market as well as in Chinese market in a win-win situation based on our abundant resource and Specialized and professional experience in the Power Products field.
