| Prod Model: |
N-C6-20KS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
4.2kw/7kw/10.5kw/14kw |
| Normal Voltage: |
220VAC |
| Frequency Range: |
40.5~55Hz |
| Wave Form: |
Pure Sine Wave |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Classification: |
Power |
| Output Capacity: |
6-20kVA |
| Brand: |
Kemapower |
Product Description
High Frequency double conversion Online UPS (N-C6-20KS)
* I/P:220VAC, L+N+G
* O/P:220VAC ± 1%
* Capacity:6KVA /10KVA /15KVA /20KVA
* Output PF: 0.9/0.8
* Wave Form: Pure sine wave
* Transfer Time:0 ms
* DC voltage: 240VDC/192VDC
* Battery: 16*7AH/20*7AH or External Battery
Key features:
1.High frequency and double conversion online UPS
2.Single phase, Power Factor 0.8/0.9
3.Fully digitized microprocessor control,Zero transfer time
4.Wide input voltage range and Advanced PFC technology
5.Self-testing when UPS startup
6.Advanced battery management
7.Automatic battery charging in UPS off mode
8.Lightning and surge protection
9.Short circuit ,overload and the others full protection
10.Battery voltage and load capacity display
11.Smart RS232 communication with monitoring software
12.SNMP card optional
13.LCD display,EPO,ECO,USB communication,Maintenance bypass optional
14.LCD with Fault Codes
15.N+X parallel design optional

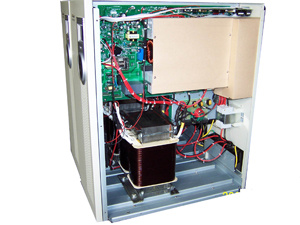

Product Show:
Technical Specifications | ITEM | MODEL | N-C6K | N-C6KS | N-C10K | N-C10KS | N-C15KS | N-C20KS |
| Capacity | VA / Watts | 6KVA/5.4KW | 6KVA/4.8KW | 10KVA/9KW | 10KVA/8KW | 15KVA / 12KW | 20KVA/16KW |
| Input | Normal voltage | 220VAC, L+N+G |
| Input Voltage range | 120V-275V+-5V |
| Frequency range | 50/60±10% |
| Input power factor | >0.99(220VAC,full R load) |
| Generator | Support generator input(Generator rating≥2*UPS rating |
| Output | Voltage range | 220VAC+-1% |
| Frequency range | 48Hz/54Hz(AC mode), 50HzX(1±0.1)(Battery mode) |
| Wave form | Pure Sine Wave |
| Transfer Time | 0 ms |
| Distortion (Full Load) linear load | < 3% |
| distortion (Ful l Load) nonlinear load | < 5% |
| Overload capacity | 105%~125% ,1min then transfer to bypass and alarm. 125%~150% 30s then transfer to bypass and alarm,1min then cut off output. >150% ,0.5s then transfer to bypass and alarm. |
| Load peak ratio | 3:1(max) |
| 192VDC Battery | Type | Maintenance free valve regulated lead acid (VRLA) battery |
| Battery voltage | 192VDC | 192VDC | 192VDC | 192VDC | 192VDC | 192VDC |
| Battery Capacity | internal 16*7AH | External | internal 16*7AH | External | External | External |
| Around backup time (Full load) | 4Mins | Depended on battery capacity | 3Mins | Depended on battery capacity |
| Around backup time (Half load) | 12Mins | 9mMins | Depended on battery capacity |
| Recharge time | 7 hours to 90%capacity | Depended on battery capacity | 7 hours to 90%capacity | Depended on battery capacity |
| 240VDC Battery | Type | Maintenance free valve regulated lead acid (VRLA) battery |
| Battery voltage | 240VDC | 240VDC | 240VDC | 240VDC | 240VDC | 240VDC |
| Battery Capacity | internal 20*7AH | External | internal 20*7AH | External | External | External |
| Around backup time (Full load) | 7Mins | Depended on battery capacity | 5Mins | Depended on battery capacity |
| Around backup time (Half load) | 20Mins | 13mMins | Depended on battery capacity |
| Recharge time | 8 hours to 90%capacity | Depended on battery capacity | 8 hours to 90%capacity | Depended on battery capacity |
| LED Display | LED | Load level / Battery level / Battery mode / Line mode / Inverter /B ypass /Over load / Fault |
| Audible Alarm | Battery Mode | Beeping every 4 seconds (re-settable) and every second when battery |
| Overload | Beeping twice every second |
| UPS Fault | Beeping Continuously |
| Bettery low/charger fault | Beeping every 1 second |
| Bypass mode | Beeping every 2 min |
| L/N inverse | Beeping every 2 min |
| Communications | RS-232 Interface | With monitoring software |
| working Environment | Working temperature | - 20ºC~40ºC |
| Humidity | 0-95% non-condensing |
| 192VDC UPS | Product size WxDxH (mm) | 260*565*715 | 260*565*490 | 260*565*715 | 260*565*490 | 260*565*715 | 260*565*715 |
| package Size WxDxH (mm) | 440*710*980 | 450*620*670 | 440*710*980 | 450*620*670 | 440*710*980 | 440*710*980 |
| N.weight(Kg) | 58 | 19 | 68.5 | 21 | 37 | 37 |
| Gross weight(Kg) | 72 | 25.5 | 85 | 27.5 | 50.5 | 50.5 |
| 240VDC UPS | Product size WxDxH (mm) | 260*565*715 | 260*565*490 | 260*565*715 | 260*565*490 | 260*565*715 | 260*565*715 |
| package Size WxDxH (mm) | 440*710*980 | 450*620*670 | 440*710*980 | 450*620*670 | 440*710*980 | 440*710*980 |
| N.weight(Kg) | 67 | 19 | 75 | 21 | 37 | 37 |
| Gross weight(Kg) | 81 | 25.5 | 93 | 27.5 | 50.5 | 50.5 |
| optional functions | ECO | optional |
| EPO | optional |
| LCD display (optional) | input / output VAC & HZ, Load Rate,Battery Rate,Temp. |
| REMARK | C*k --- Standard Type, C*Ks(-N)---- Long Time Type |
