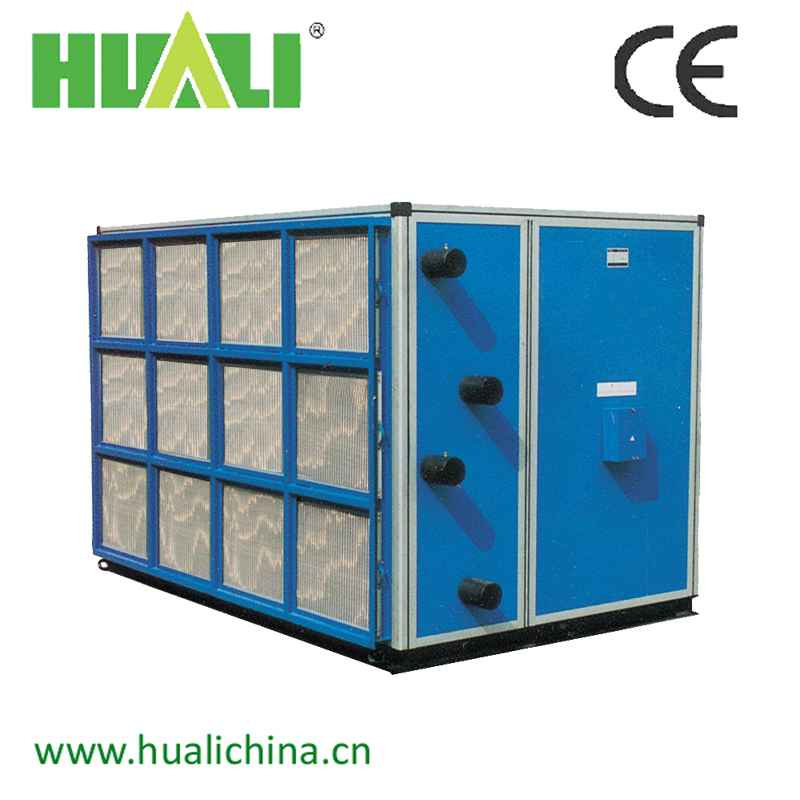

Ahu Air Handling Unit

Name: Ahu Air Handling Unit
Brand: all-electronics-online.com
SKU: 675975595
Availability: InStock
Rating: 4.4 (106 reviews)

Price:	US $ 999-2499/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HLG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	CE
Heating And Cooling:	Heating and Cooling
Certification:	CE
Usage:	Air Conditioner
Control Type:	Digital
Display Type:	LED
Material:	Stainless Steel
Type:	Ahu, Air Handling Unit

Product Description

AHU, Air handling unit
Horizontal/ceiling air handling unit
Supply air flow: 2, 000 to 70, 000m³ /hour
Cooling capacity: 13 to 780kW
Purpose:
Used in various fields such as micro-electronic, chemical plants, precision equipments, food industry, scientific research office building.

Air handling unit AHU similar types: AHU, AHU vertical expose air handling unit, HVAC AHU, industrial AHU, air AHU, ceiling AHU, horizontal AHU, vertical AHU, horizontal air handling unit, ceiling air handling unit, vertical air handling unit.

model	Air flow		Moter enternal		Outlet motor		Return air condition					New air condition					NOISE	Weight
	Rated air flow	Application	PA	Motor power	PA	Motor power	cooling capacity	heating capacity	WATERFLOW	water resistance	Inlet and outlet	cooling capacity	heating capacity	water flow	water resistance	Inlet and outlet
	Rated air flow	Application	PA	Motor power	PA	Motor power	cooling capacity	heating capacity	WATERFLOW	water resistance	Inlet and outlet	cooling capacity	heating capacity	water flow	water resistance	Inlet and outlet
	×1000CMH		Pa	kW	Pa	kW	kW		L/min	kPa	DN	kW		L/min	kPa	DN	dB(A)	kg
G-1	1	0.8~1.1	110	0.18	100	0.25	8.42	13.04	29	4.5	32	17.4	16.8	53	7.2	40	<60	80
G-1.5	1.5	1.1~1.7	120	0.25	120	0.37	11.96	18.14	39	5.7	32	25.5	24	74	10.1	40	<60	90
G-2	2	1.7~2.2	100	0.32	150	0.55	15.42	24.82	46.5	6.6	32	31.6	28.7	95.2	13	40	<60	121
G-2.5	2.5	2.2~2.7	205	0.45	180	0.55	17.14	27.59	51.7	8.4	32	38.7	35.3	116.8	16	40	<60	143
G-3	3	2.7~3.2	190	0.55	200	0.75	18.74	30.17	56.5	9.8	32	46	41.9	138.7	20.6	40	<60	154
G-3.5	3.5	3.2~3.7	205	0.75	200	1.1	23.28	37.48	70.2	11.7	40	54.9	49.9	165.5	24.2	40	<60	176
G-4	4	3.7~4.3	190	0.75	250	1.1	27.83	44.80	83.9	15.2	40	63.9	58.1	192.5	30	40	<60	187
G-5	5	4.3~5.4	205	2*0.45	250	2*.0.75	34.72	55.89	104.7	17.7	40	78.5	71.4	236.7	36.4	50	<60	220
G-6	6	5.4~6.4	190	2*.055	300	2*1.1	41.72	67.16	125.8	24.4	40	94.8	86.2	285.7	48.6	50	<60	242
G-7	7	6.4~7.4	205	2*0.75	300	2*1.1	48.69	78.39	146.8	31.5	50	111	101	334.7	59.5	50	<60	253
G-8	8	7.4~8.5	190	2*0.75	350	2*1.5	55.69	89.66	167.9	41.1	50	127.2	115.8	383.6	88.3	65	<60	297

Shenzhen Jinhuali Refrigeration Plant Co., Ltd. Was established in 2008. There are more than 150 staffs in our company, 80 % employees have a college degree or above. Our company specializes in the production, research and development, engineering design, installation, maintenance and repair of central air conditioner and refrigeration equipment. Our company adheres to the business philosophy of quality first, customer respect. We have established an honest, dedicated, pragmatic, innovative technology and management team, can more easily provide products to our clients with more advanced technology, more reasonable prices and better service, and serve to provide users a full range of integrated services in product introduction, equipment installation and commissioning, technical training and after-sales services.

We found the Domestic Market Department, Overseas Markets Department,

Research & Development Department in December, 2008.

We applied for CE certification and passed in 2009.

We applied for 6 software registration rights in 2010.

We applied for 3 utility model patents in 2011.

Our company was approved as a national high-tech enterprise on November 5, 2012.

Our company has owned customers' approval with advanced technical performance, reliable product quality, timely and thoughtful customer service since it has been founded. Our products have been widely applied in medicine, electronics, chemicals, plastics, electroplating, and other industries and commercial sites. We have agents or after sale service departments in the Chinese first-tier cities. Our products have been exported to many countries and regions of Europe, the Americas, Oceania, Africa, Asia.
