| Prod Model: |
YL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frane: |
71-132 |
| Power: |
0.25kw-5.5kw |
| Core Wire: |
Copper |
| Mounting: |
B3, B35, B5, B14 |
| Protection Class: |
IP44 |
| Insulation Class: |
F |
| Application: |
Universal |
| Operating Speed: |
High Speed |
| Number Of Stator: |
Single-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
y-δ Starting |
| Species: |
Yl |
| Number Of Poles: |
2, 4 |
| Certification: |
CE |
| Brand: |
Qizhen |
Product Description

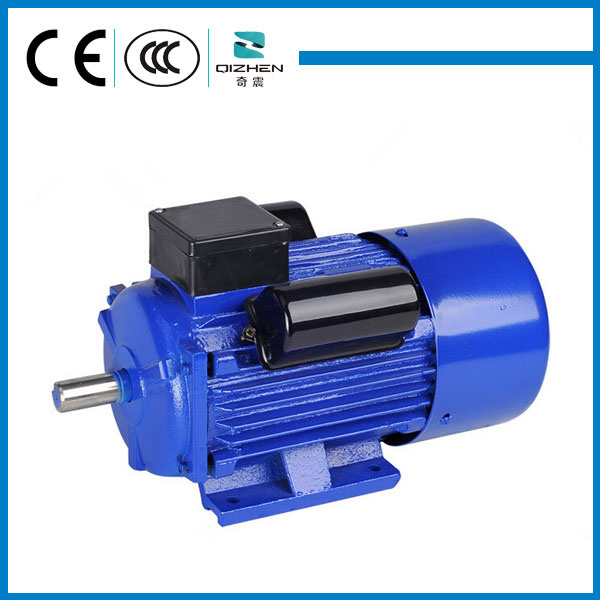

air compressor use 4KW 3HP 220V single phase two-value capacitor electric motor with CE
YL series electric motor is designed and manufactured in according with national standard, newly developed by our company with the advantages of low noise, compact structure, light weight, easy maintenance, etc.
DETAILS:
A. Core Wire: 100%Copper
B. Protection Class: IP44/IP54/IP55
C. Cooling Type: IC0141
D. Insulation Class: B or F
E. Operation Type: S1
F. Rated Voltage: 115/230,220V
G. Rated Frequency: 6 0 Hz(50Hz)
APPLICATION
These motors are widely used in air compressors, pumps, fans, refrigeration, medical instruments,small-size machines, etc, especially for occasion where only single-phase power supply is available.
TECHNICAL DATA
Model | Power ( KW) | Current ( A) | Speed (r/min ) | Efficiency Eff % | power factor | locked rotor torque
Rated torque | LRC
A |
| YL 711-2 | 0.37 | 2.2 | 2800 | 67 | 0.92 | 1.8 | 16 |
| YL 712-2 | 0.55 | 3.9 | 2800 | 70 | 0.92 | 1.8 | 21 |
| YL 801-2 | 0.75 | 4.9 | 2800 | 72 | 0.95 | 1.8 | 29 |
| YL 802-2 | 1.1 | 7.0 | 2800 | 75 | 0.95 | 1.8 | 40 |
| YL 90S-2 | 1.5 | 9.4 | 2800 | 76 | 0.95 | 1.7 | 55 |
| YL 90L-2 | 2.2 | 13.7 | 2800 | 77 | 0.95 | 1.7 | 80 |
| YL100L1-2 | 3 | 18.2 | 2800 | 79 | 0.95 | 1.7 | 110 |
| YL112M-2 | 4 | 26.6 | 2850 | 77 | 0.82 | 2.2 | 175 |
| YL 711-4 | 0.25 | 2.0 | 1400 | 62 | 0.92 | 1.8 | 12 |
| YL 712-4 | 0.37 | 2.8 | 1400 | 65 | 0.92 | 1.8 | 16 |
| YL 801-4 | 0.55 | 4.0 | 1400 | 68 | 0.92 | 1.8 | 21 |
| YL 802-4 | 0.75 | 5.1 | 1400 | 71 | 0.92 | 1.8 | 29 |
| YL 90-4 | 1.1 | 7.3 | 1400 | 73 | 0.95 | 1.7 | 40 |
| YL 90-4 | 1.5 | 9.7 | 1400 | 75 | 0.95 | 1.7 | 55 |
| YL 100L1-4 | 2.2 | 13.9 | 1400 | 75 | 0.95 | 1.7 | 80 |
| YL 112M-4 | 3 | 18.6 | 1400 | 77 | 0.95 | 1.7 | 110 |
| YL132S-4 | 4 | 27.1 | 1400 | 78 | 0.77 | 2.2 | 175 |
| YL132M-4 | 5.5 | 31.2 | 1400 | 78 | 0.79 | 2.2 | 200 |
PACKING & SHIPPING
>To avoid damp, inner layer wrapped with plastic paper
>To lessen vibration, middle layer filled with foam
> To avoild squeeze, motor are packed with plywood or wooden case
> Customized package is also accept
OUR SERVICES
> Quick competitive offer to the inquiry within 12 hours.
> We cooperate with customer to design and develop the new products.
> All necessary documents are provided.
> We are a sales team, with all technical support from engineer team.
> We respect your feed back after receive the goods.
> We provide 12-24 months warranty after goods arrive.
> We promise all spare parts available in lifeti
OUR COMPANY
| professional manufacturer with more than 17 years experience |
| Alibaba Assessed Gold Supplier and Trade Assurance |
| 500,000 to 600,000pcs of electric motor were exported annually |
| several tests to ensure the quality |
| Best production capability,best quality control,best service |
we can be your OEM manufacturer with your authorization of brand.
|
Thank you for reading !!
Welcome to contact us
Established in 2014, Taizhou Qizhen Mechanical and Electrical Technology Co., Ltd is a new well-known professional electric motor and pump manufacturer in Zhejiang, which is an enterprise integrating R&D, production, import and export. Our products are widely exported to overy fifty countries and regions such as east Europe, South America, Southeast Asia and Middle East, Africa; Meanwhile, we have kept well touch with dozens of trade companies at home and abroad for cooperation relationship.

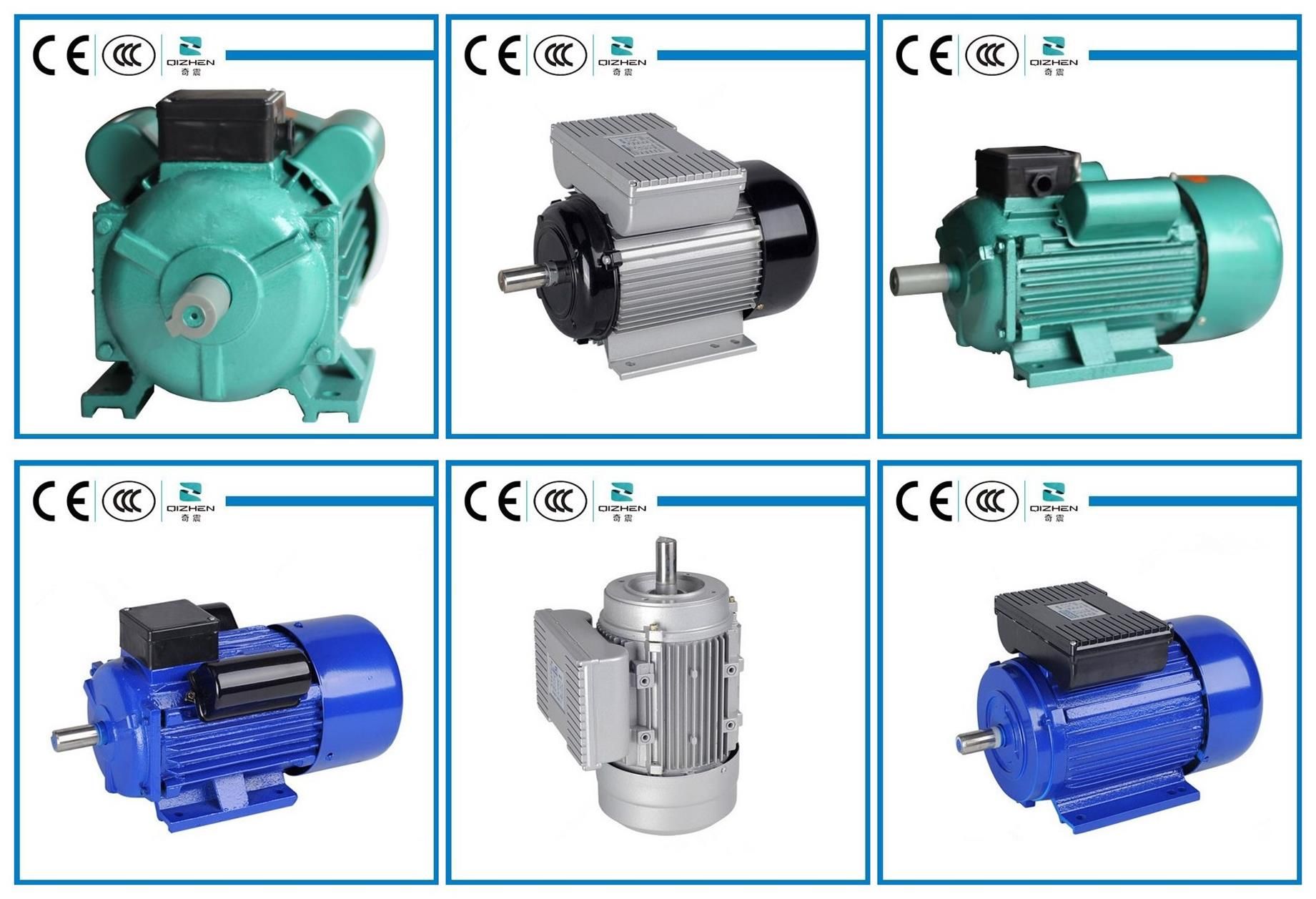

Our main products include electric motor type with Y series, Y2 series and YS series of three-Phase asynchronous electric motors, YC series, YL series, JY Series and YY series of single-Phase electric motors, and other derived electric motors, such as YCT series electromagnectrism speed regualating motors, YEJ series electromagnetic-brake motor, YVF2 variable-frequency speed regualating motor, YB2 explosion proof electric motor, YD Double-speed electric motor, YSF/YT series energy-saving induction motor and so on.
