Air Conditional Pressure Sensor

Name: Air Conditional Pressure Sensor
Brand: all-electronics-online.com
SKU: 783923125
Availability: InStock
Rating: 4.3 (83 reviews)

Price:	US $ 25-28/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QP-88
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Range:	0~200bar
Output:	0.5~4.5VDC
Accuracy:	1.0
Over Pressure:	150%Fs
Connector:	Packard
Product Name:	Small Size Pressure Transmitter/ Pressure Screw
Component:	Ceramics

Product Description

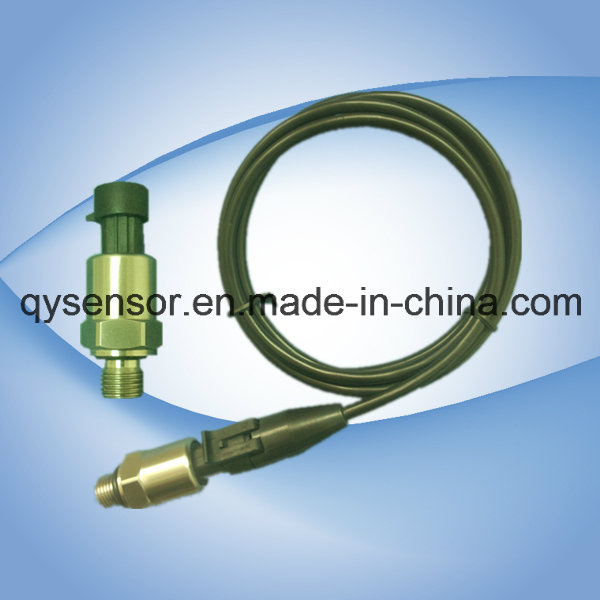

Model: QP-88 Small Size Pressure Transmitter/ Pressure Screws Sensor
Range:0~1.6......200 bar

Feature:
The silica pressure resistance technology
High accuracy, good stability
Various output scheme: 4~20mA, 0.5~4.5 Vdc

Technical Specification:

Measuring media	non-corrosive and non-conductive gases or dilute liquids
Measuring ranges	bar	0~1.6,0~2.5,0~4,0~6,0~10,0~16,0~25,0~40,0~60,0~200
Pressure type	NA	Gauge(G),Absolute(A),Sealed(S)
Excitation voltage	Vdc	12~30(Standard 24Vdc)
Output signal	mA	4~20mA
Output signal	Vdc	0.5~4.5V
Accuracy	%FS	1.0
Long-term stability	%FS /year	±0.2
Response time	ms	10
Insulation resistance	MΩ	>100 @ 50Vdc
Operating temp.	ºC	-40~+120
Pressure connection	G=G1/4;N= NPT 1/4,U=7/16-20UNF;
Electrical connection	connector	3-pin connector (Packard 12065287)
Environment protection	IP rating	IP 67
Material (wetted parts)	316L SS
Overload pressure	%FS	150

Please contact me for more details:

Chloe Shu
Sales Engineer

TEL: +86-916-2257989
MOB: +86 15336190378

http://www.qysensor.com
https://cn.linkedin.com/pub/chloe-shu/74/445/964

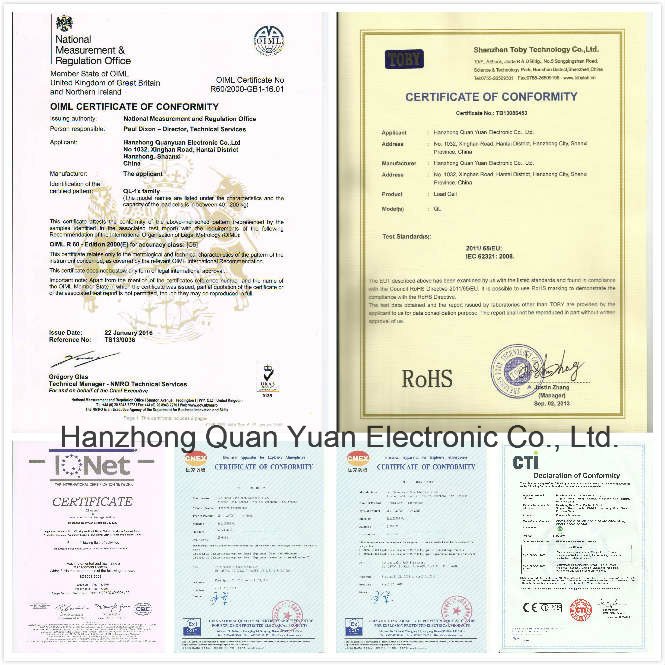

Certificates:

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
