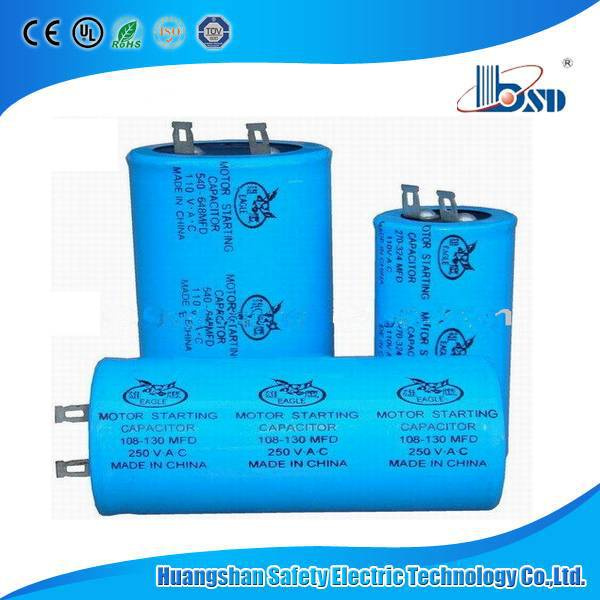

Air Conditioner CD60A AC Motor Start Capacitor

Prod Model:	CD60A
Voltage:	110-330VAC
Service:	OEM and ODM Service
Terminals:	Pins and Wire Leading
Packing:	10PCS in One Box and 50PCS in One Carton
Warranty Time:	2 Years and 3 Years
Type:	Aluminum Electrolytic Capacitor
Application:	Motor
Package Type:	Surface Mount
Capacitance:	>100uf

Product Description

Specifications
1.Used widely in motors,aircompressor,water pump etc
2.High performance & Long life Capacitor.
3. work well even in high temp.
CD60-A MOTOR START CAPAClTORS
Main Feature:
1.Round Aluminum sealed case with PVC sleeve
2.Voltages from 110V AC to 330V AC
3.UL Recognized Capacitors
Applicable Scope :
50Hz/60Hz single-phase AC motor , air conditioning, refrigerator compressor, air condition etc and so on each kind of single-phase AC motor.
Case size:

D1±1mm	26	30	34	35	40	42	45	50	55
H2±2mm	40-60	45-80	45-100	45-100	55-100	55-100	60-100	80-100	100


Technical Specifications:
Working Temperature Range:-25~+55°C
Rated Voltage Range:110~330V AC
Rated Capacitance Range:50~1000μf
Rated Permissible Tolerance of Capacitance:± 20%
Tangent of Loss Angle (tgs(20"C,100Hz)):tgs≤0.10,tgs≤0.15
Performance:+55"C 110~165VAC, on 1 second, off 59 seconds,30000times
          +55°C,220~330VAC, On l second, off 59 seconds,15000times
   changing rate of capacitance:±15%within original measuring
          value tangent of loss angle:=0.20
Withstand Voltage Between TerminaIs:applied 1.2 times working voltage,
for 2 seconds. without break down Withstand Voltage Between Terminal and
case:2000VAC, for l0 seconds, without breakdown.
