| Prod Model: |
HLLH~16D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE |
| Heating And Cooling: |
Heating and Cooling |
| Usage: |
Ventilation |
| Certification: |
CE |
| Control Type: |
Digital |
| Type: |
Heat Pump |
| Display Type: |
LED |
| Material: |
Stainless Steel |
| Brand: |
Huali |
Product Description

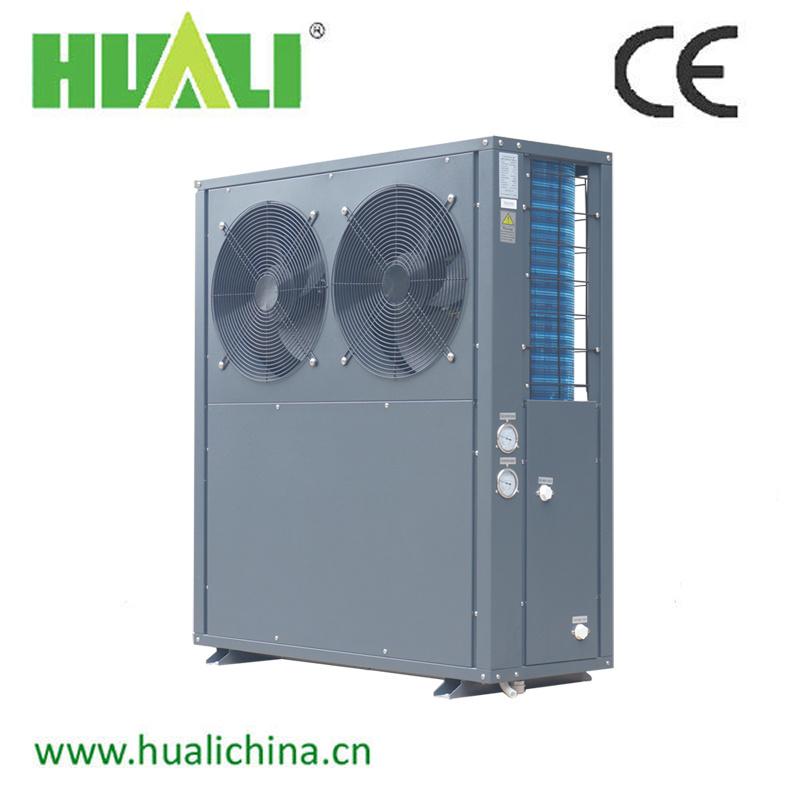

Air to water heat pump
1, Energy-efficient: The ratio output against input is coefficient of performance (COP). Normally it can be more than 4.
2, Environmental protection: There is no waste water, waste residue, used heat, the waste gas discharged. It will not produce any pollution to the atmosphere and environment.
3, Modular controlling function: As per the actual requirements, one or more units can be added to combine a heat water supply system, which are controlled by modular. `
4, Automatic energy balance: According to ambiguous controlling principle, the unit checks the load dynamically. When the unit reaches the setting temperature, the unit keeps the load in balance.
| Model HLLH- | 8S | 9S | 16D | 20D | 33D | 40D | 43D | 57D | 76D |
| Heating input power | Heating mode | KW | 2.03 | 2.29 | 4.09 | 4.9 | 8.24 | 9.84 | 10.6 | 14.2 | 18.8 |
| Heating capacity | KW | 8.1 | 9.1 | 16.4 | 19.5 | 32.8 | 39.1 | 43.4 | 57.2 | 75.6 |
| COP |
| 3.99 | 3.97 | 4.01 | 3.98 | 3.98 | 3.97 | 4.09 | 4.03 | 4.02 |
| Heating current | A | 10.2 | 4.5 | 7.5 | 8.5 | 14.5 | 17 | 20 | 26 | 33 |
| Water flow when heating | L/h | 2000 | 2200 | 4000 | 4600 | 8000 | 9200 | 10500 | 13800 | 18500 |
| Cooling input power | Cooling mode | KW | 2.32 | 2.62 | 4.71 | 5.42 | 9.42 | 10.6 | 12.3 | 15.9 | 22.3 |
| Cooling capacity | KW | 6.3 | 7.1 | 12.8 | 15.1 | 25.6 | 29.6 | 33.4 | 43.8 | 60.2 |
| EER |
| 2.72 | 2.71 | 2.72 | 2.79 | 2.72 | 2.79 | 2.72 | 2.75 | 2.70 |
| Cooling current | A | 10.70 | 4.80 | 8.00 | 9.30 | 16.00 | 18.50 | 22.00 | 28.00 | 36.00 |
| Water flow | L/h | 1400 | 1600 | 2800 | 3400 | 5600 | 6700 | 7500 | 10200 | 13500 |
| Water pressure drop | K pa | ≥ 70 | ≥ 70 | ≥ 70 | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 70 | ≥ 70 | ≥ 70 |
| Level of protection |
| IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
| Electric shock proof grade |
| I | I | I | I | I | I | I | I | I |
| Noise | db | 50 | 50 | 60 | 60 | 65 | 65 | 65 | 75 | 75 |
| Net weight | kg | 96 | 96 | 140 | 144 | 280 | 300 | 372 | 482 | 582 |
| Gross weight | kg | 104 | 104 | 150 | 154 | 295 | 320 | 412 | 532 | 642 |
| Pipe size | mm | 25 | 25 | 25 | 25 | 32 | 32 | 50 | 50 | 65 |
| Power supply | V | 220V/50Hz/1ph | 380V/50Hz/3ph |
| Power supply L wire line | Mm2 | 2.5 | 2.5 | 4 | 6 | 6 | 6 | 10 | 10 | 16 |
| Power supply N wire line | Mm2 |
| 1.5 | 2.5 | 2.5 | 2.5 | 2.5 | 4 | 4 | 6 |
| Dimension | mm | 830*490*1160 | 830*490*1160 | 1110*490*1260 | 1110*490*1260 | 1450*740*1150 | 1580*855*1200 | 1500*800*1515 | 1850*1000*1950 | 2000*1100*2080 |
| Packing dimension | mm | 890*550*1290 | 890*550*1290 | 1170*550*1390 | 1170*550*1390 | 1510*800*1280 | 1640*915*1430 | 1560*860*1645 | 1910*1060*2100 | 2060*1160*2230 |
| Compressor model/ quantity |
| ZW30KAE*1 | ZW34KAE*1 | ZW61KAE*2 | ZR72KCE*2 | ZW61KAE*2 | ZR72KCE*2 | ZR81KCE*2 | ZW108KAE*2 | VR144KSE*2 |
Shenzhen Jinhuali Refrigeration Plant Co., Ltd. Was established in 2008. There are more than 150 staffs in our company, 80 % employees have a college degree or above. Our company specializes in the production, research and development, engineering design, installation, maintenance and repair of central air conditioner and refrigeration equipment. Our company adheres to the business philosophy of quality first, customer respect. We have established an honest, dedicated, pragmatic, innovative technology and management team, can more easily provide products to our clients with more advanced technology, more reasonable prices and better service, and serve to provide users a full range of integrated services in product introduction, equipment installation and commissioning, technical training and after-sales services.
We found the Domestic Market Department, Overseas Markets Department,
Research & Development Department in December, 2008.
We applied for CE certification and passed in 2009.
We applied for 6 software registration rights in 2010.
We applied for 3 utility model patents in 2011.
Our company was approved as a national high-tech enterprise on November 5, 2012.
Our company has owned customers' approval with advanced technical performance, reliable product quality, timely and thoughtful customer service since it has been founded. Our products have been widely applied in medicine, electronics, chemicals, plastics, electroplating, and other industries and commercial sites. We have agents or after sale service departments in the Chinese first-tier cities. Our products have been exported to many countries and regions of Europe, the Americas, Oceania, Africa, Asia.
