Al/XLPE/Cts/PVC, Power Cable, 6/10 (12) Kv, 3/C (IEC 60502-2)

Prod Model:	AL/XLPE/CTS/PVC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	6/10 (12) Kv
Number Of Cores:	3
Class Of Conductor:	2
Size:	25-400 mm2
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC Cable
Insulation Material:	XLPE
Certification:	CCC
Wire Core Material:	Aluminum
Model:	Al/XLPE/Cts/PVC
Brand:	Boan

Product Description

Al/XLPE/CTS/PVC, Power Cable, 6/10 (12) KV, 3/C (IEC 60502-2)
The cable design conforms to IEC 60502 part 2. However if requested, we can separately offer guaranteed technical particulars for cables as per different international specifications or specific customer needs.

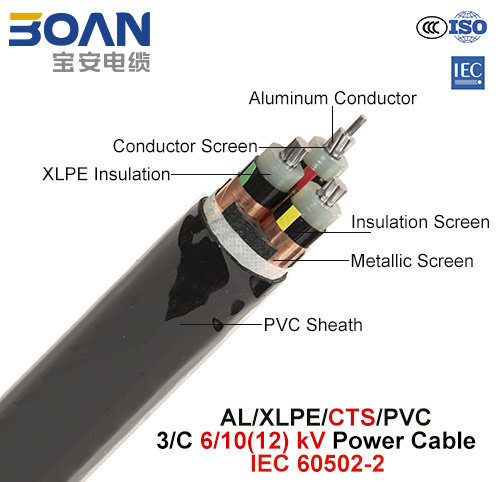

CONSTRUCTIONAL FEATURES

Conductor
Aluminum Conductors upto 1000 sq mm will be circular compacted & stranded and shall comply with IEC-60228 Class 2.

Conductor screen
This will be an extruded layer of semiconducting XLPE applied under simultaneous triple extrusion process over the conductor along with the insulation and the insulation screen.

Insulation
This will be an extruded layer of insulating grade XLPE applied over conductor screen under triple extrusion process along with conductor screen and insulation screen.

Insulation screen
This will be a layer of semiconducting XLPE which will be applied by tripe extrusion process over the insulation.

Metallic screen
It will consist of a layer of copper tape applied helically with overlap over insulation screen. Other combinations of metallic screens as per customer's requirement can also be provided on request.

Outer sheath
An extruded layer is applied over the armour in case of armoured cables and over the laid up cores in case of unarmoured cables. Outer sheath material can be either PVC of grade ST2 or PE of grade ST7 as per IEC-60502 Part 2.

Section	Conductor diameter	Conductor weight	Insulation thickness	Outer sheath thickness	Cable overall diamete	Cable weight	Minimum bending radius of cable (During installation)	DC resistance of conductor at 20 °C (Maximum)
mm2	mm	kg/km	mm	mm	mm	kg/km	mm	ohm/km
25	5.9	203	3.4	2.2	39.0	1345	585	1.20
35	6.9	280	3.4	2.3	41.0	1540	615	0.868
50	8.1	381	3.4	2.4	44.0	1780	660	0.641
70	9.7	553	3.4	2.5	47.5	2135	713	0.443
95	11.4	764	3.4	2.6	51.5	2550	773	0.320
120	12.9	965	3.4	2.7	55.0	2940	825	0.253
150	14.3	1186	3.4	2.8	58.0	3340	870	0.206
185	16.0	1500	3.4	2.9	62.0	3875	930	0.164
240	18.4	1967	3.4	3.1	67.5	4695	1013	0.125
300	20.6	2445	3.4	3.3	73.0	5515	1095	0.100
400	23.3	3126	3.4	3.5	80.0	6725	1200	0.0778
