Alcad Pocket Plate Ni-CD Battery

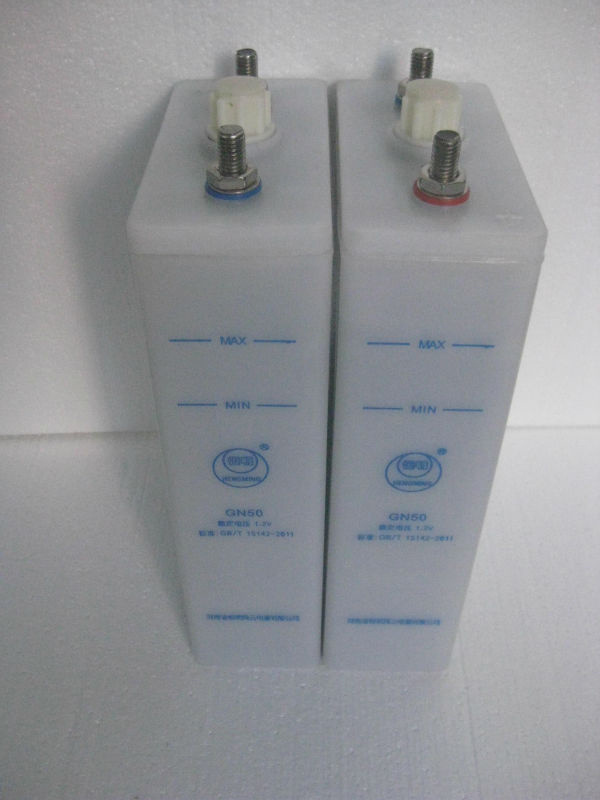

Name: Alcad Pocket Plate Ni-CD Battery
Brand: all-electronics-online.com
SKU: 724379752
Availability: InStock
Rating: 4.8 (98 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GN120
Certificate:	IEC60623 /Ce/ ISO9001/Crcc
Container:	ABS/PP
Type:	Ni-CD Battery
Usage:	Lighting
Nominal Voltage:	1.2V
Discharge Rate:	Low Discharge Rate
Rechargeable:	Chargeable

Product Description

Hengming pocket plate type ni-cd storage battery is designed to meet different discharge requirements. They are classified into three types KPH type (High discharge rate cells), KPM (Medium discharge rate cells) and KPL type (Low discharge rate cell). These batteries conform to IEC 60623, CE standard and other International standards.

Application:
KPL ,KPM,KPH,KPX batteries are designed for a wide variety of stationary indstria applications such as power back-up,engine starting an bulk energy sorage.

Series	Discharge rate	Plate type	Application areas
KPX	Ultra High rate	Sintered plate	AGV; starting power; operating power of electrical system;railway, etc.
KPH	High rate	Pocket plate	Staring power; UPS; etc.
KPM	Medium rate	Pocket plate	Starting power; operating power of electric system; UPS etc.
KPL	Low rate	Pocket plate	Emergency lighting; communication; vessels; backup power of locomotive; energy storage of wind and solar power generation; etc.

Ni-Cd backup power batteries usually charge with constant current and charge 8 hours with 0.2C5A.
Floating charge also can be used, and the floating charge voltage of different series as follow:

Series	Floating charge voltages(V/pc)	Equalizing charge voltage(V/pc)
KPX	1.38~1.40	1.46~1.48
KPH	1.42~1.45	1.55~1.60
KPM	1.42~1.45	1.55~1.60
KPL	1.48~1.50	1.55~1.60

Classification of Hengming Pockect Type Nickel Cadmium Battery

Series	Features
KPL/GN Low discharge rate Nickel Cadmium battery	The battery shall apply to the applications with the low discharge rate at 0.5ItA and the discharge time for 3h to 5h, such as telecommunication, back-up power, railway lighting power and other emergency back-up power supplies. Rated capacity range:10~1200Ah
KPM/GNZ Medium discharge rate Nickel Cadmium battery	The battery shall apply to the applications with the medium discharge rate at 0.5ItA~3.5ItA and the discharge time for 30min to 5h, such as railway DC power supply, UPS switch transition. Rated capacity range:10~1100Ah
KPH/GNG High discharge rate Nickel Cadmium battery	The battery shall apply to the applications with the high discharge rate at 3.5ItA~7ItA and the discharge time for no more than 1h, such as UPS switch transition, railway emergency back-up and start-up power supply. Rated capacity range:10~500Ah

Why choose us?
Hengming is a professional Nickel Cadmium battery manufacturer with over 30 year's history, the

annual output of the Ni-Cd battery amounts to 300 million Ah. All of our products have been certified

by CE / INTERTEK /IEC60623 / ISO9001/CRCC international authentication.

Contact information
Ms.KOKO Mobile:+86 15836081629/Tel:+86 0373-2688227

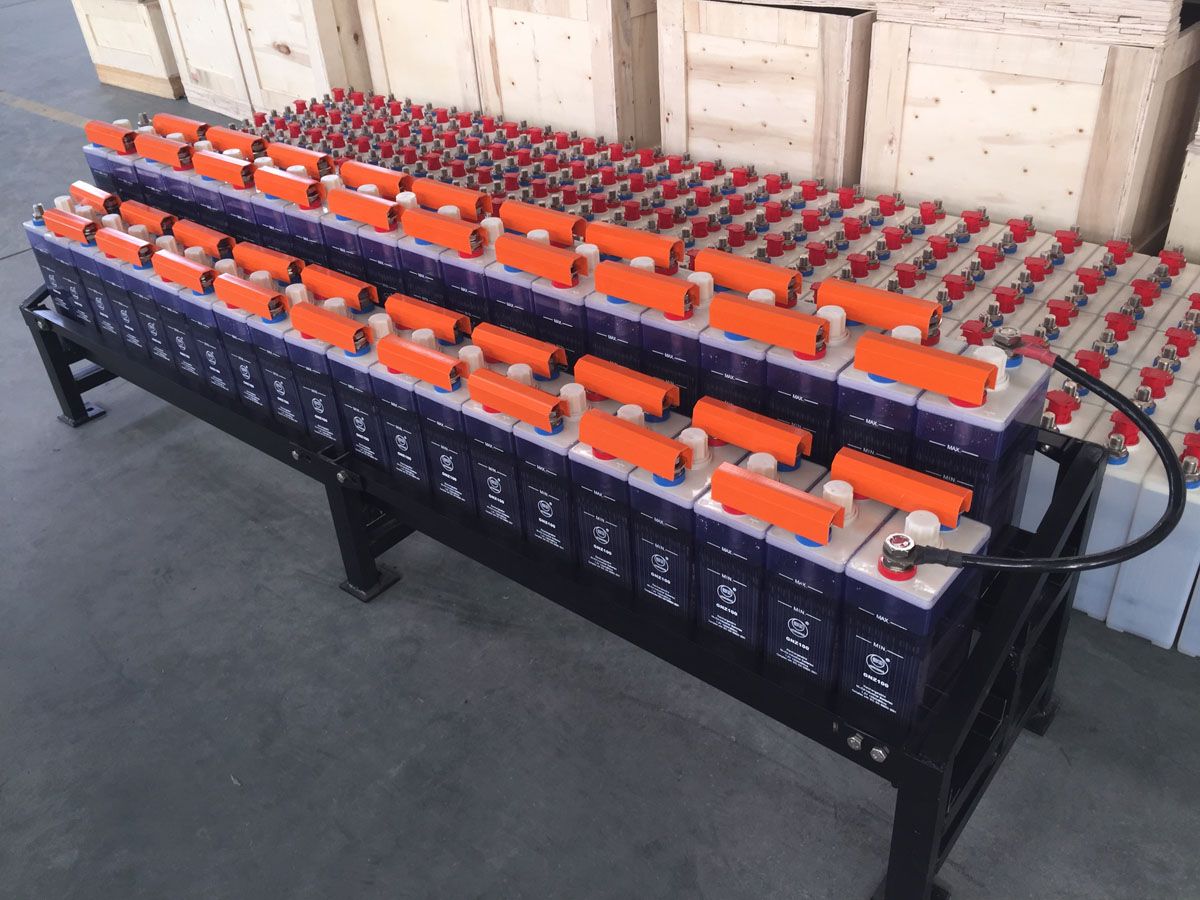

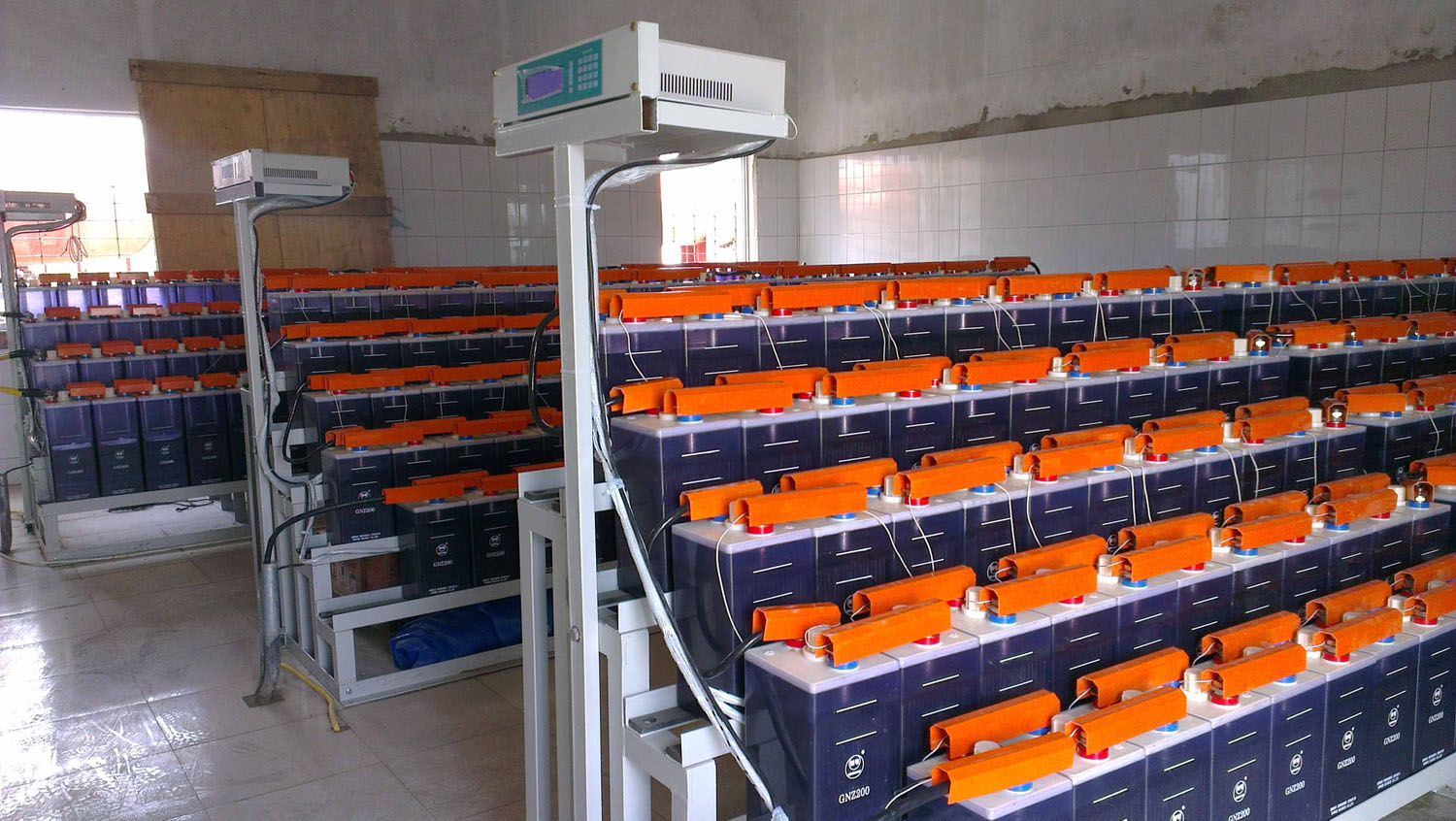

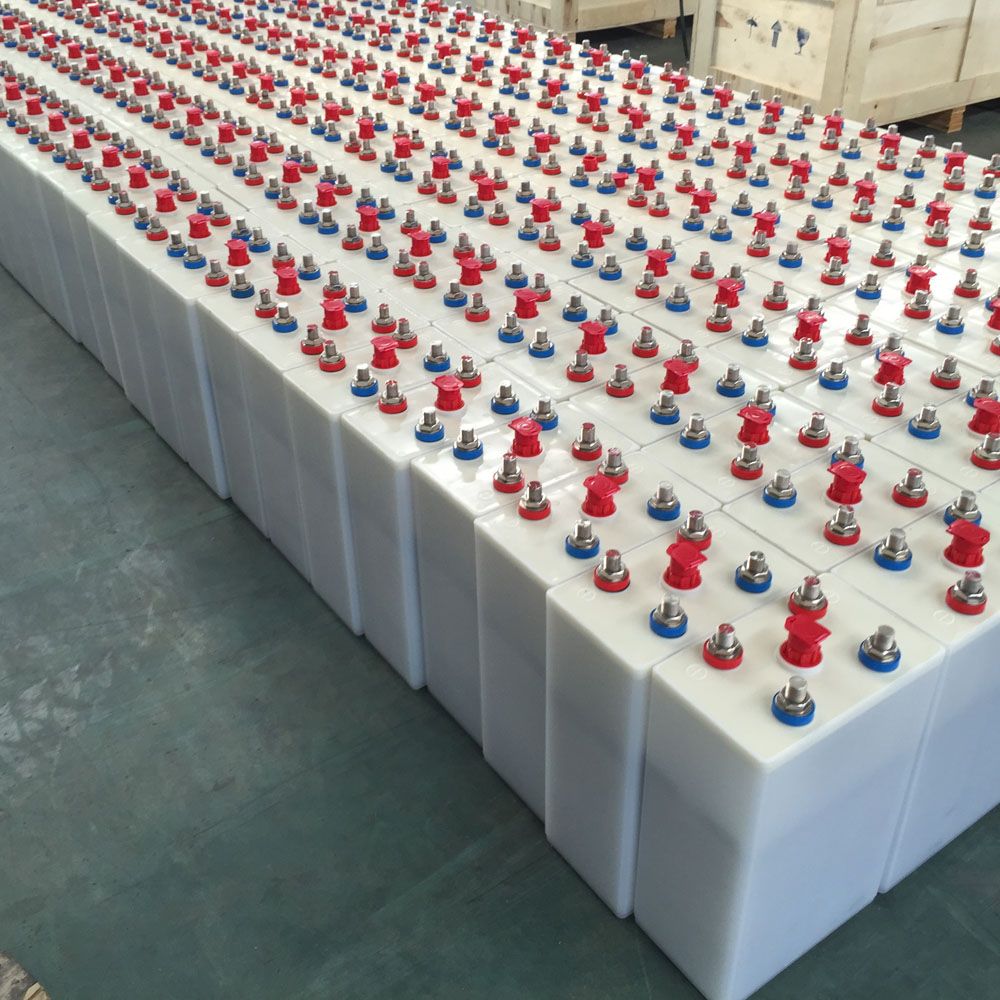

Relevant Photos

HengMing Group is a high-tech company in Henan with more than $10 million in capital 30 years of experience. Our factory covers an area of 16, 000 square meters manned by 280 workers including 10 professional engineers. Hengming-branded products are popular in mainland China.

We offer Ni-CD batteries in KPL, KPM, KPH, KPX series. They are widely used in the Railway signaling, Alarms, Telecommunications, UPS, DC power sources, Power plant, Engine starting, Emergency back-up power, etc.

We offer Ni-Fe solar batteries in TN series. They are widely used for Solar energy, On-gird off-gird PV power system, specially suitable for solar photovoltaic applicationsrenewable energy storage applications.

We offer Ni-MH pocket type batteries, capacity range from 10Ah to 1200Ah.

HengMing's products have been exported to more than 20 countries and regions including Singapore, South Korea, Malaysia, the United States, Spain, Iran, Mexico, Pakistan, Bangladesh, Indonesia, Poland, Turkey, etc
