All-Dielectric Self-Supporting Armored Fiber Optical Cable (ADSS)

Prod Model:	ADSS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	G652D
Fiber Count:	2-288
Central Strength Member:	FRP Central Strength Member(Non-Metallic )
Material Of Jacket:	PE/Lszh/Flame Retardant PE/Anti-Rodent PE
Tube:	Loose Tube Stranded /Sz Stranded
Jacket:	Double Jackets Protection
Fiber:	Single Mode
Bending Radius:	Static 10*Cable-Diameter: Dynamic 20*Cable-Diamete
Applications:	Aerial
Certificate:	ISO9001 Tlc RoHS
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	Other
Core:	2-288
Brand:	Efon
Sheath Material:	HDPE/Lszh Sheath/Flame Retardant Sheath/Anti-Roden

Product Description

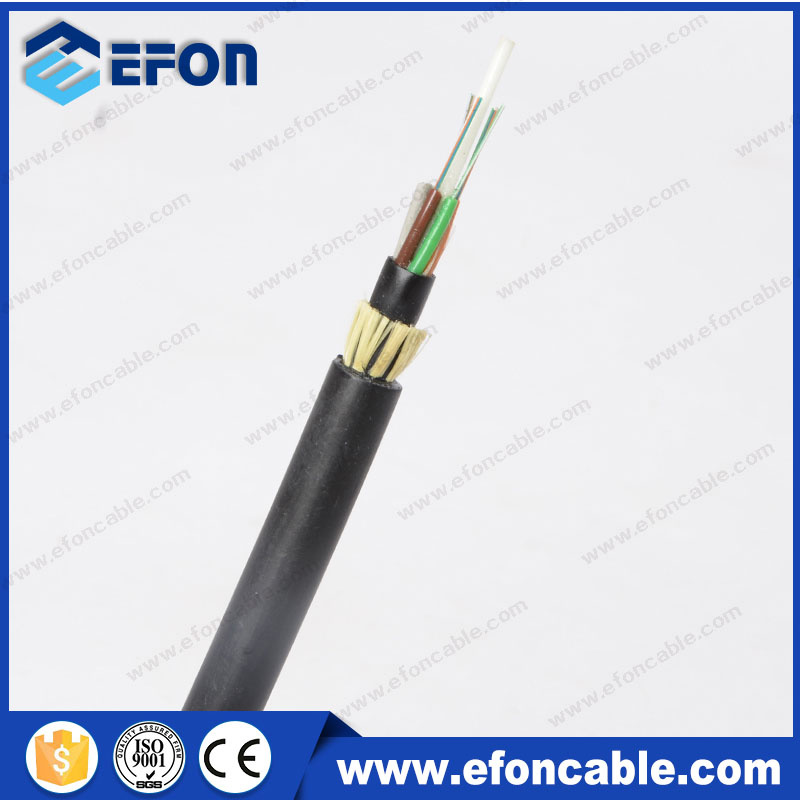

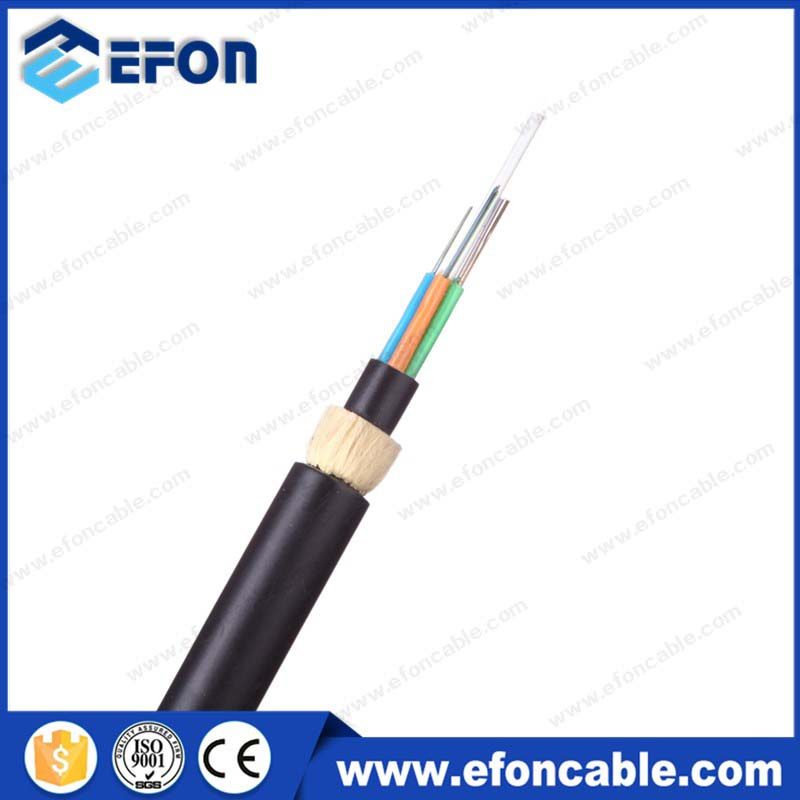

                                  All-Dielectric Self-supporting Armored Fiber Optical Cable (ADSS)

Product Description:

ADSS optical cable 's loose tubes are made of high modulus plastics (PBT) and filled with a water resistant filling gel. Loose tubes are stranded around the non-metallic central strength member (FRP), cable core is filled with cable filling compound. Polyethylene (PE) extruded as inner sheath, and then aramid yarns or glass yarns are applied over inner sheath to enhance tensile strength for special application. The cable is completed with PE outer sheath.

  Feature

High quality optical fiber provides good transmission performance
Accurate fiber excess length control ensures excellent mechanical and temperature performance
Special filling gel filled loose tubes provide perfect optical fiber protection
All section water blocking present reliable performance of moisture-proof and water block
High Young's modulus fiber reinforced plastic (FRP) as central strength member gives high tensile strength
All dielectric structure,light weight, easy installation, good electromagnetic resistance, suitable for operating  in electrical system or frequently lighting areas
Strict craft and raw material enable lifespan over 30 years
Performance

  Application: Aerial
  Operating temperature: -30~+70°C
  Bending radius: Static 10×D : Dynamic 20×D



Test Centre


Packaging





Products Standard:

Mechanical Performance :
Max Tension Performance : IEC 60794-1-2-E
Max. Operation Tension : IEC 60794-1-2-E1
Crush Test : IEC 6079 -1-2-E3
Impact Test : IEC 60794-1-2-E4
Repeated Bending : IEC 60794-1-2-E6
Torsion Test : IEC 60794-1-2-E7
Cable bend : IEC 60794-1-2-E11A
Attenuation Coefficient : ITU-T G.652
Structural Test : IEC-60793-1-20
Environmental Performance
Temperature Cycling : IEC 60794-1-2-F1
Water Penetration : IEC 60794-1-2-F5B
Filing Compound Flow : IEC 60794-1-E14

Structrure and Technical Specifications

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fibers per Tube	No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
					Short Term	Long Term	Short Term	Long Term
2 ~36	12.1	125	6	6	3000	1000	3000	1000
36 ~72	13.9	135	12	6	3000	1000	3000	1000
74 ~96	16.0	170	12	8	3000	1000	3000	1000
98 ~120	16.6	210	12	10	3000	1000	3000	1000
122 ~144	18.2	245	12	12	3000	1000	3000	1000
144 ~216	18.3	250	12	18 (2 layers)	3000	1000	3000	1000
>216	Available upon customer's request
