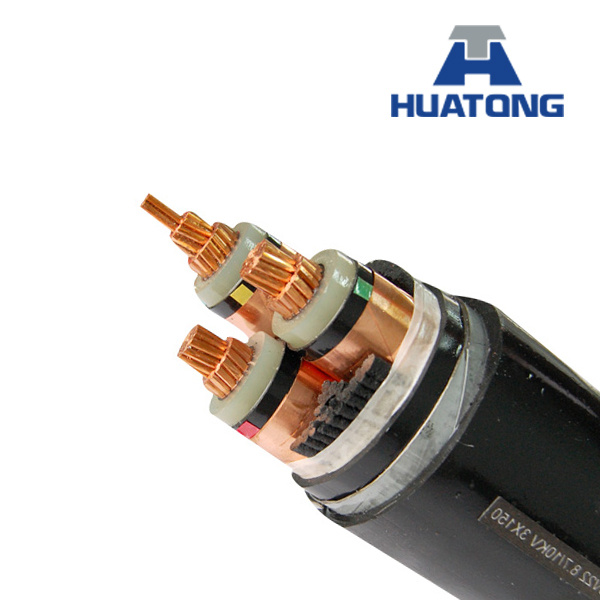

| Prod Model: |
VLV, VLY |
| Factory Area: |
100000m2 |
| Experience: |
20 Years |
| Size Range: |
1.5-400m2 |
| Delivery Length: |
Accord with The Request |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Wire Core Material: |
Almininum |
| Model: |
Vlv, Vly |
| Brand: |
Huatong |
Product Description
Executive Standard
The above cable conforms to GB/T12706-2008,Which is equal to IEC60502-2004,The flame-retardant property conforms to GB/T 18380.3-2008,which is equal to IEC60332-2004.
1.Application properties
1)Rated voltage Uo/U:0.6/1 kV,1.8/3 Kv.
2)Cable Conductor long-term permission operatin temperature: PVC insulated is 75°C,the short-circuits (the longest time does not surpass 5S),The max temperature of conductor does not surpass 160°C.
3)The ambient temperature at cable laying should not be lower than 0°C: when is lower than 0°C,the cable should be preheated,the cable laying will not be limited by dropping variance level.
4)Bending radius of cable laying:
Single core cable >20 times of outer diam.of cable
Multi-core>15 times of outer diam.of cable
2.Product Usage
The products applies to the lines of 0.6/1kV rated voltage:The products is mainly used for electric transmission and transportation in high buildings,subways,power stations,entertainment place,industrial enterprises and sea pertrol platform etc,where a high intensity of cable laying and a strong flame-retardant ability are required.
3.Qulification
If 0.6/1kV cable converted into the resistance value at 20°C,the insulation resistance of finished cable should not be lower than 36.7 Monhm/km,finished cable should be able to bear a dielectric pressure test of the AC 50 hz,3.5KV test voltage,and it should keep unbroke down for a stable lasting test time of 5 mins.
There should be D.C Voltage-withstand test after installation ,suggested test voltage:4 Uo(Uo stands for conductor voltage to ground and is 0.6KV for this products) suggested time:15 mins,flame-retardant property conforms to the verical bunchy burning requirements of GB/T18380.3-2008 and IEC 60332-2004.
4.PVC Insulation Electric Cable
| TYPE | Description of Cable
| Main Applications
|
| CU core | AL core |
| VV | VLV | Copper/Aluminium core,PVC insulated,PVC sheathed power cable | Non-armoured PVC cable are suited for laying indoors,In cable trench,On cable racks and in pipes. Unable bear external pressures and tensions. |
| VY | VLY | Copper/Aluminium core,PVC insulated,PE sheathed power cable |
| VV22 | VLV22 | Copper/Aluminium core,PVC insulated,steel tape armored,PVC sheathed power cable | Steel-tape armoured PVC cables are suited for vertical burial.Can bear moderate positive pressures,Unable bear tension forces. |
| VV23 | VLV23 | Copper/Aluminium core,PVC insulated,steel tape armored,PE sheathed power cable |
| VV32 | VLV32 | Copper/Aluminium core,PVC insulated,thin steel wire armored,PVC sheathed power cable | Thin steel wire armoured PVC cables are used in case of great difference of levels or vertical installation and Can do vertical burial.Can bear moderate positive pressures and tension forces. |
| VV33 | VLV33 | Copper/Aluminium core,PVC insulated,thin steel wire armored,PE sheathed power cable |
| VV42 | VLV42 | Copper/Aluminium core,PVC insulated,thick steel wire armored,PVC sheathed power cable | Thick steel wire armoured PVC cables are suited for vertical installation and can be laid water or sea-bottom.Can bear greater positive pressures and tension forces. |
| VV43 | VLV43 | Copper/Aluminium core,PVC insulated,thick steel wire armored,PE sheathed power cable |
Number of Cores & Nominal Cross-section Area
| Number of Cores | 1 | 2 | 3 | 3+1 | 4 | 3+2 | 4+1 | 5 |
| Section Area (mm2) | 4 - 500 | 2.5 - 500 | 2.5 - 300 | 4 - 300 | 2.5 - 300 | 2.5 -300 | 4 - 300 | 2.5 - 95 |
5.Direct in ground:
1)When the single core cables are installed separately, the distance between the cable's center is 2 times of the cable diameter.
2)Ambient temperature: 25ºC.
3)Max. temperature of conductor: 70ºC.
4)Soil thermour resistivity: 1.0ºC. m/w.
5)Depth: 0.7m
6)Rating factors under different ambient temp.:
| Air temperature | 15ºC | 20ºC | 30ºC | 35ºC |
| Rating factors | 1.11 | 1.05 | 0.94 | 0.88 |
