| Prod Model: |
ALP/AM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Ral 7032/Ral 7035/Customize |
| Material: |
Cold-Rolled Sheet Steel |
| Thickness: |
1.5mm&2.0mm |
| Type: |
Power |
| Structure: |
Protection |
| Certification: |
ISO9001:2008,RoHS |
| Application Range: |
Electrical Distribution |
| Brand: |
Porta |

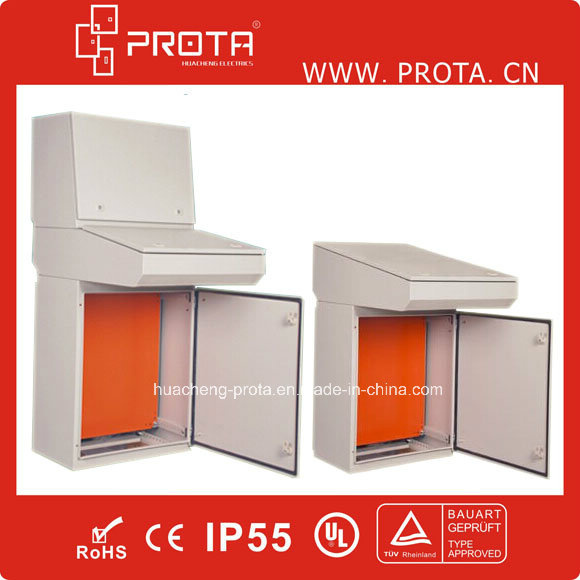

Product Description
Standard Configuration
1. One galvanized mounting plate.
2. The front and the back doors, the operation board can be opened, with hydraulic support door stays.
3. Color: RAL 7032 or RAL 7035
Material: cold-rolled sheet steel
Door: 2.0mm
Body: 1.5mm
Mounting Plate: 2.5mm
4. Surface: the whole cabinet is phosphate coated and the exterior is epoxy thermosetting textured powder-coated.
5. Protection degree: IP54
Features of craftsmanship
1. The doors of the front and back as well as the operation panels can be opened, which are very convenient for installation;
2. The mounting plate can be moved forward and backward, which is more flexible for the internal installation
3. The door is installed with panel strips with pilot holes, which is welded to both sides inside the front door and the upper and the down position of the operation cover board. Moreover, it makes the installation of door and cover board more flexible, convenient for cables, via the installation strips
4. The PU foam sealing gasket inside the door ensures the protection degree of the cabinet.
5. The door can be switched by left and right.
6. The original operation panel has the hydraulic support door stays, which greatly improves the class of the cabinets, and embodies the humanized design.

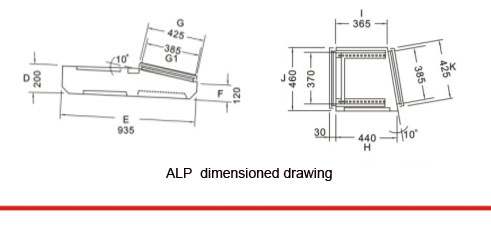

Selection table
| ALP series control desk(include:AE,LE,PE) |
|
|
|
|
|
|
| AE(1.5mm) | LE(2.0mm) | PE(1.5mm) |
| MODEL | A | B | C | D | E | F | G | H | I | J | K |
| ALP41 | 600 | 770 | 400 | 200 | 835 | 120 | 425 | 370 | 295 | 460 | 425 |
| ALP42 | 800 | 770 | 400 | 200 | 835 | 120 | 425 | 370 | 295 | 460 | 425 |
| ALP43 | 1000 | 770 | 400 | 200 | 835 | 120 | 425 | 370 | 295 | 460 | 425 |
| ALP44 | 1200 | 770 | 400 | 200 | 835 | 120 | 425 | 370 | 295 | 460 | 425 |
| ALP45 | 1600 | 770 | 400 | 200 | 835 | 120 | 425 | 370 | 295 | 460 | 425 |
| ALP51 | 600 | 770 | 500 | 200 | 935 | 120 | 425 | 440 | 365 | 460 | 425 |
| ALP52 | 800 | 770 | 500 | 200 | 935 | 120 | 425 | 440 | 365 | 460 | 425 |
| ALP53 | 1000 | 770 | 500 | 200 | 935 | 120 | 425 | 440 | 365 | 460 | 425 |
| ALP54 | 1200 | 770 | 500 | 200 | 935 | 120 | 425 | 440 | 365 | 460 | 425 |
| ALP55 | 1600 | 770 | 500 | 200 | 935 | 120 | 425 | 440 | 365 | 460 | 425 |
| AM series control desk(include:AE,ME) |
|
|
|
| MODEL | AE(1.5mm) | ME(2.0mm) |
| A | B | C | O | L | N | M |
| AM41 | 600 | 770 | 400 | 252 | 650 | 123 | 612 |
| AM42 | 800 | 770 | 400 | 252 | 650 | 123 | 612 |
| AM43 | 1000 | 770 | 400 | 252 | 650 | 123 | 612 |
| AM44 | 1200 | 770 | 400 | 252 | 650 | 123 | 612 |
| AM45 | 1600 | 770 | 400 | 252 | 650 | 123 | 612 |
| AM51 | 600 | 770 | 500 | 275 | 750 | 123 | 712 |
| AM52 | 800 | 770 | 500 | 275 | 750 | 123 | 712 |
| AM53 | 1000 | 770 | 500 | 275 | 750 | 123 | 712 |
| AM54 | 1200 | 770 | 500 | 275 | 750 | 123 | 712 |
| AM55 | 1600 | 770 | 500 | 275 | 750 | 123 | 712 |
