| Prod Model: |
PT |
| Type: |
Distribution Metering Box |
| Structure: |
Protection |
| Certification: |
ISO9001:2008,RoHS |
| Application Range: |
Electrical Distribution |
| Shell Protection Grade: |
IP65 |
| Brand: |
Prota |
Product Description

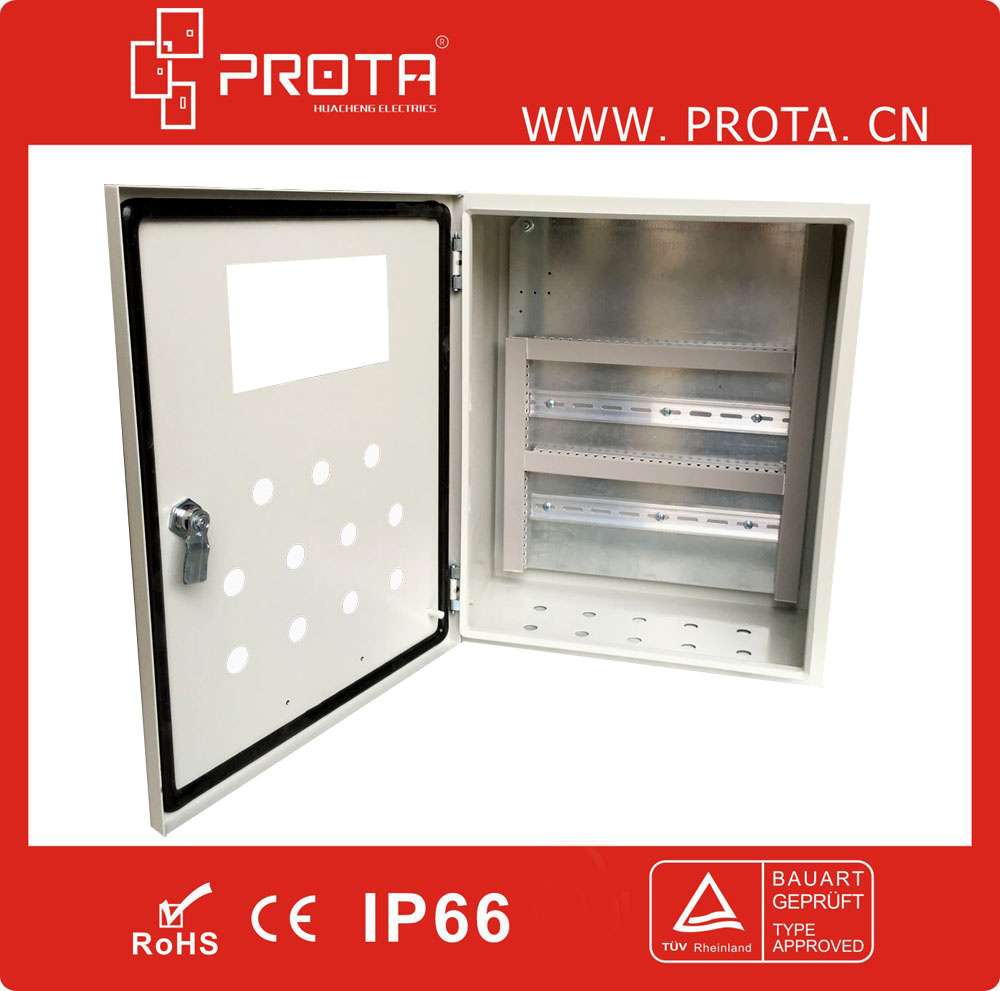

Control Panel Board Electrical BoxThe electrical box is designed to house and industry electrical controls, instruments and components in areas which maybe are wet and oily, provides protection from dust, oil and water.
Standard ConfigurationBox enclosure, galvanized mounting plate, plastic lock system, gland plate, sealing gasket, hole plugs, screws.
Craftsmanship Feature1.The slots design of the box prevent dust, oil and water entering into the electrical box, plus the good coordination with foam sealing gasket, which supply a good protection of the electrical box.
2.The door can be opened 130° by the plugging hinges.
3.There are 4 hanging holes in the back of the electrical box, which is very convenient for installation by the wall mounting bracket, optional mounting feet is also avaliable.
4.The door can be switched by both left and right side.

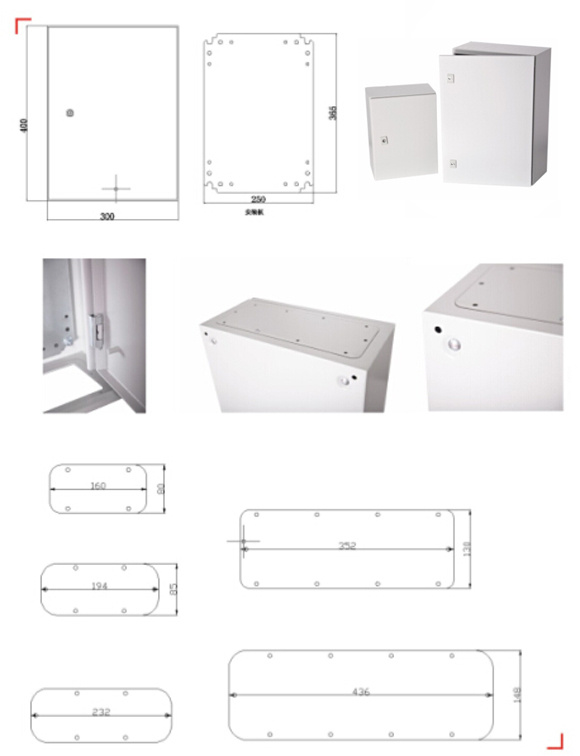

5.The gland plate is convenient for cable entry.
6.Ground stud on door and body, earth wire is avaliable.
Selection Table
Model |
Size(mm) |
Model | Size(mm) |
| PT2 215 | 200X200X150 | PT6 425 | 600X400X250 |
| PT3 215 | 300X200X150 | PT7 525 | 700X500X250 |
| PT3 315 | 300X300X150 | PT8 625 | 800X600X250 |
| PT4 315 | 400X300X150 | PT9 625 | 900X600X250 |
| PT5 415 | 500X400X150 | PT10 825 | 1000X800X250 |
| PT6 415 | 600X400X150 | PT10 1025 | 1000X1000X250 |
| PT6 515 | 600X500X150 | PT12 825 | 1200X800X250 |
| PT7 515 | 700X500X150 | PT12 1225 | 1200X1200X250 |
| PT8 615 | 800X600X150 | PT14 1025 | 1400X1000X250 |
| PT3 2520 | 300X250X200 | PT4 330 | 400X300X300 |
| PT3 320 | 300X300X200 | PT5 530 | 500X500X300 |
| PT4 420 | 400X400X200 | PT6 430 | 600X400X300 |
| PT5 520 | 500X500X200 | PT7 630 | 700X600X300 |
| PT6 620 | 600X600X200 | PT8 630 | 800X600X300 |
| PT7 620 | 700X600X200 | PT9 630 | 900X600X300 |
| PT8 620 | 800X600X200 | PT12 1030 | 1200X1000X300 |
| PT8 820 | 800X800X200 | PT4 440 | 400X400X400 |
| PT8 820 | 800X800X200 | PT5 540 | 500X500X400 |
| PT10 1020 | 1000X1000X200 | PT6 440 | 600X400X400 |
| PT12 1020 | 1200X1000X200 | PT6 540 | 600X500X400 |
| PT3 2525 | 300X250X250 | PT7 640 | 700X600X400 |
| PT4 325 | 400X300X250 | PT8 640 | 800X600X400 |
| PT5 325 | 500X300X250 | PT10 840 | 1000X800X400 |
| PT5 425 | 500X400X250 | PT10 1040 | 1000X1000X400 |
******Other sizes avaliable on request .Cut-outs and drilled holes to your specifications. Should you have any questions or problems, please contact with us.*****
Packing and Shipping-- Ordinary paper carton for electric enclosure.
-- Paper cover , PP strap, protective film is avaliable for big electric cabinet
-- Plastic bag is avaliable for stainless steel electric box
-- Bubble bag or protective film for inner protection to avoid scratches.
-- Plywood pallet is available when sheet metal products are in large amount.
--Shipping mark according to customer's request.
-- Samples can be send by courier(UPS, FEDEX, EMS,TNT, DHL),bulk production will be deliveried by sea and air.
Our Service
-- We have our own factory, professional sheet metal parts manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change

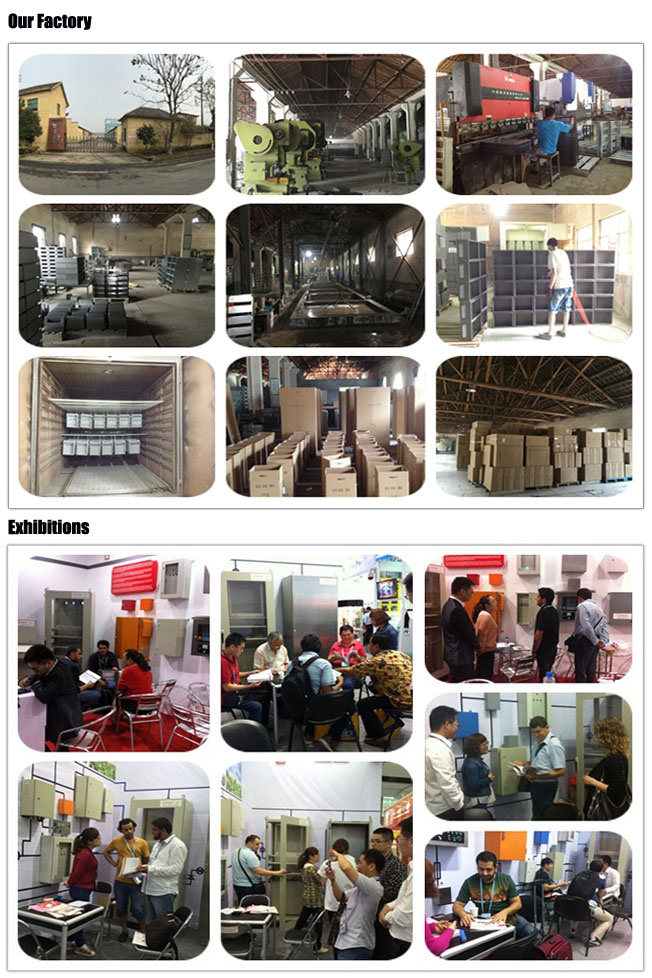

Welcome to visit our factory. Welcome customer or your agent to inspect before order and before loading.
Company Information
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: metal wall mounting enclosures, stainless steel enclosures, floor standing electric cabinets, knock-down cabinets, terminal boxes, junction boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed ROHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & ROHS certificates were issued by TUV lab in Shanghai China
we are devoting ourselves to achieve high quality products, competitive prices and on time delivery, We are working hard to give more to our customers.
PROTA is a professional manufacturer, well-known of all kinds of distribution boxes in China, our products range includes: Metal wall mounting enclosures, top stainless steel enclosures, floor standing cabinets, knock-down cabinets, network cabinets, terminal boxes, MCB boxes, gland boxes, telephone boxes and so on.
As an ISO 9001 certified factory, Prota has produced enclosures IP rated enclosures from 55 up to 66, Our enclosures go through stringent quality control during in production and are picked by random for testing by our professional QC dept. All selected enclosures have passed RoHS test, got CE approval complying with EN62208 standard as well, furthermore, both the IP & RoHS certificates were issued by TUV lab in Shanghai China.
We have always insisted on follow the clients' needs, complied with the convenient, practical, safe and beautiful perspective of development and production since the establishment, so far we've well received favorable comments at home and abroad. We also undertake OEM, ODM production, welcome letter Call Advisory.
