Aluminium PCB 1 W/K Thermal Conductivity for Power LED Lighting
| Price: |
US $ 0.4/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-817-V8.17 |
| Aluminum Core: |
1W / Dielectric Material |
| Minimum Trace And Space: |
62.4 Mil /- Mil |
| Minimum / Maximum Holes: |
4.2 / 4.2 mm |
| Final Foil External: |
1 Oz |
| Final Height Of PCB: |
2.0mm ±0.20 |
| Surface Finish: |
Hot Air Soldering |
| Solder Mask Color: |
White |
| Colour Of Component Legend: |
Black |
| Via: |
Non Plated Throught Hole (Npth) |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Aluminum |
| Dielectric: |
Aluminum 5052 |
Product Description
1.1 General description

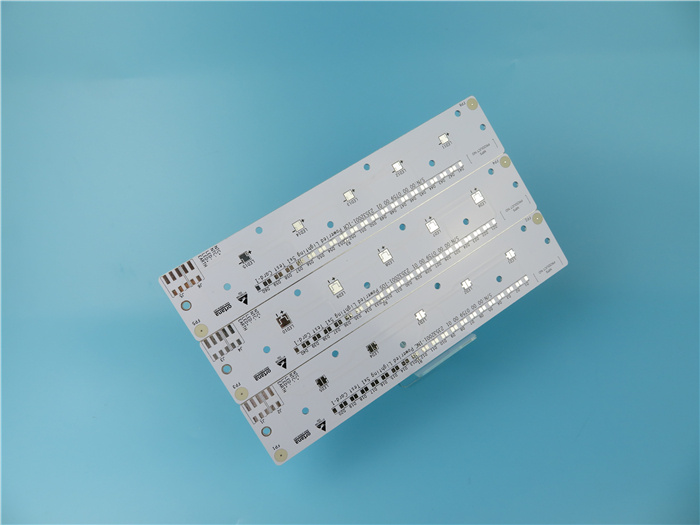

This is a type of single sided metal core PCB built on aluminum base with 1W/MK dielectric for
the application of power LED lighting. It's 2.0 mm thick, black silkscreen over white solder mask
and HASL on pads. The base material is used from ILM brand, entire board supplying 3 types
different PCBs per panel. Each connected by v-cut line. They're fabricated per IPC 6012 Class
2 using supplied Gerber data. Each 20 panels are packed for shipment.
1.2 Features and benifits
a. Effective heat dissipation reduces the operating temperature of the module and prolongs the
service life;
b. Optimization combination of power circuit and control circuit;
c. Reduce the operating temperature of the equipment;
d. Improve the power density and reliability of the device;
e. Meeting your PCB needs from prototype to mass production;
f. Powerful PCB capabilities support your reaearch and development, sales and marketing;
g. Delivery on time. Higher than 98% on-time-delivery rate;
h. UL recognized and RoHS Directive-compliant.
1.3 Application
Preamplifier, Motor driver, Insulation heat conduction of semiconductor devices, All kinds of energy
-saving LED lights
1.4 Parameter and data sheet| PCB SIZE | 239 x 137mm=3 types = 3 PCS |
| BOARD TYPE | Aluminum PCB, IMS PCB |
| Number of Layers | Single sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz) |
| 1W/MK dielectric material |
| Aluminum 5052 |
| TECHNOLOGY | |
| Minimum Trace and Space: | 62.4 mil /- mil |
| Minimum / Maximum Holes: | 4.2 / 4.2 mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 21 |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Thermal conductivity | 1W/MK dielectric material, MCPCB |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 2.0mm ±0.20 |
| PLATING AND COATING | |
| Surface Finish | Hot Air Soldering |
| Solder Mask Apply To: | Top. 12µm Minimum. |
| Solder Mask Color: | White |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, V-cut |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | no via |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
