Aluminum Cable XLPE/Aluminum Electrical Cable/Aluminum Cable 25mm

Name: Aluminum Cable XLPE/Aluminum Electrical Cable/Aluminum Cable 25mm
Brand: all-electronics-online.com
SKU: 835038255
Availability: InStock
Rating: 4.4 (117 reviews)

Price:	US $ 2/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	VLV, BLV, JK.
Product Name:	Aluminum Cable XLPE/Aluminum Electrical Cable/Alum
Number Of Cores:	Single/2/3/4/5/6/7/8/10/16 Core...
Rated Voltage:	0.6/1kv,1.8/3kv,3.6/6kv,6/6(10)Kv,8.7/10(15)Kv,12/
Cross Section Area/Measure:	3.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300/4
Standard:	IEC 60502-1, BS 7870-6, BS 6622, BS 7835, GB 5023-
Conductor:	Stranded/Solid/Flexible Copper/Aluminum Conductor
Insulation:	XLPE/PVC/PE/Pur
Aplication:	Electric, House Wire, Building Wire...
Shield:	Copper Wire Screen(Cws), Aluminium Wire Screen(Aws
Armoured:	Steel Tape Armoured (Sta) or Steel Wire Armoured (
Application:	Telecommunication
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Model:	Vlv, Blv, Jk...
Brand:	Chang Qing Teng

Product Description

Applications of ABC cable

ABC cable as a new-type Aerial cable is used for transmitting electric power overhead,extensively used in rebuilding of urban and forest
region electrical wire netting.It improves the safety and reliance of electrified wire netting.

Standards of ABC cable

International: IEC 60502, IEC 60228

China: GB/T 14049-93

Other standards such as BS,DIN and ICEA upon request

Rated Voltage for ABC cable :

UO/U 0.6/1kV,11kV,33kV

Description of ABC cable :

1.Conductor:Aluminum
2.Application:Power transmission
3.Isulation:XLPE

Note: Insulation color as per standards or customer requirement

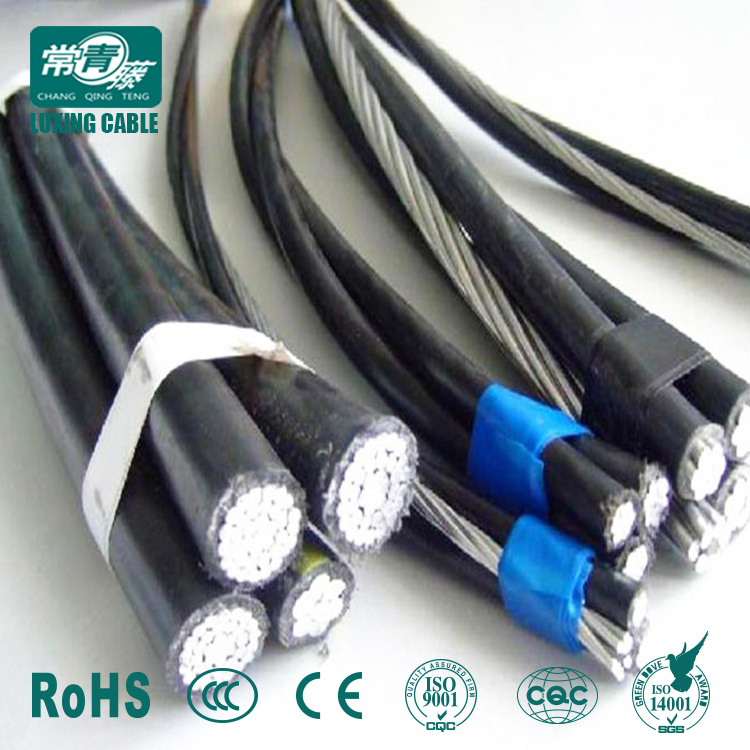

Type of ABC cable :

Aerial Bundle Cable covers mainly three types:

Two core(Duplex Service Drop)

Three core(Triplex Service Drop)

Four core(Quadruplex Service Drop)

The cable can be produced whose construction is phase conductor with neutral bare conductor or phase conductor with insulated neutral
conductor , etc. And we can still produce the cables according to the request of customers.

Model and Specification of ABC cable

Nominal cross-section area (mm2)	Conductor structure			Insulation material	Insulation Thickness (mm)	Approx. Overall Diameter (mm)	Approx.weight (kg/km)	Packing meters per drum
	Phase (Compacted AL)	Neutral(bare ACSR)
	(No./mm)	Aluminum (No./mm)	Steel (No./mm)
1x16+16	7/1.72	6/1.72	1/1.72	XLPE	1.2	12.5	121.9	250-4000m
1x25+25	7/2.15	6/2.15	1/2.15	XLPE	1.2	14.9	182.2	250-4000
1x35+35	7/2.54	6/2.54	1/2.54	XLPE	1.4	17.5	254.7	250-3500m
1x70+70	19/2.15	12/2.15	7/2.15	XLPE	1.4	23.6	382.2	250-3000m
1x95+95	19/2.54	12/2.54	7/2.54	XLPE	1.6	27.6	528.2	250-3000m
2x16+16	7/1.72	6/1.72	1/1.72	XLPE	1.2	14.2	187.6	250-4000m
2x25+25	7/2.15	6/2.15	1/2.15	XLPE	1.2	16.7	273.8	250-3500m
2x35+35	7/2.54	6/2.54	1/2.54	XLPE	1.4	19.7	386.9	250-3500m
2x70+70	19/2.15	12/2.15	7/2.15	XLPE	1.4	26.1	617.2	250-3000m
2x95+95	19/2.54	12/2.54	7/2.54	XLPE	1.6	30.5	850.9	250-3500m
3x70+70	19/2.15	12/2.15	7/2.15	XLPE	1.4	29.7	1024.3	250-3000m

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
