Aluminum Case Single Output 150W 12V Power Supply 5V 48V LED Switching Power Supply

Name: Aluminum Case Single Output 150W 12V Power Supply 5V 48V LED Switching Power Supply
Brand: all-electronics-online.com
SKU: 839484405
Availability: InStock
Rating: 4.5 (115 reviews)

Price:	US $ 13.8-15/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-150
Output Type:	Single
Warranty:	1 Year
Output Power:	101 - 200W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Ann

Product Description

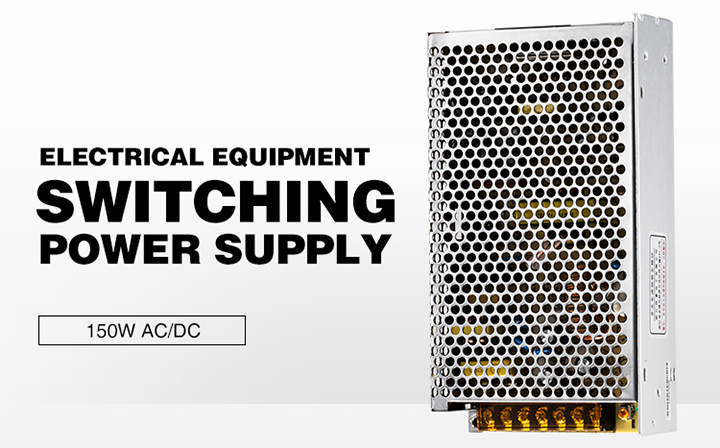

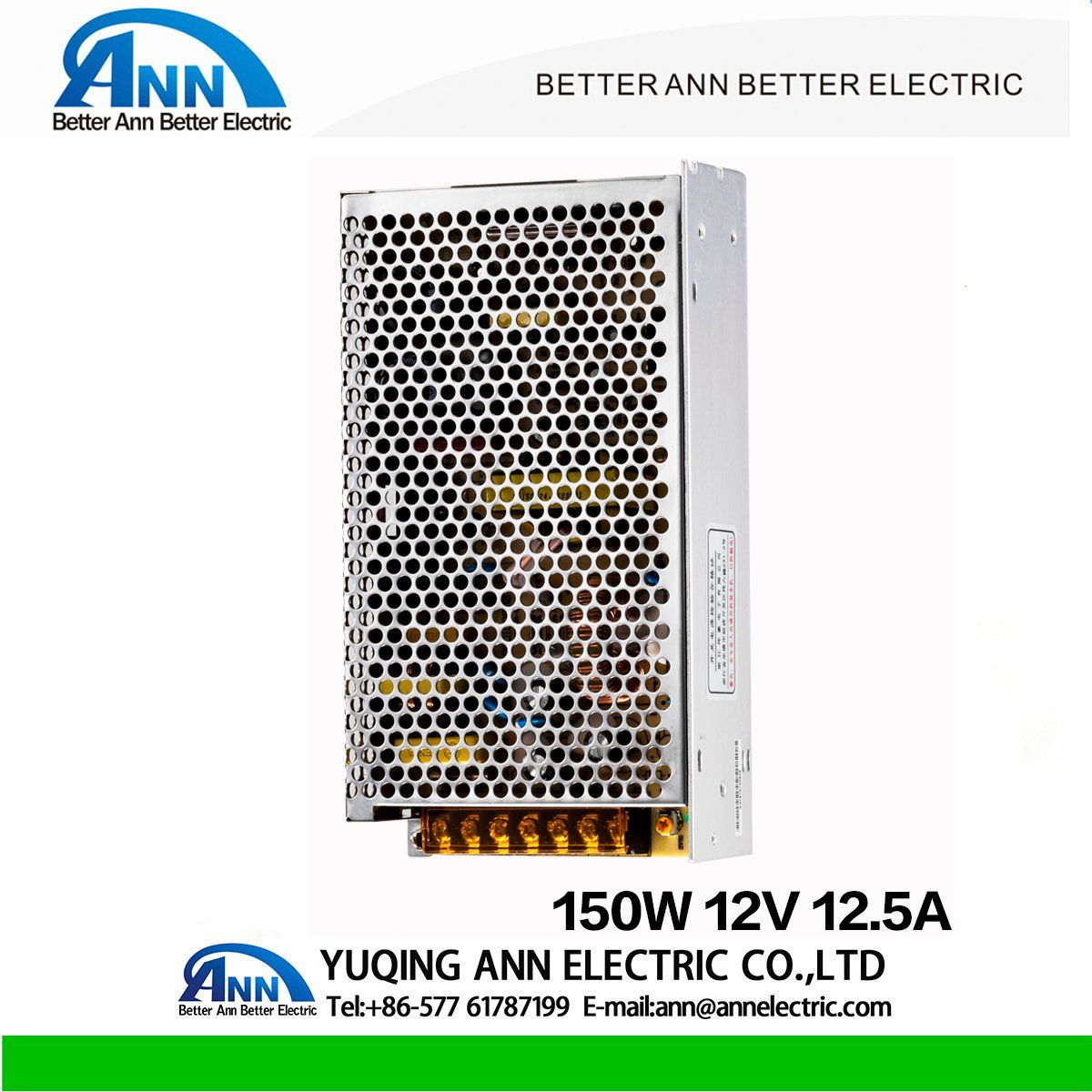

150W 12V DC Switching Power Supply

Features:

1. AC input range selectable by switch

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 12 months warranty

Specifications:

Specification	S-150-5	S-150-7.5	S-150-9	S-150-12	S-150-13.5	S-150-15	S-150-24	S-150-27	S-150-48
DC output voltage	5V	7.5V	9V	12V	13.5V	15V	24V	27V	48V
Output voltage error (Note2)	±2%	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	30A	20A	16.7A	12.5A	11.2A	10A	6.5A	5.6A	3.2A
Output current rage	0-30A	0-20A	0-16.7A	0-12.5A	0-11.2A	0-10A	0-6.5A	0-5.6A	0-3.2A
Wave and noise(Note3)	150mVp-p	150mVp-p	180mV	180mV	180mV	180mV	240mV	240mV	240mV
Inlet stability(Note4)	±0.5%	±0.5%	±0.3%	±0.3%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
Load stability(Note5)	±0.5%	±0.5%	±0.3%	±0.3%	±0.3%	±0.3%	±0.2%	±0.2%	±0.2%
DC output power	150W	150W	150.3W	150W	151.2W	150W	156W	151.2W	153.6W
Efficiency	78%	80%	80%	82%	83%	84%	85%	86%	87%
Adjustable range for DC voltage	4.5-5.5V	6-8.3V	8-10.4V	10.6-13.2V	12-15V	13.5-16.5V	21-28V	24-30V	43-53V
AC input voltage range	85 to132VAC/176 to264VAC SELECTED BY JUMPER OR SWTCH 47 to63Hz;255 to370VDC
Input current	3.2A /115V 1.6A/230V
AC impulse current	Cold-start current 35A/115V 60A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105 to150 Type PULSING HICCUP SHUTDOWN Reset:auto recovery
Over-voltage protection	115% to135%
High-temperature protection	..
Temperature coefficient	±0.03% centidegree (0 to50 centidegree )
Setup rise hold up time	100ms,50ms,20ms
Vibration	10 to500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	Input and output interval 3KVAC , Input and enclosure 1.5KVAC , Output and enclosure 0.5KVAC
Isolation resistance	Input and output interval , Input and enclosure, Output and enclosure 500VAC/100M Ohms
Working temperature and humidity	-10 centidegree to+60 centidegree , 20% to90%RH
Store temperature and humidity	-20 centidegree to+85 centidegree, 10% to95RH
Overall dimension	19911050mm
Weight	0.8Kgs
Safety standards	Meet UL1012,TUV EN60950
EMC standards	Meet CLSPR22(EN55022), IEC801-2,3,4,IEC555-2 Verification
