Aluminum Cast-in Heater for Extruding Machine

Name: Aluminum Cast-in Heater for Extruding Machine
Brand: all-electronics-online.com
SKU: 820307725
Availability: InStock
Rating: 4.7 (25 reviews)

Price:	US $ 20-200/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Cast In Heater
Volatge:	220-480V

Product Description

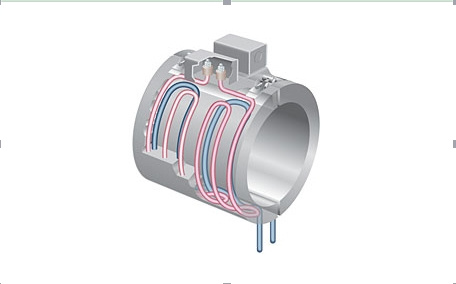

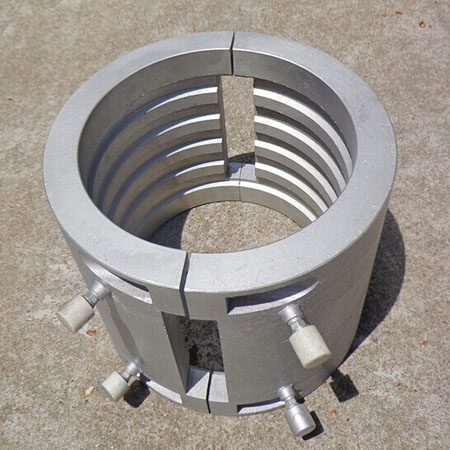

General Introduction of cast in aluminum band heater

Cast in aluminum band heater is mainly used for extrusion and casting molding machines. It has a wide application in various machinery industries. The operation temperature can reach up to 400°C (Aluminum). In order to concentrate the heat to one direction on the injection face, the other sides of the product are covered by heat retention and heat insulation materials.So it has advantages such as advanced technology, high heat retention, long lifetime, anti-pollution, etc.

Technical Specification of cast in aluminum band heater

Advantage	High operating temperatures, Uniform heat distribution. Liquid cooling or air cooling, High precise and accurate control of temperature Any size or shape available
Max operating temp	400ºC
Certification	ISO9001, CE
Material	Aluminum
Voltage	120, 240, 480, or 600 volts
Power	50-2000W (customized)
Thickness	20mm or customized
After-sale services	Engineers available to service machinery overseas
Warranty	1 year
Delivery date	7-15Days
The wire	nickel chrome wire or FeCr

Applications of cast in aluminum band heater

Extruder Barrels
Heated Molds
Waffle Irons
Electric Griddles
Food warmers
T-Shirt Press machines

Order Guide for cast in aluminum band heater

Please specify the following when ordering.

The inner diameter (mm) and length (mm) of heaters
Thickness of heaters
Terminal length (max & min) and the distance of terminal length
The diameter, length of cooling tubes and the distance between them.
Voltage and power density
Gap of two pieces if applicable
Wiring type and position
Whether need air blowers
Content of the stamping if needed
Order quantity
Delivery date

* It's better to provide us with the drawings/pictures
Others: position of terminal box, the position and size of the hole for connecting thermocouple OR of the incision, whether need to cast in the terminal

Air cooled Liquid Cooled

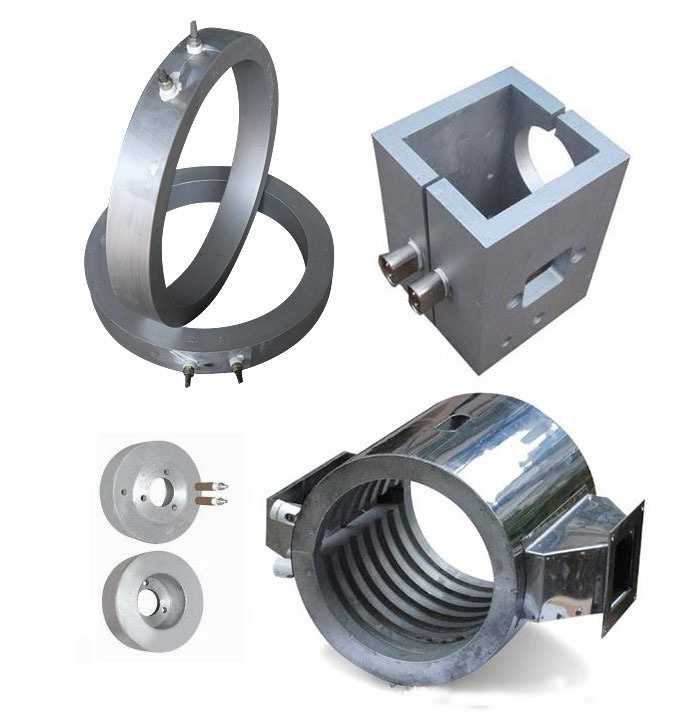

Types of cast aluminum band heater

Packaging and Shipping
Packaging
1)plastic bag and carton for cast in aluminum band heater
2)Wooden box for cast in aluminum band heater
Shipping
1) shipping by express (sample order) or by sea(bulk order)
2) worldwide shipping service available

Founded in 2008, Yancheng Hongtai Alloy Electric Apparatus Co., Ltd is a professional Heating element manufacturer. We are Branch of Yancheng Songtai Electric Heating Element Factory(founded in 1990).

With product development, machine improved and technological innovation, we have improved OEM capacity and also have our own brand Hongtai. We have focused on management and quality control according to ISO 9001 standard. We produce top quality heaters and offer efficient service to meet customer's requirements.

We have 10 engineer with more than 10 years of experience in heating element filed to design and develop new heating elements for clients and provide professional suggestion for clients.

We introduce professional machines from Taiwan, Japan and Germany to support our production, including automatic powder filling machine, polishing machine, shrink tube machine, punching machine, automatic reeling machine and so on.

Our main products are Rod heaters, band heater, infrared heaters, temperature sensors and various heating alloys. Our products have got CE, RoHS certification.

Our factory complies with China's Labor Law to treat our workers - no force over-time working and working on legal holiday and no child labor. All workers have 2-day holiday on weekends. If there is any overtime working for urgent shipment, we will pay salary to them based on China's Labor Law.

We welcome you to cooperate with us based on win-win situations. Please feel free to contact us for further information
