Name: Plastic Extruder Machine Ceramic Insulated Band Heaters
Brand: all-electronics-online.com
SKU: 821795135
Availability: InStock
Rating: 4.8 (128 reviews)

Price:	US $ 8-20/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Ceramic Band Heater
Sheath Material:	SUS304
Heating Material:	Nicr Heaing Wire

Product Description

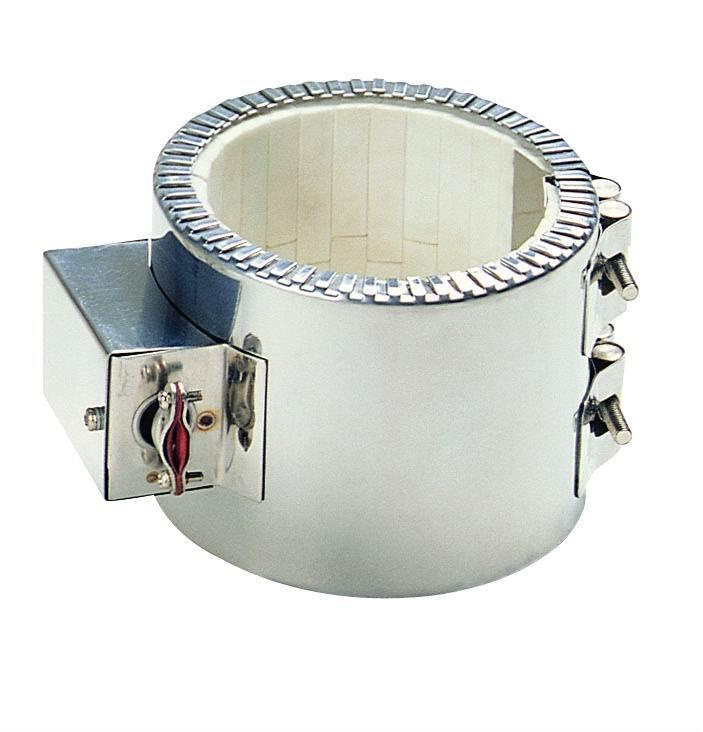

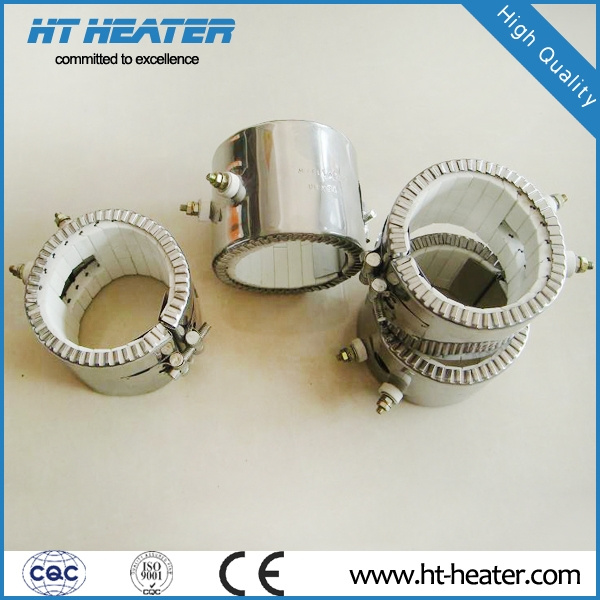

Description of Ceramic Insulated Band Heaters

Hongtai ceramic band heaters are specifically designed and engineered to meet the ever increasing demand for energy conservation and to improve operation efficiency. The Ceramic Insulated Band Heaters are capable of generating the higher temperatures essential to process today's high temperature resins. Ceramic Insulated Band Heaters have become extremely popular among Original Equipment Manufacturers as the standard heaters for the barrels of Plastic Injection Molding, Extruders, and Blow Molding Equipment.

Structures of Ceramic Insulated Band Heaters
1, Nickel-chrome wire in a outer wall composed of interlocking ceramic tiles
2, Inside medium-high temperature heaters up to 1200° F
3, Outside shell temperature: 350° - 450° F
4, Built-in ceramic fiber insulating mat
5, Stainless steel jacket
6, Minimum diameter: 60mm
7, Minimum width: 25.4MM
8, Thickness: 12mm
9, Broad range of terminal types and thicknesses of ceramic fiber insulation mats

BENEFITS
Energy efficient
Energy saver
Highly flexible
Durable
Maintains heat
Provide uniform heat distribution
CSA, CE and UL certified

APPLICATIONS
Injection molding
Blow-molding
Plastic extrusion
Container, pipe, or tank heating
Process applications

When ordering please specify:

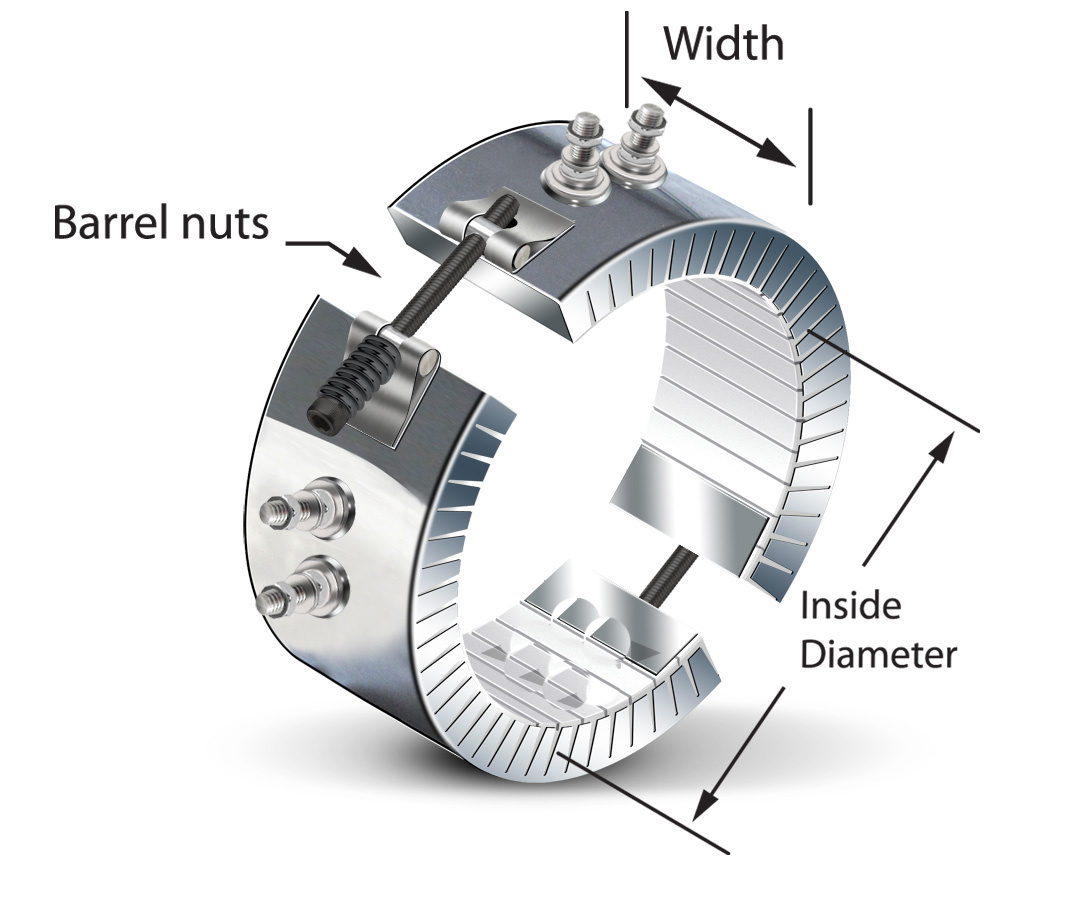

1, Inside diameter and width of the heater
2, Construction type
3, Wattage and voltage

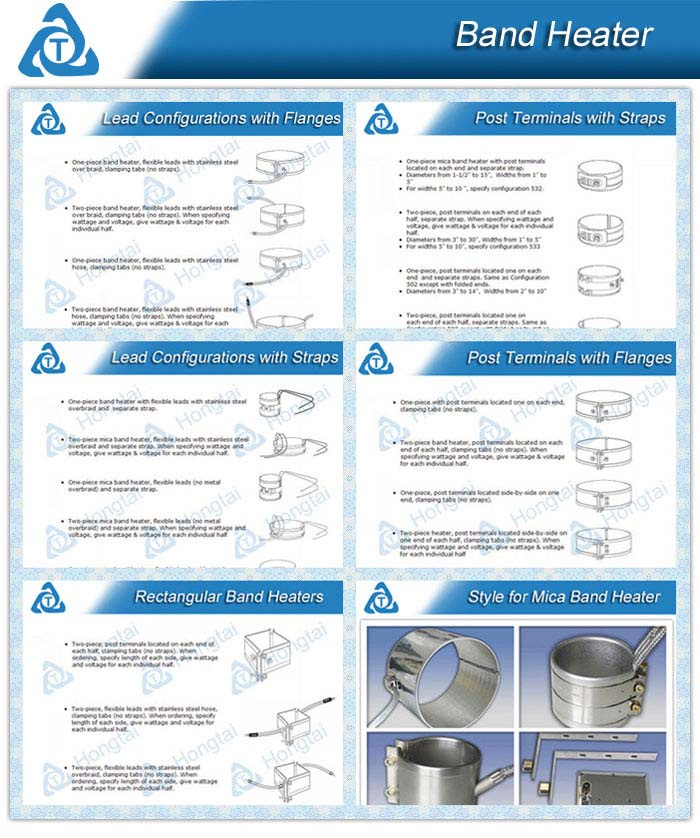

4, Type of terminal
5, Drawing where special type of holes or cutouts required

Industrial Heater	Ceramic Band Heater
Resistance Wire	NiCr 80/20
sheath	304 stainless steel
insulation	ceramic
Heater Voltage	120V 220V 230V 240V 480V standard (other voltages available on request)
wavelength range	2-10 microns
Operating Temperature	300°C to 700°C (572°F - 1292°F)
Operating Life-Up	20,000 hrs
radiation distance	100 mm to 250 mm

Founded in 2008, Yancheng Hongtai Alloy Electric Apparatus Co., Ltd is a professional Heating element manufacturer. We are Branch of Yancheng Songtai Electric Heating Element Factory(founded in 1990).

With product development, machine improved and technological innovation, we have improved OEM capacity and also have our own brand Hongtai. We have focused on management and quality control according to ISO 9001 standard. We produce top quality heaters and offer efficient service to meet customer's requirements.

We have 10 engineer with more than 10 years of experience in heating element filed to design and develop new heating elements for clients and provide professional suggestion for clients.

We introduce professional machines from Taiwan, Japan and Germany to support our production, including automatic powder filling machine, polishing machine, shrink tube machine, punching machine, automatic reeling machine and so on.

Our main products are Rod heaters, band heater, infrared heaters, temperature sensors and various heating alloys. Our products have got CE, RoHS certification.

Our factory complies with China's Labor Law to treat our workers - no force over-time working and working on legal holiday and no child labor. All workers have 2-day holiday on weekends. If there is any overtime working for urgent shipment, we will pay salary to them based on China's Labor Law.

We welcome you to cooperate with us based on win-win situations. Please feel free to contact us for further information
