Product Description

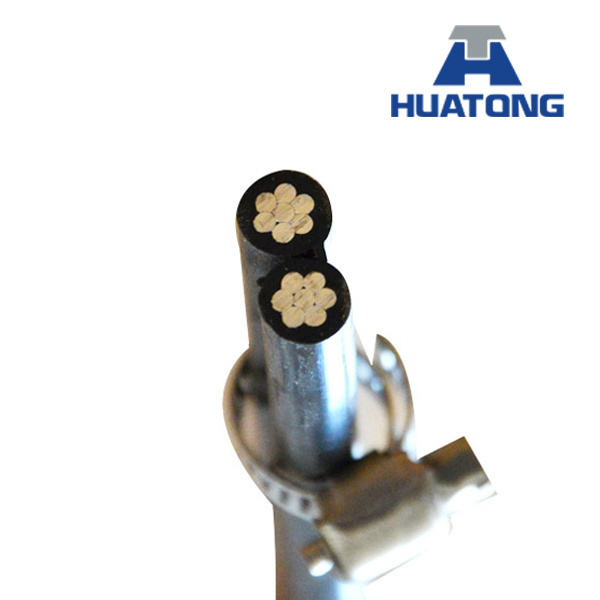

Aluminum Conductor XLPE Insulation cable Overhead Power Line
APPLICATION
ABC cable is suitable for transmitting line and distributing line of rated voltage 0.6/1KV and others.It is widely used at tall buildings,traveling development area and rural area or other place the cost of underground network is expensive.
-----------------------------------------------------------------------------------------------------------------------------
Basic Information
Code Name
ABC
Rated Voltage (Uo/U)
0.6/1KV
Temperature Range
-15ºC-90ºC
-----------------------------------------------------------------------------------------------------------------------------
CONSTRUCTION
Conductor: Copper or Aluminium
Insulation: XLPE
Normally,ABC Cable(ABC Bundled Cable-Aerial Cable) do not use copper,because Aluminium Cost is high,most of our customers use aluminium.
-----------------------------------------------------------------------------------------------------------------------------
CABLE STANDARDS
Chinese National Standards, IEC,SANS 1418-1, SANS1418-2, ASTMB230, ASTMB231,ASTM B398,ASTM B399, NF C33-209 and etc. upon request.
-----------------------------------------------------------------------------------------------------------------------------
Aerial Bundle Conductor-ABC(South Africa Standard Sizes)-SANS 1418-1
Table 01 Aerial Bundled Cable-ABC-BS 7870-5
| ABC Cables without Street Lighting |
| 1+1 Structure |
| Phase Conductor | Neutral Conductor | Completed Cable |
| Section | Insulation Thickness | Electrical Resistance | Section | Insulation Thickness | Electrical Resistance | Overall Diameter | Cable Weight |
| DC.20°C | DC.20°C | | |
| No.xmm2 | mm | Ω/km | mm2 | mm | Ω/km | mm | kg/km |
| 1x25 | 1.3 | 1.20 | 25 | 1.3 | 1.20 | 17.6 | 210 |
| 1x35 | 1.3 | 0.868 | 35 | 1.3 | 0.868 | 19.6 | 270 |
| 1x50 | 1.5 | 0.641 | 50 | 1.5 | 0.641 | 23 | 360 |
| 1x70 | 1.5 | 0.443 | 70 | 1.5 | 0.443 | 26.4 | 500 |
| 1x95 | 1.7 | 0.320 | 95 | 1.7 | 0.320 | 30.6 | 680 |
| | | | | | | | |
| 3+1 Structure |
| Phase Conductor | Neutral Conductor | Completed Cable |
| Section | Insulation Thickness | Electrical Resistance | Section | Insulation Thickness | Electrical Resistance | Overall Diameter | Cable Weight |
| DC.20°C | DC.20°C | | |
| No.xmm2 | mm | Ω/km | mm2 | mm | Ω/km | mm | kg/km |
| 3x25 | 1.3 | 1.20 | 25 | 1.3 | 1.20 | 21.2 | 410 |
| 3x35 | 1.3 | 0.868 | 35 | 1.3 | 0.868 | 23.7 | 550 |
| 3x50 | 1.5 | 0.641 | 50 | 1.5 | 0.641 | 27.8 | 730 |
| 3x70 | 1.5 | 0.443 | 70 | 1.5 | 0.443 | 31.9 | 1000 |
| 3x95 | 1.7 | 0.320 | 95 | 1.7 | 0.320 | 36.9 | 1370 |
| 3x120 | 1.7 | 0.253 | 120 | 1.7 | 0.253 | 40.6 | 1690 |
| ABC Cables with Street Lighting |
| 3+1+1 Structure |
| Phase Conductor | Neutral Conductor | Street Lighting Conductor | Completed Cable |
| Section | Insulation Thickness | Section | Insulation Thickness | Section | Insulation Thickness | Overall Diameter | Cable Weight |
|
| No.xmm2 | mm | mm2 | mm | mm2 | mm | mm | kg/km |
| 3x50 | 1.5 | 50 | 1.5 | 25 | 1.3 | 29.8 | 830 |
| 3x70 | 1.5 | 70 | 1.5 | 25 | 1.3 | 33.6 | 1100 |
| 3x95 | 1.7 | 95 | 1.7 | 25 | 1.3 | 38.2 | 1470 |
