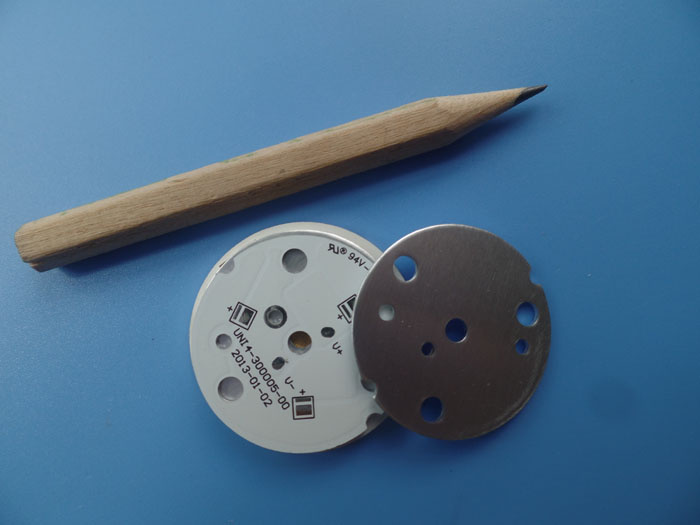

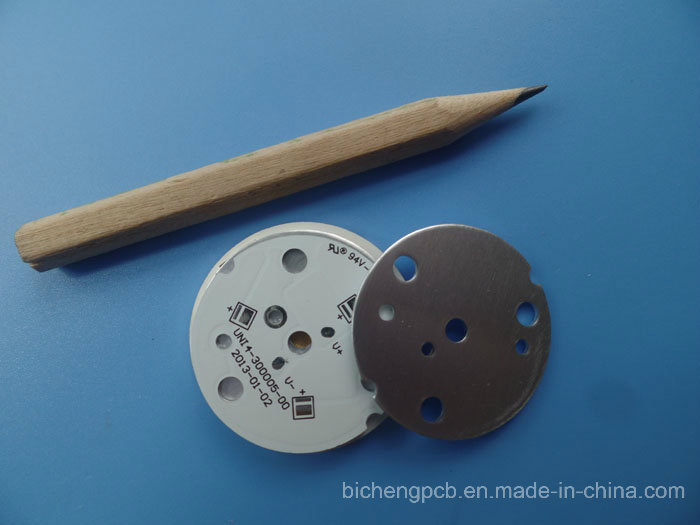

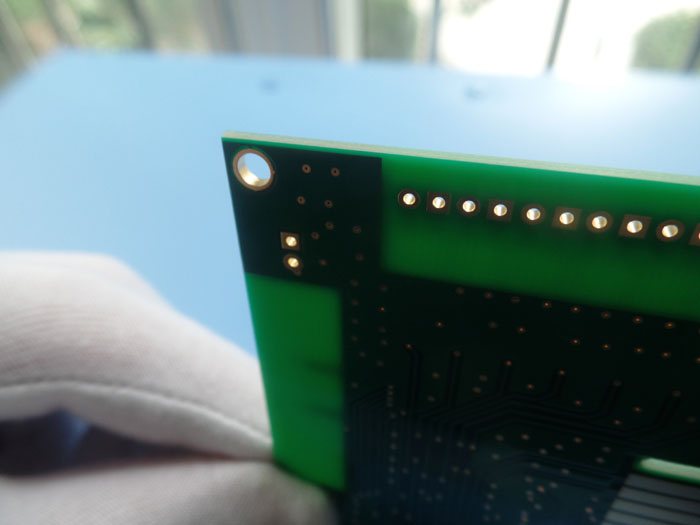

Aluminum LED PCB Design with Bare Board Testing

Aluminum LED PCB Design with Bare Board Testing
Price: US $ 1.2/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: BIC-461.1757-V1.1
Aluminum Core: 1W / Dielectric Material 75um
Thermal Resistance(°c/W): <=0.45
Breakdown Voltage(VDC): 4000
Final Foil External: 1oz
Final Height Of PCB: 1.6mm
Surface Finish: Hot Air Soldering Leveling(HASL), Lead Free
Solder Mask Color: White, Taiyo Psr400 Wt02
Colour Of Component Legend: Black
Via: Non Plated Throught Hole (Npth)

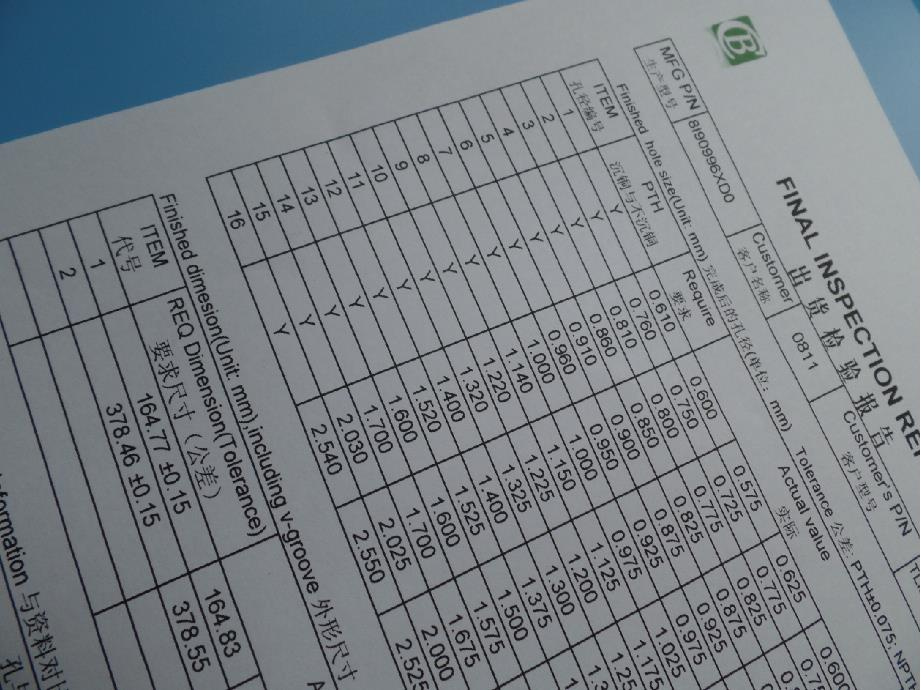

Test: 100% Electrical Test Prior Shipment
Type: Rigid Circuit Board
Flame Retardant Properties: V0
Material: Aluminum
Dielectric: Aluminum 6061

Product Description

Company Profile
The manufacturing facilities are independent industrial plant. There're 16000 square meters workshop area. Brand new automatic equipment was introduced from Israel, Germany, Japan and Taiwan area. As of now the manufacturing capability for 2-12 layer PCBs covers 300 thousand square feet per month. 7000-8000 types of different PCBs are shipped to worldwide each month.

PRODUCTS & SERVICES
a) FR-4 TG>135, High TG>170, High CTI>600V
b) RO4350B, RO4003C, F4B microwave material
c) Aluminum based PCB, 1W/MK-3W/MK material
d) Layer Count up to 32 layers
e) Heavy Copper
f) Hybrid Material Multilayer PCB
g) Impedance Controlled PCB
h) HASL Lead free, Electroless Nickle Immersion Gold (ENIG), Immersion Silver, Immersion Tin, OSP
i) Color of Solder Mask: Green, Blue, Matt Blue, Yellow, Black, Red and White etc.
j) Special holes: blind via, countersink hole, castellation hole, press-fit hole
k) Quick turn-around (QTA) Delivery
l) Minimum Order Quantity (MOQ) 1 pcs
m) Door to Door shipment service

SERVICE AREA
North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern Europe, Northern Europe, Central & South Asian, Middle East.


PCB Board


Aluminum PCB


High Frequency PCB

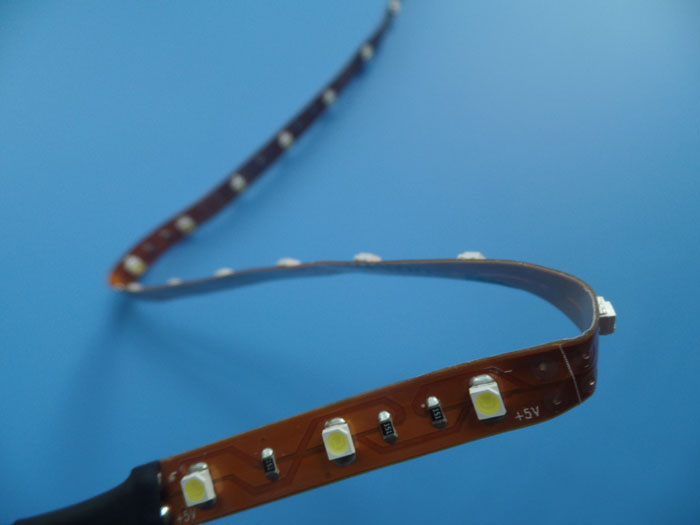

Flex PCB


The components of multilayer PCB: copper foil

A multilayer board consists of copper foils, thin rigid laminates and prepreg sheets.
The standard thicknesses for copper foils are shown below
µm591217.53570
oz0.140.250.340.512

Thick copper (heavy copper) foils are used for voltage and ground planes by some electronics companies. Thicknesses up to 210 µm (6 oz) are specified for high voltage coil boards. For very fine-line boards, 5 and 9 µm (0.14 and 0.25 oz.), ultrathin copper foils are also used for the outer layers.

Copper foils are used as copper cladding of the thin laminates used in the inner layers. Such laminates can be delivered with different copper thicknesses on the two sides, for example, 17.5 µm (0.5 oz.) on one side for a signal layer and 35 µm (1 oz.) on the other side for ground or voltage planes.

Copper foils are sometimes used directly as cap foils for the outer layers. In such cases, the copper foils are bonded to the next layers by means of prepreg and form the outer layer circuits.

For signal outer layers, the copper foil thickness is usually 17.5 µm (0.5 oz.) or 35 µm (1 oz.) depending on the minimum track width and spacing. In the case of high-density fine-line boards, 5 or 9 µm (0.14 or 0.25 oz.) ultrathin copper foils can be the only solution to achieve the required high resolution when etching the board.

For signal inner layers, a 35 µm (1 oz.) copper foil is normally chosen. For ground and voltage planes, 35 µm (1 oz.) and 70 µm (2 oz.) copper foils can be used. However, the thicker foil, the more difficult it is to fill the apertures in the planes around the hole wall with epoxy flowing from the prepreg sheets during lamination.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
