| Prod Model: |
Ry-CA-0009 |
| Max Working Temperature: |
1600c |
| Rycolor: |
White, Ivory, Pink |
| Special: |
Aluminum Nitride Ceramic Cutting Plates |
| Product: |
Aln Ceramic Part |
| Name: |
Aln Ceramic Part |
| Raw Material: |
Aluminum Nitride Ceramic |
| Item: |
Aluminum Nitride Ceramic Insulator |
| Used: |
Insulation |
| Certification: |
ISO9001-2008/Ce |
| Refractoriness (',℃): |
1580< Refractoriness< 1770 |
| Feature: |
Long Time Materials |
| Type: |
Heat-Resistant Material |
| Shape: |
Plate |
| Material: |
Alumina Block |
Product Description

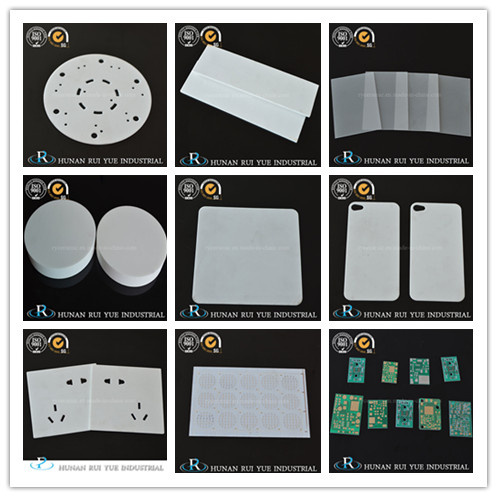

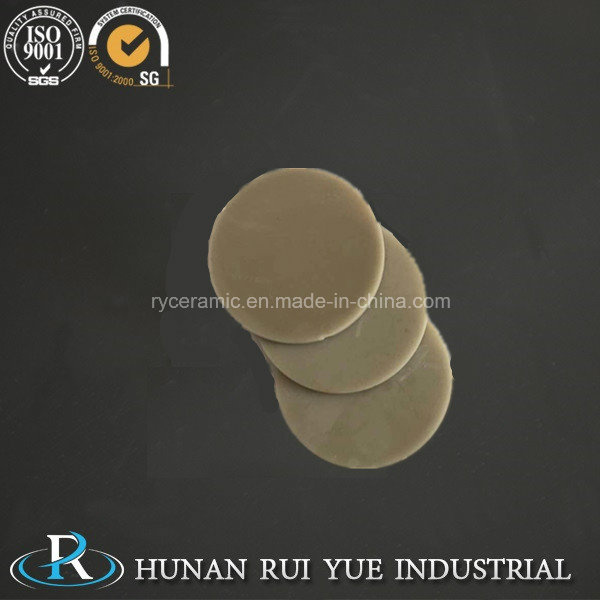

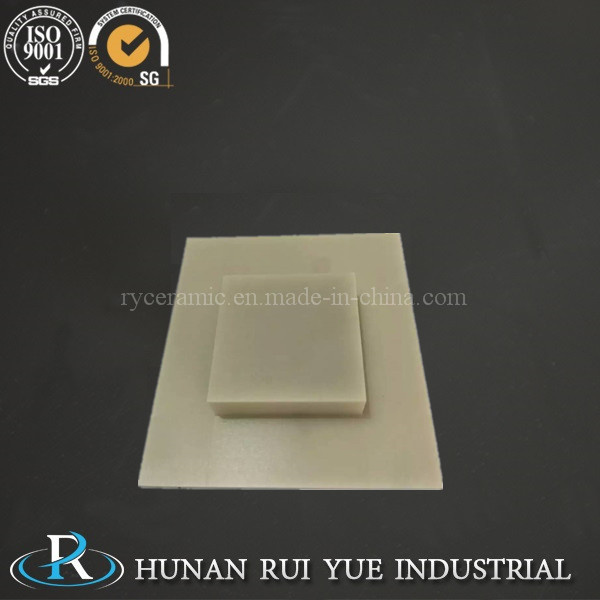

Aluminum Nitride/AlN Plate/Disc For Semiconductor
ALN ceramic substrate
1)High thermal conductivity of more than 170W/m. K,
2)High resistivity,
3)Low dielectric loss,
4)Good insulation,
5)Some other excellent properties
Material: aluminum nitride
The aln ceramic substrate which has high thermal conductivity of more than 170W/m. K, high resistivity, low dielectric loss, good insulation and some other excellent properties. The ALN substrate is the best choice for a wide range of industrial insulating heat sink material of high power machinery and equipments such as high-frequency equipment substrate, high power transistor module substrate, high-density hybrid circuits, microwave power devices, power semiconductor devices, power electronic devices, optoelectronic components, laser-semi-conductor, LED, IC products, and so on.
Product Property :
Physical Properties
| Ceramic Substrates Properties |
| Materials | Al2O3 | AlN | ZrO2 |
| 96% | 99% |
| Color | White | White | Gray | White |
| Density(g/cm3) | 3.72 | 3.85 | 3.3 | 6.04 |
| Thermal Conductivity(W/m.k) | 22.3 | 29.5 | 160-190 | 2.4 |
| Thermal Expansion(x 10 -6/oC) | 8 | 8 | 4.6 | 10 |
| Dielectric Strength | 1.40E+07 | 1.80E+07 | 1.40E+07 | 10 |
| Dielectric Constant(at 1MHZ) | 9.5 | 9.8 | 8.7 | 29 |
| Loss Tangent(x10 -4 at 1MHZ) | 3 | 2 | 5 | 1.00E-03 |
| Volume Resistivity(ohm-m) | > 10 14 | >10 14 | >10 14 | |
| Flexural Strength(N/mm) | 350 | 500 | 450 | |
Application
Alumina ceramic is mainly used in large power equipment, IC MOS tube, IGBT chip heat conducting insulation, high frequency power supply, communication, mechanical equipment, strong current, high voltage, high temperature and other
thermal heat insulation parts need products.
Physical properties: high thermal conductivity, high voltage insulation resistance, high temperature resistant, abrasion resistant, high strength.

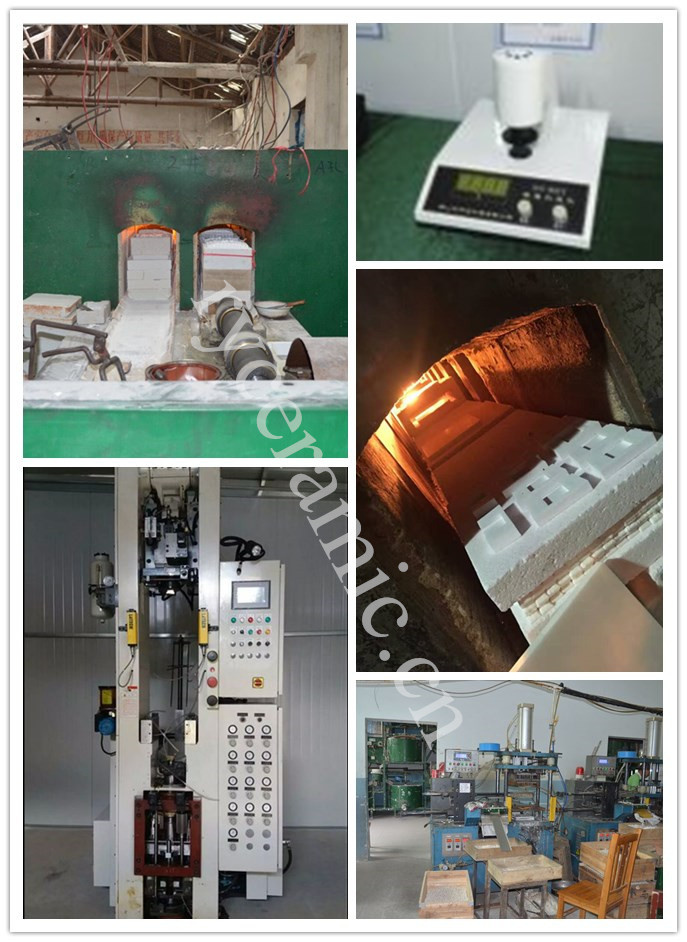

3:Workshop Photo:

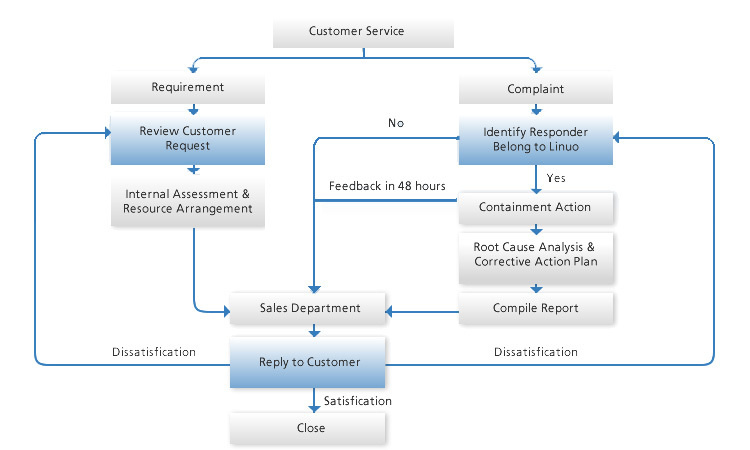

4:Our Service:
5:What can we do for you?
1. Sample is available.
2. Independent R&D, ISO manufacture, precise quality standards, modern logistics management, and sound marketing strategy.
3. Inquiry replied within 24 hours.
4. Patented products.
5. OEM or ODM is available.
6. Some extra accessories can be supplied.
7.The larger quantity you order,the more competitive prices you'll get.
8. Necessary Certificates can be supplied.
9:Why To Choose Us
1. Low MOQ:
It won't occupy too much of your money to help you to test the market you're going to enter.
2. R & D Center and Factory:
We have our own R & D center and factory, so we can supply you products at competitive price.
3. Good Service :
We treat clients as friends.
4. Good Quality :
We import top quality accessories to manufacture our products, we have confident we can offer you the best quality.
5. After-sales service:
One year's guarantee. Wearing accessories comes with the products to help you to reduce the repair bill.
Hunan Rui Yue industrial and trade Co., Ltd was established in 1997, specializing in
Research and development. Main as: Alumina/Zirconia/Aluminium nitride/Pyrolytic boron nitride and series products, Also accept OEM and ODM.
The products are widely used in lamps and lanterns, electric appliances, electric
Heating products, nozzle, auto parts, wear-resistant parts of insulation material, etc.
The company always adhere to quality survival, innovation and development, the integrity
Of the brand, to protect and thoughtful after-sales service enterprises as the goal,
Over the years, Our products are sold well all over the country, and exported to Germany,
United States, Finland, Brazil, Russia, Mexico...More than 20 countries, product quality
And service are highly praised by customers.
"Superior quality, preferential price"is our management tenet, we sincerely expect to
Cooperate with the masses of domestic and foreign customers, common development!
Welcome to visit and investigate of our company.
