| Prod Model: |
RY-CM-0015 |
| Max Working Temperature: |
1600c |
| Rycolor: |
White, Ivory, Pink |
| Special: |
Metallized Ceramics Part |
| Product: |
Metallized Ceramic |
| Name: |
Machine Alumina Ceramic Substrate |
| Raw Material: |
60-99.7% Alumina Ceramic |
| Item: |
Metalizing Ceramic Sealing Tube for Semiconductor |
| Application: |
Switch Baseplate |
| Type: |
Insulation Film |
| Material: |
Ceramic |
| Thermal Rating: |
220 220 |
| Maximum Voltage: |
20KV~100KV |
| Chemistry: |
Ceramic |
| Brand: |
Ry |
Product Description

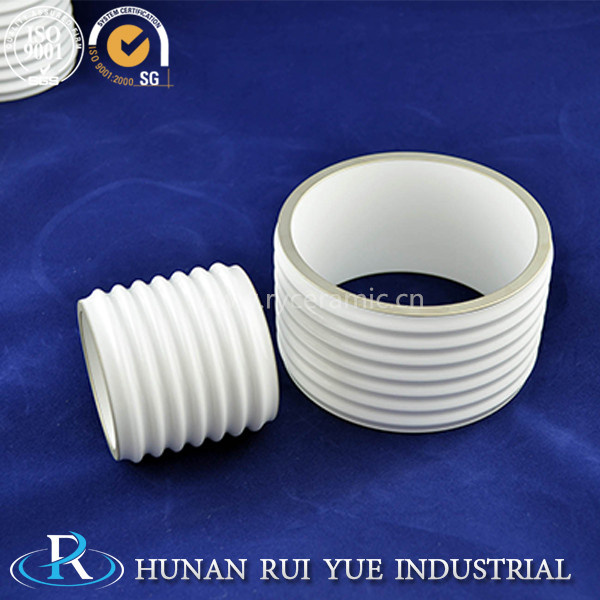

High Thermal Conductivity Metallized Ceramics Tube / Pipe High Alumina Insulator
Technical electrical insulation al2o3 alumina ceramic
-Heat resistance
-Wear resistance
-High strengh
-Good insulation
-Used in all electric products, electric heating products and wear resistant machinery parts.
-OEM, ODM and OBM are welcomed
In high-temperature state, ceramic and metal make the vacuum-completely-tight joint with the advantage of high mechanical strength and exellent thermostability. It is made of various fine hard joining material such as gold, silver copper which makes the equipment work in desirable performance and the new property is generated as well. We makes hermetic ceramic-to-metal joints possible with extremely high bond strengths exceeding 200 N/mm².
The product can be used for gas discharging equipment, or as high & low tension vacuum switch in electric powder and electrified wire, or as freely-controlled silicon elements, potentiometer basilar-plate, refrigerator-basilar plate, electric resipowder electron, metallurgy, machinery, aerospace and aviation
Applications:
Electrical transmission and distribution
Electronics industry
Textile machinery
Defense
Medical electronics
Automobile industry
Avionics
Solid Oxide Fuel Cells
White goods
High power/High temperature application
No. |
Item |
Index |
1 |
Thickness of metal layer
|
Mo-Mn , 8 μm Min |
Ni: 2 μm Min |
2 |
Bonding strength |
>650N/ cm 2 |
3 |
Solderability |
Temperature for soldering tin: 235±5°C dip time lasts 5 second, fresh, glossy and connective solder covered on more than 95% area of bonding pad.
|
4 |
Resistance of solderability
|
Temperature for soldering tin: 260 ±5°C dip time lasts 20 seconds, fresh, glossy and connective solder covered on more than 95% area of bonding pad.
|
