Aluminum PCB 1W / Mk 1.0mm Thick Injection Molding
| Price: |
US $ 1.12/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1057R5.7 |
| Solder Mask Color: |
Worldwide |
| Board Thick: |
1.0mm |
| Surface Finish: |
Immersion Gold |
| Minimum Trace and Space: |
15 Mil/12 Mil |
| Minimum / Maximum Holes: |
3.5/6.3mm |
| Copper Thick: |
1 Oz |
| Legend Color: |
No Required |
| Via: |
Via Tented |
| Thermal Resistance(°c/W): |
≤0.45 |
| Test: |
Electronic Test |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Aluminum |
| Dielectric: |
Aluminum 5052 |
Product Description

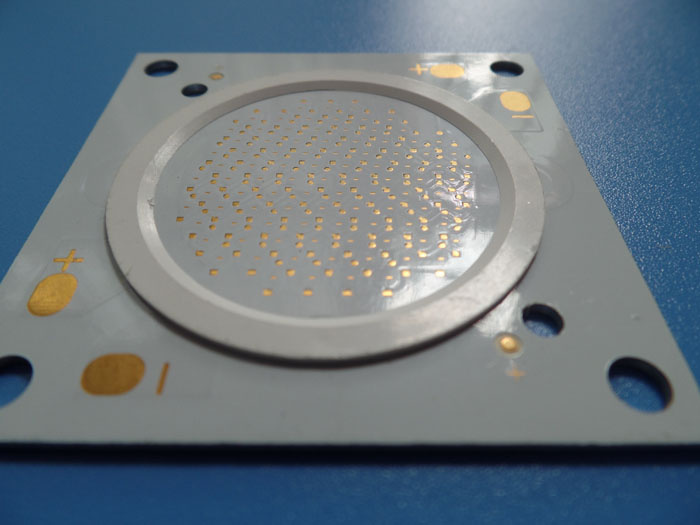

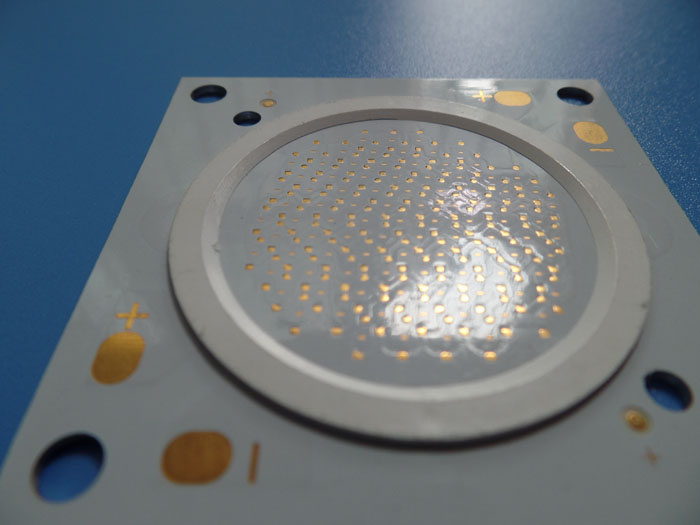

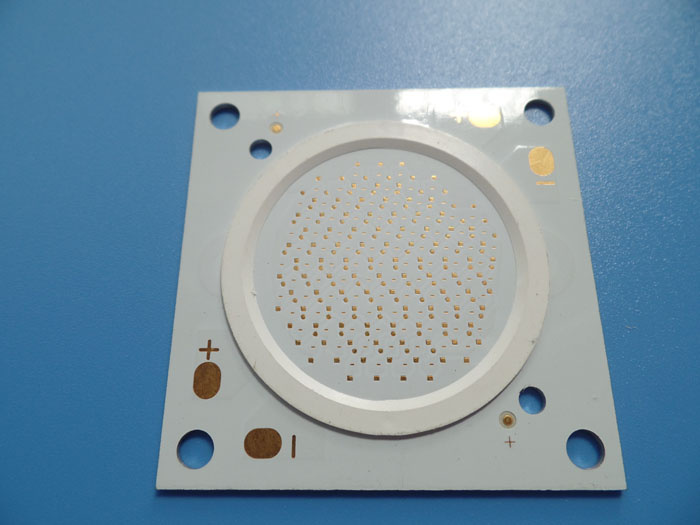

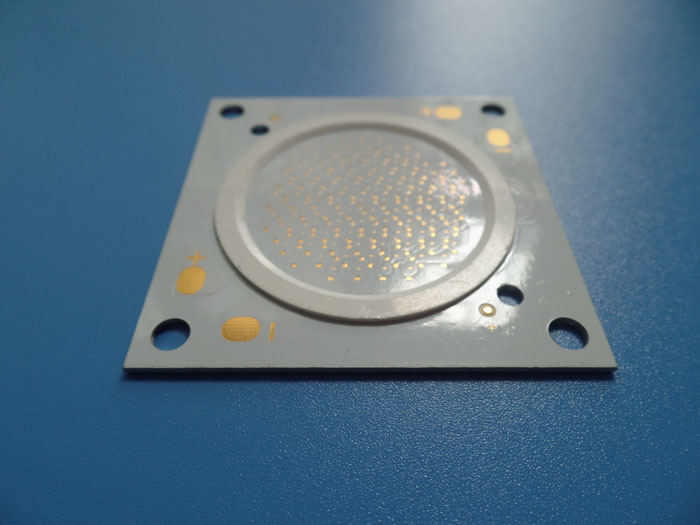

Single Sided MCPCB Board Aluminum PCB Board 1W / MK 1.0mm Thick Injection Molding Applied In LED Lighting
Commodity Introduction
This is a type of Aluminum PCB for the application of LED light. It's a single sided layer board at
1.0mm thick. The base laminate is from ITEQ. Solder mask from Taiyo. It's fabricated per IPC
6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 55 x 55mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Single sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz) |
| 1W/MK dielectric material |
| Aluminum 5052 |
| TECHNOLOGY | |
| Minimum Trace and Space: | 15mil/12mil |
| Minimum / Maximum Holes: | 3.5/6.3mm |
| Number of Different Holes: | 4 |
| Number of Drill Holes: | 9 |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Thermal conductivity | 1W/MK dielectric material, MCPCB |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.0mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel) |
| Solder Mask Apply To: | Top. 12µm Minimum. |
| Solder Mask Color: | White,PSR400 WT02 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | no silkscreen required |
| Colour of Component Legend | no silkscreen required |
| Manufacturer Name or Logo: | no silkscreen required |
| VIA | via tented. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | LED light, Wireless Booster
Car Gps Tracker
File Server
Ac Adapters
Satellite Communication |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Adventages
1.Engineering design prevents problems from occurring in pre production.
2. Products and Manufacturing are certified by authorized organizations.
3. 100% tests inclusive of electrical test and AOI inspection.High voltage test, Impedance control
test, micro-section, solder-ability test, thermal stress test, reliability test, insulation resistance test
and ionic contamination test etc.
4. Eligible products rate of first production: >95%
FAQ
What courier do you use for shipment?
Our courier includes DHL, FedEx, TNT and EMS. As per your order weight and location, we'll
choose the most economic method to send you your boards to help to save the freight cost.
