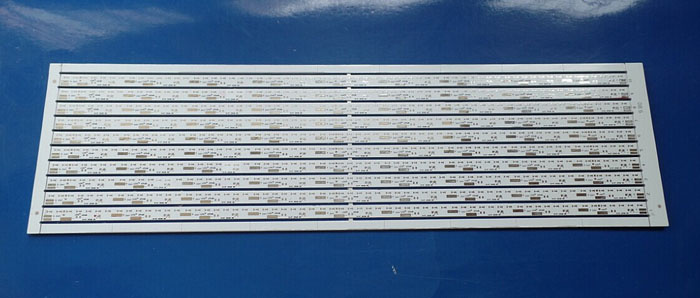

Aluminum PCB Institute Metal Substrate (IMS) 1.6mm Thick 2oz
| Price: |
US $ 1.02/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1268R6.3 |
| Solder Mask Color: |
White |
| Surface Finish: |
HASL Lead Free |
| Board Thick: |
1.6mm |
| Legend Color: |
White |
| Copper Thick: |
2 Oz |
| Minimum Trace and Space: |
9 Mil/9 Mil |
| Minimum / Maximum Holes: |
No |
| Thermal Resistance(°c/W): |
≤0.45 |
| Via: |
Via Tented |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
Aluminum Base 1060 |
Product Description
Aluminum PCB Double Sided Institute Metal Substrate (IMS) 1.6mm Thick 2oz and 2W / MK
dielectric Applied In RGB LED Lighting
Commodity Introduction

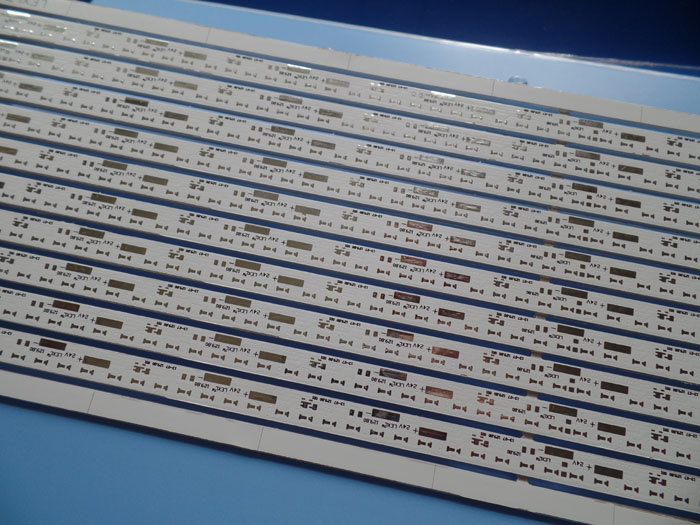

This is a type of Aluminum PCB for the application of LED Light. It's a 2 layer board at 1.6mm thick.
The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 601
-2 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 490 x 140mm=10PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB, Metal core PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 70um(2oz)C |
| 2.0W/MK 75um dielectric material |
| copper ------- 70um(2oz) |
| 2.0W/MK 75um dielectric material |
| Aluminum base 1060 |
| TECHNOLOGY | |
| Minimum Trace and Space: | 9mil / 9mil |
| Minimum / Maximum Holes: | no |
| Number of Different Holes: | no |
| Number of Drill Holes: | no |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Thermal conductivity | 2.0W/MK 75um dielectric material |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Hot Air Soldering Leveling(HASL),
lead free, Sn>=2.54µm |
| Solder Mask Apply To: | Top. 12µm Minimum. |
| Solder Mask Color: | Super white, Taiyo PSR400 WT02 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | as per requirement |
| VIA | via tented |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | RGB led light, Tracking System
Lab Power Supply
DC To DC Converter
GSM Modem
Vehicle Tracker |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
BichengPCB serves global customers from Shenzhen, China
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
Variety of PCB technology to meet the market demands
HDI board
Heavy copper board
Hybrid material board
Blind via board
High frequency board
Metal core board
Immersion gold board
Multilayer board
Backplane board
Gold finger board
Comprehensive sales service presale, in sale and after sale.
Quick CADCAM checking and free PCB quotation
Free-of-charge PCB panelization
Prototype PCB capability
Volume Production capability
Quick turn-around samples
Free-of-charge PCB test
Solid carton packing
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
