| Prod Model: |
BIC-369.1709-R02 |
| Structure: |
Metal Base Rigid PCB |
| Dielectric: |
Prepreg |
| Brand: |
Bicheng |
| Application: |
LED Lighting |
| Base Material: |
Copper Clad Laminate |
| Processing Technology: |
CNC Mill |
| Material: |
Aluminum Base |
| Production Process: |
HASL Lead Free |
Product Description

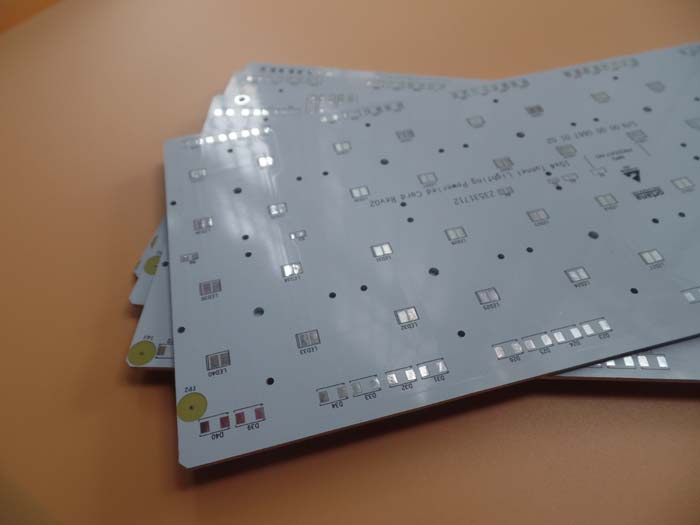

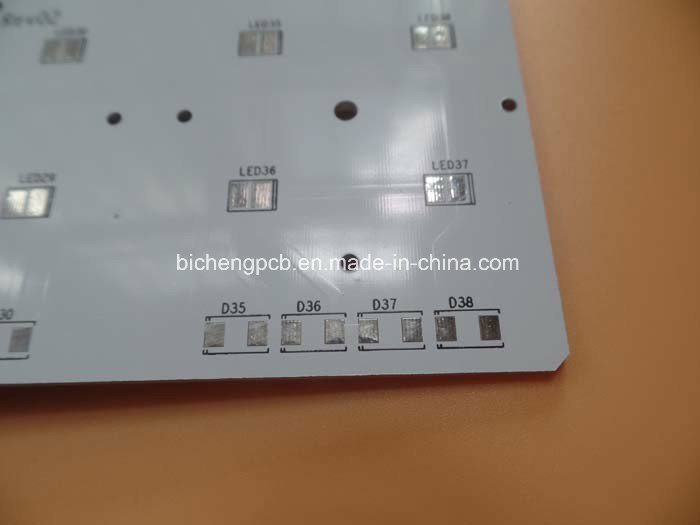

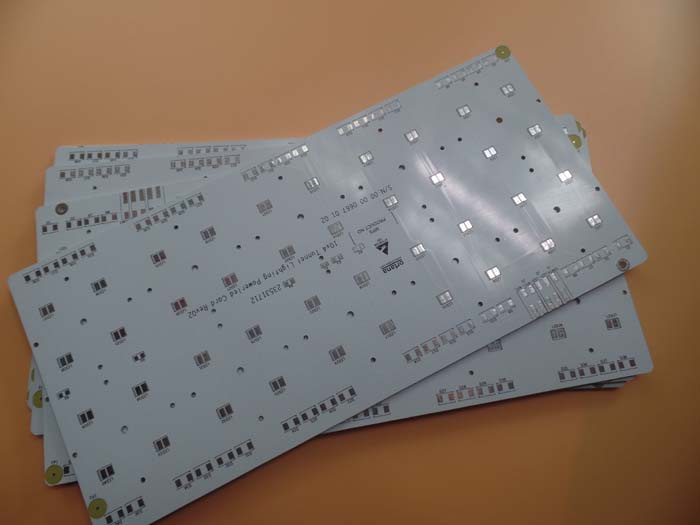

Aluminum PCB White Metacl Core PCB(mcpcb) HASL LED PCB
Commodity Introduction
This is a type of Sinlge layer Aluminum 2.0mm board for the application of LED lighting with HASL pad finish. The base laminate is from ITEQ, White Solder mask from Taiyo and Black silkscreen from Taiyo too. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panel boards are packed separately.
Parameter & Data Sheet| Number of Layers | 1 |
| Board Type | Single sided MCPCB |
| Board Thickness | 2.0mm +/-0.2 |
| Board Material | Aluminum PCB 1W/MK |
| Board Material Supplier | ITEQ |
| CTI | 500V |
| |
| PTH Cu thickness | N/A |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 um (1oz) |
| |
| Solder Mask Type | LPSM |
| Solder Mask Supplier | TAIYO |
| Solder Mask Colour | White |
| Number of Solder Masks | 1 |
| Thickness of Solder Mask | 13um |
| |
| Type of Silkscreen Ink | N/A |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | Black |
| Number of Silkscreen | 1 |
| |
| Mininum Trace (mil) | 10 mil |
| Minimum Gap(mil) | 10 mil |
| |
| Surface Finish | HASL Lead free |
| RoHS Required | Yes |
| Warpage | 0.18% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles. No delamination, no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
Outline dimension Unit: mm| NO. | Required Dimension (toerance) | Actual dimension |
| 1 | 269.40 | ±0.15 | 269.41 | 269.40 | 269.39 | 269.41 |
| 2 | 128.50 | ±0.15 | 128.49 | 128.51 | 128.50 | 128.48 |
Hole Size and Slot Dimension (mm)| NO. | Requerment Dimension (tolerance) | PTH/NPT | Actual dimension |
| 1 | 1.600 | ±0.05 | N | 1.575 | 1.615 | 1.600 | 1.575 |
| 2 | 2.000 | ±0.05 | N | 2.975 | 2.015 | 2.970 | 2.010 |
MCPCB Capability
Metal core PCB's are thermal management circuit boards which use a base metal material as the heat radiator part of the PCB. They are used in high heat generating application like LED lighting in the area of high power LED lighting, Automotive Interior, Exterior Lighting, Parking Garage Lighting, LED spot light etc. The metal core can be aluminum (aluminum core PCB) and copper (copper core PCB). The most common used aluminum core PCB is the thermal conductivity at 1W/MK and 2W/MK.| NO. | Parameter | Value |
| 1 | Type of Metal Core | Aluminum, Copper, Iron |
| 2 | Model of Metal Core | A1100, A5052, A6061, A6063, C1100 |
| 3 | Surface Finish | HASL, Immersion Gold, Immersion Silver, OSP |
| 4 | Thickness of Surface plating | HASL: Sn>2.54µm, ENIG: Au 0.025-0.1µm, Ni 2.5-5µm |
| 5 | Layer Count | 1-4 Layers |
| 6 | Maximum of Board Size | 23" x 46" (584mm×1168mm) |
| 7 | Mininum of Board Size | 0.1969" x 0.1969" (5mm×5mm) |
| 8 | Board Thickness | 0.0157" x 0.2362" (0.4-6.0mm) |
| 9 | Copper Thickness | 0.5OZ(17.5µm),1OZ(35µm),2OZ(70µm),3OZ(105µm),4OZ(140µm) |
| 10 | Minimum Track Width | 5mil (0.127mm) |
| 11 | Minimum Space | 5mil (0.127mm) |
| 12 | Minimum Hole Size | 0.0197" (0.5mm) |
| 13 | Maximum Hole Size | No limit |
| 14 | Minimum Holes Punched | PCB thickness <1.0mm: 0.0394" (1.0mm) |
| PCB thikness 1.2-3.0mm: 0.0591" (1.5mm) |
| 15 | PTH Wall Thickness | >20µm |
| 16 | Tolerance of PTH | ±0.00295" (0.075mm) |
| 17 | Tolerance of NPTH | ±0.00197" (0.05mm) |
| 18 | Deviation of Hole Position | ±0.00394" (0.10mm) |
| 19 | Outline Tolerance | Routing: ±0.00394" (0.1mm) |
| Punching: ±0.00591" (0.15mm) |
| 20 | Angle of V-cut | 30°, 45°, 60° |
| 21 | V-cut Size | 0.1969" x 47.24" (5mm×1200mm) |
| 22 | Thickness of V-cut Board | 0.0236" x 0.1181" (0.6-3mm) |
| 23 | Tolerance of V-cut Angle | ±5º |
| 24 | V-CUT Verticality | ≤0.0059" (0.15mm) |
| 25 | Minimum Square Slots Punched | PCB thickness < 1.0mm: 0.0315" x 0.0315" (0.8 x 0.8mm) |
| PCB thickness 1.2-3.0mm: 0.0394" x 0.0394" (1.0 x 1.0mm) |
| 26 | Minimum BGA PAD | 0.01378" (0.35mm) |
| 27 | Minimum Width of Solder Mask Bridge. | 8mil (0.2032mm) |
| 28 | Minimum Thickness of Solder Mask | >13µm (0.013mm) |
| 29 | Insulation Resistance | 1012ΩNormal |
| 30 | Peel-off Strength | 2.2N/mm |
| 31 | Solder float | 260ºC 3min |
| 32 | E-test Voltage | 50-250V |
| 33 | Thermal Conductivity | 0.8-8W/M.K |
| 34 | Warp or Twist | ≤0.5% |
| 35 | Flammability | FV-0 |
| 36 | Minimum Height of Component indicator | 0.0059"(0.15mm) |
| 37 | Minimum Open Solder Mask on Pad | 0.000394" (0.01mm) |
