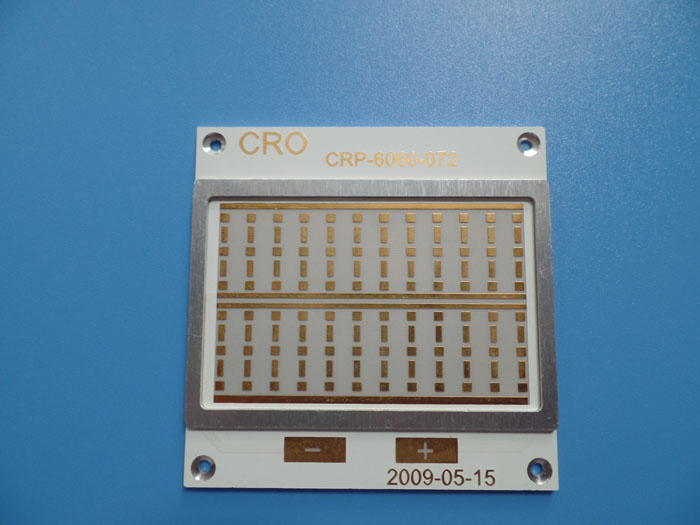

Aluminum PCB Single Sided Board Electroless Nickel Over Immersion Gold
| Price: |
US $ 2.65/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1258R1.2 |
| Board Thick: |
1.6mm |
| Copper Thick: |
1 Oz |
| Minimum Trace And Space: |
16 Mil/18 Mil |
| Solder Mask Color: |
White |
| Minimum/Maximum Holes: |
3.3/7.5mm |
| Surface Finish: |
Immersion Gold |
| Legend Color: |
No Silkscreen Required |
| Board Plating: |
0.0030" |
| Contour: |
Aluminum Frame |
| Test: |
100% Passed |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Aluminum |
| Dielectric: |
Aluminum 5052 |
Product Description
Aluminum PCB Single Sided MCPCB 5052 AL Composite Structure Applied In Led Lights
Commodity Introduction

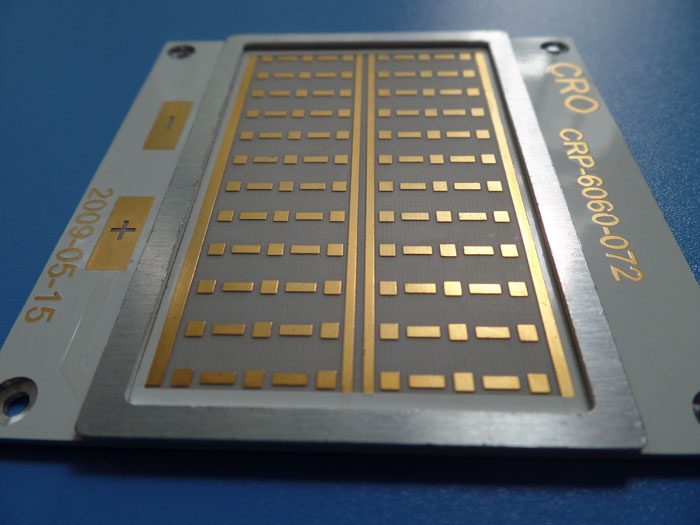

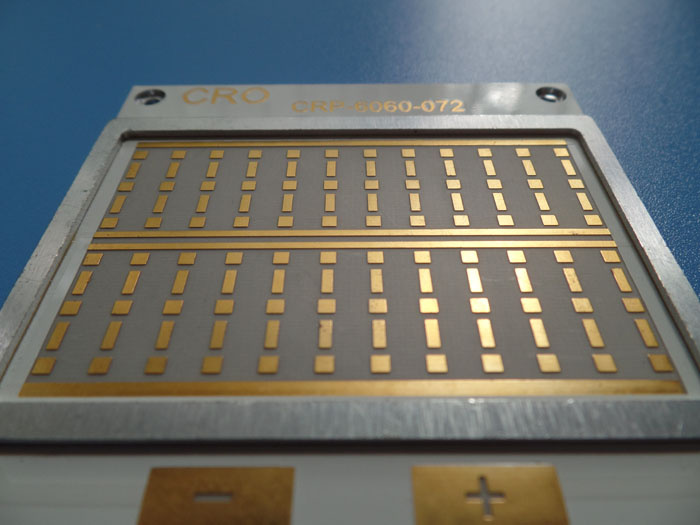

This is a type of Aluminum Base PCB for the application of LED Light. It's a single sided layer board
at 1.6mm thick. The base laminate is from ITEQ, Solder mask from Taiyo. It's fabricated per IPC
6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 60 x 60mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Single sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz) |
| 1W/MK dielectric material |
| Aluminum 5052 |
| TECHNOLOGY | |
| Minimum Trace and Space: | 16mil/17mil |
| Minimum / Maximum Holes: | 3.3/7.5mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 4 |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Thermal conductivity | 1W/MK dielectric material, MCPCB |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Electroless nickel over Immersion Gold
(ENIG)( 1 µ" over 100 µ" nickel) |
| Solder Mask Apply To: | Top. 12µm Minimum. |
| Solder Mask Color: | White,PSR400 WT02 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, aluminum frame conbined
with aluminum PCB |
| MARKING | |
| Side of Component Legend | no silkscreen required |
| Colour of Component Legend | no silkscreen required |
| Manufacturer Name or Logo: | no silkscreen required |
| VIA | no via |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | LED light, Repeater Wifi
Gps Tracker For Kids
Bluetooth USB Adapter
Car Tracking Device
Bluetooth Adapter For Pc |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Adventages
1. Delivery on time: >98%
2. Customer complaint rate: <1%
3. Focus on your core competencies: We've deeply known it is full of fierce competition for our customers in the market. You can focus on such important competencies as research and
development, sales and marketing based on our professional performance and skilled services
that exceeding your expectation.
4, Cutting-edge technology: it is rational for a small and medium-sized customer to hanker after
the latest equipment and manufacturing expertise for its PCBs. By the partnerships with Bicheng
PCB, you gain access to reach your expectation with our 3 factory bases with over 26,000 square
meters.
FAQ
How do you pack the PCBs?
PCBs are packed with Polyethylene air cushion film (vacuum plastic bags) per 20-25 pieces.
Pearl cotton (Polyethylene foamed sheet) are put inside carton box.
The hardness of carton box is KK grade (the highest hardness). Maximum gross weight for one
carton is less than 12 kgs.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
