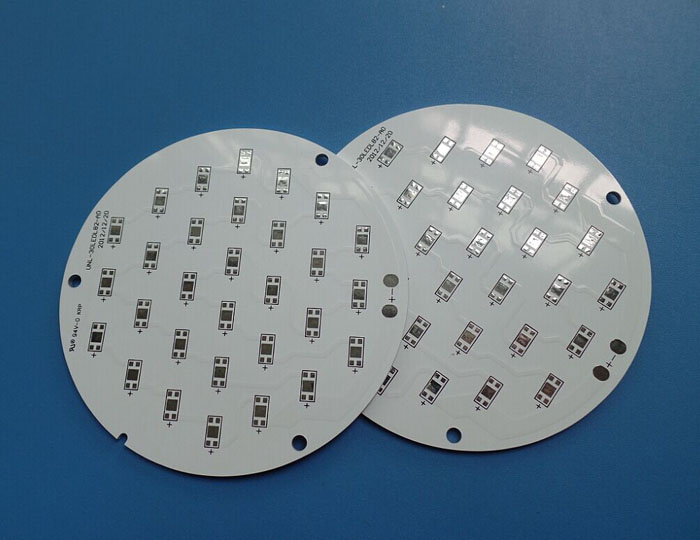

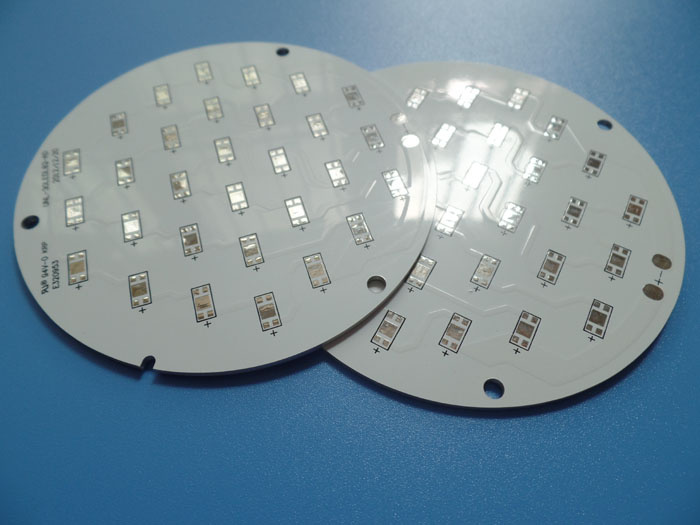

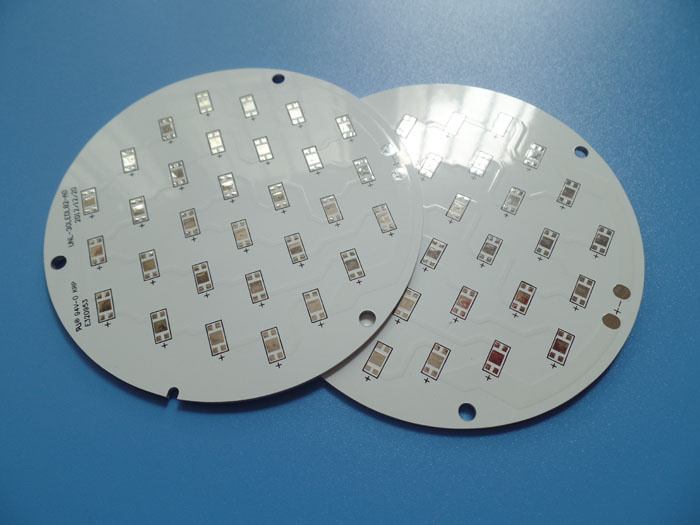

Aluminum PCB Single Sided LED Board in LED Flood Light
| Price: |
US $ 1.18/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-117-V1.17 |
| Aluminum Core: |
1W / Mk Dielectric Material 75um |
| Thermal Resistance(°c/W): |
≤0.45 |
| Breakdown Voltage(VDC): |
4000 |
| Final Foil External: |
1 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Hot Air Soldering Leveling(HASL), Lead Free |
| Solder Mask Color: |
White, Taiyo Psr400 Wt02 |
| Colour Of Component Legend: |
Black |
| Via: |
Non Plated Throught Hole (Npth) |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Aluminum |
| Dielectric: |
Aluminum 1060 |
Product Description
Single Sided MCPCB Aluminum PCB 1W/MK HASL Lead Free Applied In Led Flood Light
Commodity IntroductionThis is a type of Aluminum PCB for the application of Led Flood Light. It's a single sided layer board at 1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Cla
-ss 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 70 x 70mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Single sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35 um(1 oz) |
| 1W/MK dielectric material 75 um |
| Aluminum 1060 1.6mm |
| TECHNOLOGY | |
| Minimum Trace and Space: | 18 mil/23 mil |
| Minimum / Maximum Holes: | 3.0/6.1mm |
| Number of Different Holes: | 2 |
| Number of Drill Holes: | 0 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Aluminum core: | 1W / MK dielectric material 75 um |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Final foil external: | 1 oz |
| Final foil internal: | 0 oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Hot air soldering leveling(HASL),lead free, Sn>=2.54 µm |
| Solder Mask Apply To: | TOP, 12micron Minimum |
| Solder Mask Color: | White, Taiyo PSR400 WT02 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Non Plated Throught Hole (NPTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Led flood light, 1500 Watt Inverter
Battery Inverter
Gsm Signal Booster
Bluetooth USB Hub
Phase Shifter |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
