Aluminum PCB Single Sided Metal Core PCB 1.2mm LED Board
| Price: |
US $ 1.01/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-116-V1.16 |
| Aluminum Core: |
2W/Mk Dielectric Material 75um |
| Final Foil External: |
1 Oz |
| Final Height Of PCB: |
1.2mm |
| Surface Finish: |
Hot Air Soldering Leveling(HASL), Lead Free |
| Solder Mask Color: |
White |
| Colour Of Component Legend: |
Black |
| Minimum Trace and Space: |
19 Mil/21 Mil |
| Minimum / Maximum Holes: |
3.0/5.6mm |
| Board Plating: |
0.0029" |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Material: |
Aluminum |
| Dielectric: |
Aluminum 5052 |
Product Description
Aluminum PCB Single Sided Metal Core PCB Thermal Conductivity At 2W/MK HASL Lead Free Applied In Led Bulb Light

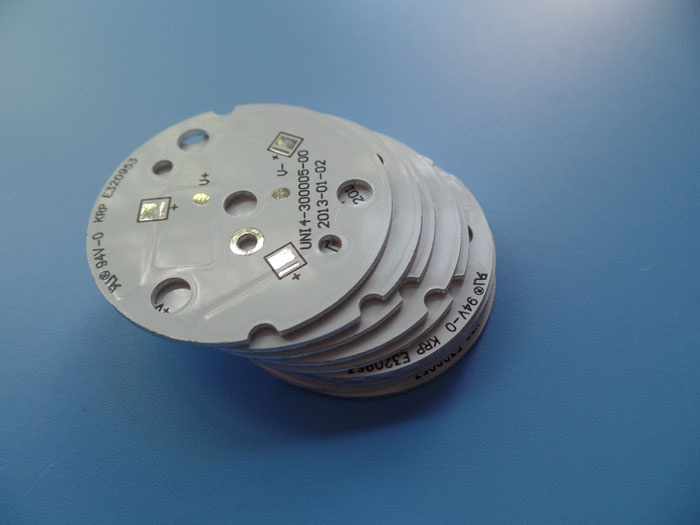

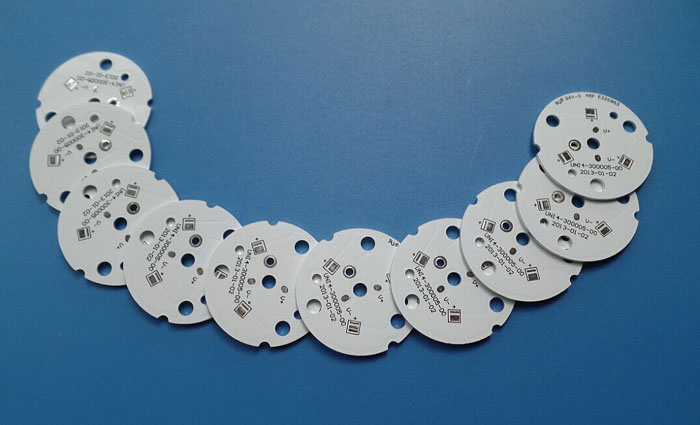

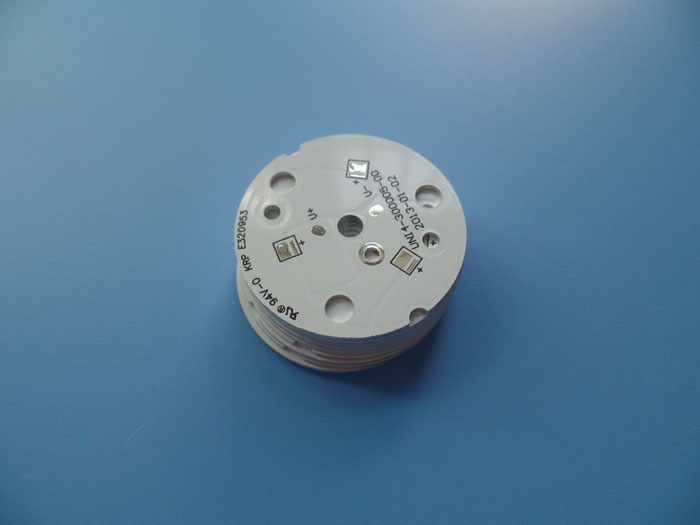

Commodity IntroductionThis is a type of Aluminum PCB for the application of Led Bulb Light. It's a single sided layer board at 1.2mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012
Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 30 x 30mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Single sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz) |
| 2W/MK dielectric material 75um |
| Aluminum 5052 1.2mm |
| TECHNOLOGY | |
| Minimum Trace and Space: | 19mil/21mil |
| Minimum / Maximum Holes: | 3.0/5.6mm |
| Number of Different Holes: | 3 |
| Number of Drill Holes: | 0 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Aluminum core: | 2W/MK dielectric material 75um |
| Thermal resistance(°C/W) | ≤0.45 |
| Breakdown Voltage(VDC) | 4000 |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.2mm ±0.12 |
| PLATING AND COATING | |
| Surface Finish | Hot air soldering leveling(HASL),lead free, Sn>=2.54µm |
| Solder Mask Apply To: | TOP, 12micron Minimum |
| Solder Mask Color: | White, Taiyo PSR400 WT02 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Non Plated Throught Hole (NPTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Led bulb light, Wi Fi Antenna
AC Drives
USB Modems
1000 Watt Inverter
ABB Drives |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Now let's look at what Bicheng PCB can help you.A. Various kinds of PCB products- Double sided PCB
- Multilayer PCB up to 32 layers
- FR-4 PCB (Tg130, Tg170)
- High frequency PCB (RO4350B, RO4003C)
- Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
- Flexible PCB
B. Multiple technology on PCB- Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
- Impedance controlled PCB
- Heavy copper PCB
- Hybrid material PCB
C. Many discount policies for new customers- SMT stencil foil, free of charge
- Prototype shipping cost, free of charge
- Prototype test, free of charge
- PCB panelization, free of charge
D. High quality PCB services- Prototype PCB and production PCB
- Quick turn-around prototypes
- Door to door logistic service
- Hassle-free, one-to-one service
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
