| Prod Model: |
LYD-LK44 |
| Net Weight: |
117g |
| Output Current: |
<4A(Each Circuit) |
| Output: |
3 CMOS Open Drain Output |
| Static Power Consumption: |
<1W |
| Connection Mode: |
Common Anode |
| Application: |
Audio / Video Players |
| Signal Transmission: |
IR Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Battery Type: |
Button Battery |
| Voltage: |
DC5V, 12V~24voptional |
| Material: |
Aluminum |
Product Description
Basic Info| place of origin: | Shenzhen,China |
| output: | 3 CMOS Open drain Output |
| output current: | <4A(each circuit) |
| Connection mode: | Common anode |
| Static power consumption : | <1w |
| Output Power: | 5V:<60W, 12V:<144W, 24V:<288W |
| Net weight: | 117g |
| Brand name: | louita |

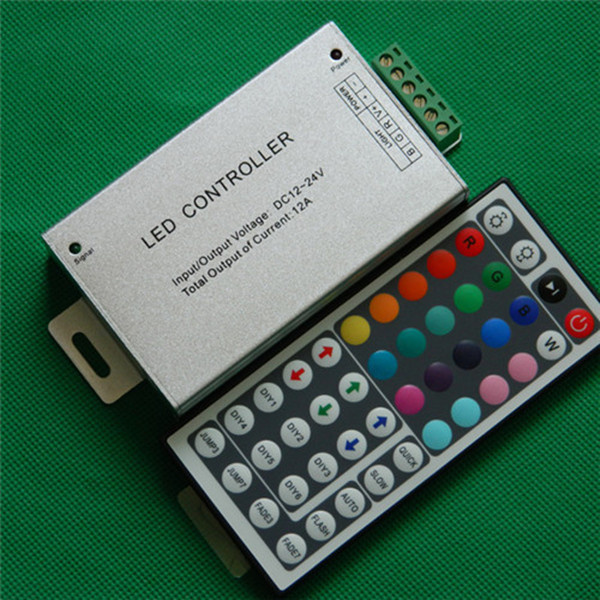

Product DescriptionInfrared aluminum shell 44 key infrared controller (upgrade) adopts advanced microcomputer control, used tocontrol a variety of the LED light source which has the advantages of simple connection, convenient to use;can speed adjustment, brightness adjustment by the infrared remote controller, DIY color, color selection andvarious static dynamic lighting effect.
Technical Specification:Model: 44 keys Aluminum LED controller
*Working temperature: -20-60ºC
*Power Supply:DC5V~24V Optional(PWM)
*Function Model:34 models
* Output:3circuits
*Connecting Model:common Anode or cathode(optional)
*External Dimension:L95ΧW89ΧH26 mm
*Net Weight:160g
*Static Power Consumption:<1W
*Load Current:4A/ch
*Output power:5V<60W,12V<144W,24V<288W
Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
| Brightness rise | Brightness fall | Pause/Run | On/Off |
| Static red | Static green | Static blue | Static white |
| Static orange | Static light green | Static dark blue | Static milk white |
| Static dark yellow | Static cyan | Static Lyons blue | Static white pink |
| Static yellow | Static light blue | Static purple | Static green-white |
| Static light yellow | Static sky blue | Static brown | Static blue white |
| Increase red | Increase green | Increase blue | Speed up |
| Decrease red | Decrease green | Decrease blue | Speed-down |
| DIY key1 | DIY key2 | DIY key3 | Automatic change |
| DIY key4 | DIY key5 | DIY key6 | Flash on and off |
| 3 color jumpy change | 7 color jumpy change | 3 color fade change | 7 color fade change |
*Operation: you will receive infrared remote control in front of infrared receiver to ensure that there is no barrier between the remote controller and receiver.
Caution:1. Supply voltage of this product is DC12V, never connect to others or AC220V.
2. Before using the infrared remote, the insulating film should removed.
3. Lead wire should be connected correctly according to grade that connecting diagram offers.
4. This product is not to overload;
Connecting Diagram:
