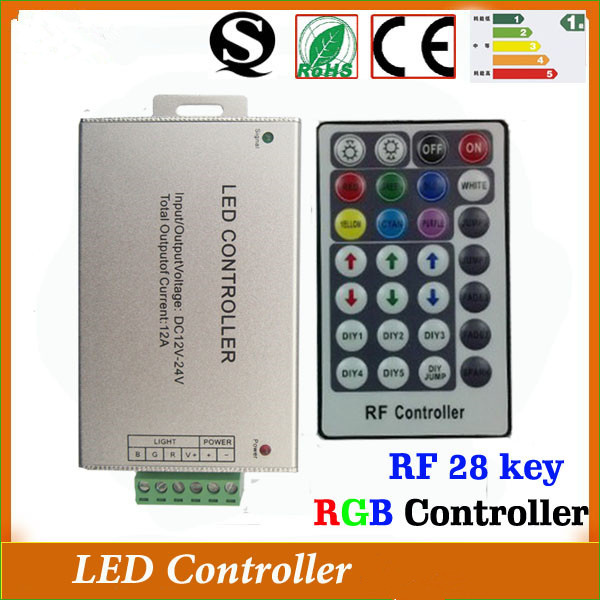

Aluminum Shell RF 28 Key Controller

Prod Model:	LYD-RFL28
Connection Mode:	Common Anode
Static Power Consumption:	<1W
Output:	3 CMOS Open Drain Output
RF Frequency:	433.92MHz
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Battery Type:	Button Battery
Material:	Aluminum
Voltage:	DC5V, 12V~24voptional

Product Description

Basic Info

place of origin:	Shenzhen,China
output:	3 CMOS Open drain Output
output current:	<4A/CH  or  <8A/CH (optional)
Connection mode:	Common anode
Static power consumption	<1w
Output Power:	4A -5V:<60W,  12V:<144W,  24V:<288W
Net weight:	133g
Brand name:	louita

Product Description
This Aluminum RF 28 Keys RGB controller adopted the advanced computer control chip. Its mainly used to controlled all kinds of constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with easy connection,simple manipulation and power off memory function.User can choose the 7 color jump, fade,fash mode ,and the lights brightness are adjustable according to the user actual requirement.

Technical Parameters:
1.Working temperature:-20-60°C
2.Input voltage:DC12~24V
3.Output:3 circuit
4.Connection mode:Common anode
5. Controller size:L130×W65×H25mm
6.package size:L135×W80×H54mm
7.Net weight:190g
8.Gross weight:210g
9.Static power consumption:<1W
10.Output current:<4A/ch  or <8A/ch (optional)
11.Output power: 12V/4A < 144W;12V/8A< 288W;24V/4A< 288W;24V/8A< 576W


Brightness +	Brightness -	pause	ON/OFF
Static red	Static green	Static blue	Static white
Static orange	Static cyan	Static dark blue	milk-white
Static yellow	Static light blue	Static purple	Green-white
Static light yellow	Static sky blue	Static brown	Blue-white
Red brightness +	Green brightness +	Blue brightness +	Speed +
Red brightness -	Green brightness -	Blue brightness -	Speed -
DIY 1	DIY 2	DIY 3	Auto
DIY 4	DIY 5	DIY 6	stroboflash
3 color jump	7 color jump	3 color fade	7 color fade

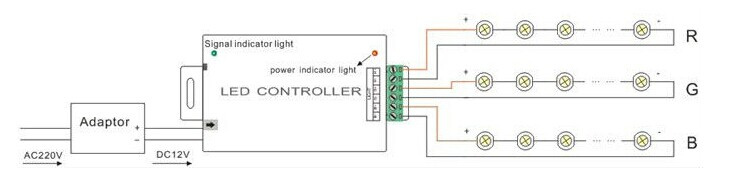

 series connection

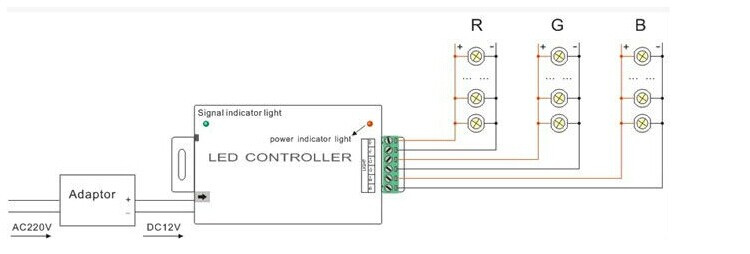

Parallel connection


This RF28keys controller have match code version and not match code version for optional.For the match code version, if you want to match code again, just simply need to press Red buttonwithin 5 seconds when power the controller.(remarks:this function just for the match code version only)

FAQ
1. Q: What payment method do you accept?
    A: We accept bank transfer(T/T),  Paypal.
2. Q: What is lead time?
    A: 2-5 working days after order confirmed
3. Q: Is small order available?
    A: Yes, we do not only supply wholesale order, but also small order for retailers.
4. Q: Will you provide the after-sales?
    A: Of course, if our products have any problems, you can ship to us, then we will send the new pieces to you.
