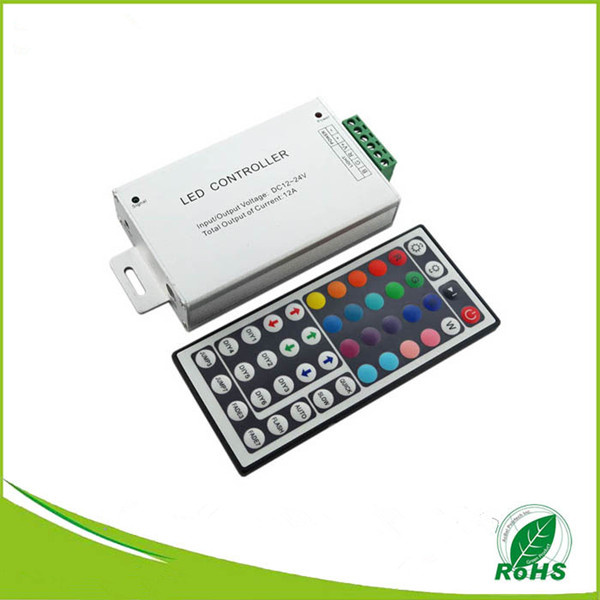

Aluminum Shell RF 44 Keys RGB Controller

Prod Model:	LYD-RFL44
Connection Mode:	Common Anode
Static Power Consumption:	<1W
Output:	3 CMOS Open Drain Output
Output Current:	<4A/CH or <8A/CH
RF Frequency:	433.92MHz
Application:	Audio / Video Players
Signal Transmission:	RF Remote Control
Type:	Button
Certification:	CE
Universal:	Universal
Transmission Distance:	<50m
Battery Type:	AAA Battery
Voltage:	DC5V, 12V~24voptional
Material:	Aluminum

Product Description

Basic Info

place of origin:	Shenzhen,china
output:	3 CMOS Open drain Output
output current:	<4A/CH  or  <8A/CH (optional)
Connection mode:	Common anode
Static power consumption :	<1w
Output Power:	4A -5V:<60W,  12V:<144W,  24V:<288W
Supply Voltage:	DC5V, 12V~24VOptional(pls specify the required voltage on orders)

Product Description
44-key aluminum wireless RF controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless RF remote control. In addition, customers can adjust their light color as they like.


Technical Parameter
Working temperature:-20~60ºC
Supply voltage:DC12V~24V
Output:3 Channel
Connection mode:Common anode
Controller size:L85×W45×H23mm
Net weight:185g
Static power consumption:<1W
Output current:4A/CH  or 8A/ch
Output power: 12V/4A < 144W;12V/8A< 288W;24V/4A< 288W;24V/8A< 576W

LYD To You
1.   Rich export experience for more than 2 years.
2.   Factory direct sales.
3.   OEM & ODM are welcome.
4.   Sample can be supplied in 5 days.
5.   High quality, complete kinds, good stability, strong practicability.
6.   Good after-sales service & point to point technical supports.
7.   Energy saving, long using life.
8.   Widely used in hotel, office, hospital, market, home, outdoor, indoor, hall, stage, etc.

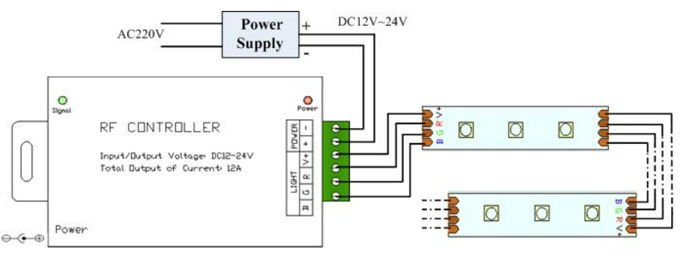

Connecting Diagram


Trade terms/Services
1.Paypal for small orders and T/T 30% deposit 70%payment for big orders
2.No MOQ set for sample order.
3.Lead time: 3-7 days for sample order,10 to 15 days after large order
4.Shipping methods: by international express.
5.Shipping freight are quoted under your requests.
6.Shipping Port: Shenzhen, China
7.Discounts are offered based on order quantities
8. Your inquiy related to our products or prices will be replied in 24hrs
9. Protection of your sales area, ideas of design and all you provide information
10. Good before and after sales service.
11. A large stock at least 500pcs
Packaging&Shipping
