| Prod Model: |
LYD-6 |
| Working Temperature: |
-20 - 60 |
| Net Weight: |
150g |
| Gross Weight: |
183G |
| RF Frequency: |
433.92MHz |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Battery Type: |
AAA Battery |
| Voltage: |
DC5V, 12V~24voptional |
| Material: |
Aluminum |
Product Description
Basic Info| place of origin: | Shenzhen,China | brand name: | louita | model no. | LYD-6 |
| net weight: | 150g | RF frequency: | 433.92Mhz | Connection mode: | Common anode |
| Package sizes: | 135*80*55mm | Static power consumption : | <1w | | |

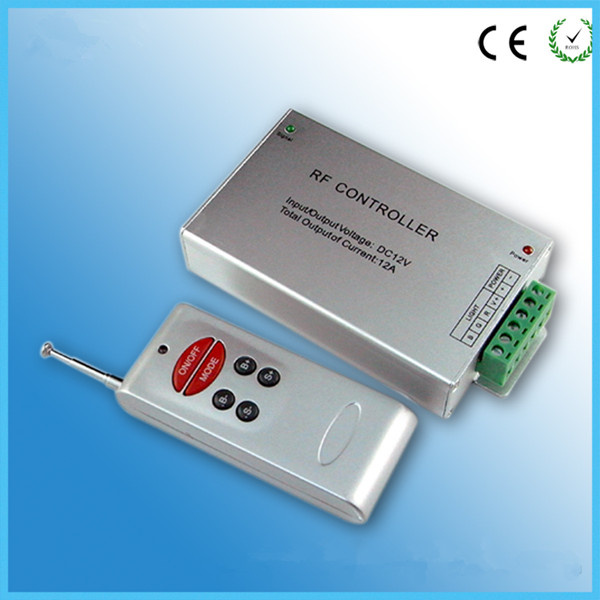

Product DescriptionThis RF 6-key RF controller adopts the advanced micro control unit, it is used for controlling a variety of constant voltage LED lights. For instance, led source , flexible led strip, wall washer, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless remote control. And according to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
Summarization:
RF audio controller adopts the advanced micro control unit, it is used for controlling a variety of lamp wh-ose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection, simplicity to use and others. According to actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
Specifications:Working temperature: -20-60 ºC
Supply voltage: DC12~24V
Product size: L128×W64×H25 mm
Package size: L137×W82×H45mm
Net weight: 185g
Gross weight: 215g
Output: Three CMOS drain- open output

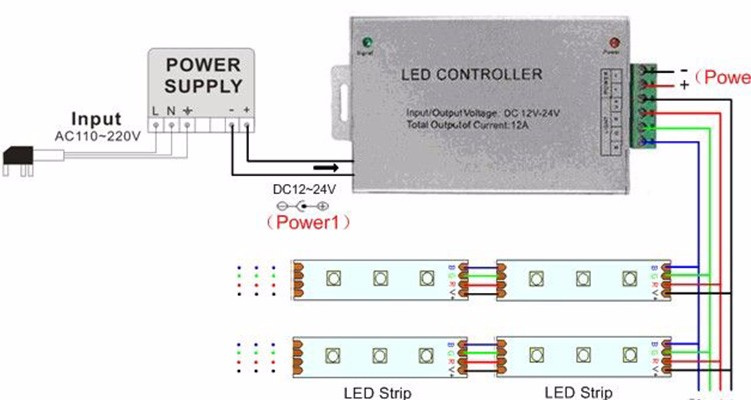

Connecting Mode: Common anode
Max load current: 4 A each color
Control Method:Adopt wireless control method, function of each button as below:
On/off: The output switch;
Mode: is the style/color function key, could choose different color changes, 15changes in total;
B+: controls the brightness of output signal, each press brightness level+1, 256 levels in total;
B -: each press brightness level - 1;
S+: each press changing speed +1, 100 levels in total;
S -: each press changing speed -1.
| o | Patterns | Remarks | No | Patterns | Remarks |
| 1 | Static red |
Brightness is adjustable, Speed is unadjustable. | 12 | Red stroboflash |
Speed and
Brightness
are adjustable |
| 2 | Static blue | 13 | Blue stroboflash |
| 3 | Static purple | 14 | Purple stroboflash |
| 4 | Static green | 15 | Green stroboflash |
| 5 | Static yellow | 16 | Yellow stroboflash |
| 6 | Static cyan | 17 | Cycan stroboflash |
| 7 | Static white | 18 | White stroboflash |
| 8 | Three-color jumpy changing | Speed and brightness are adjustable | 19 | R/B cross-fade |
Speed is adjustable,
brightness is unadjustable |
| 9 | Seven-color jumpy changing | 20 | B/G cross-fade |
| 10 | Three-color gradual changing | Speed is adjustable, brightness is unadjustable | 21 | G/R cross-fade |
| 11 | Seven-color gradual changing | | |
