Aluminum Tape Armored Direct Buried Network Cable

Prod Model:	GYTA53
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Type:	G652D Single Mode
Fiber Count:	2-288
Fiber:	Single Mode
Strength Member:	Steel Wire/FRP
Loose Tube:	Stranded.Sz Stranged ,PBT Material
Armored:	Aluminium Tape/Steel Tape
Material Of Jacket:	HDPE/Lszh /Flame Retardant Sheath
Bending Radius:	Static 12.50*Cable-D: Dynamic 25*Cable-D
Temperature:	-40-+70 C
Applications:	Direct Buried
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	Other
Core:	2-288
Brand:	Efon

Product Description

Performance

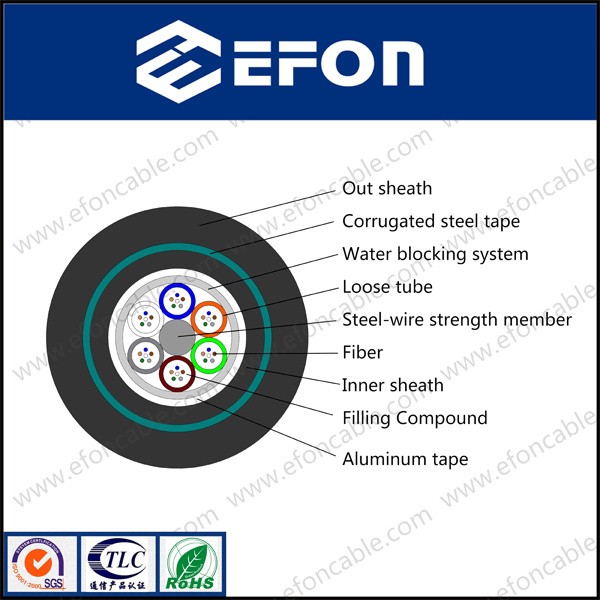

 GYTA53 8 core fiber optic cable  is an outdoor communication optical cable of metallic strength member of the loose tube jelly-filled structure, with Al-polyethylene laminated sheath longitudinally covered with corrugated steel-tape armored polyethylene outer sheath.The loose tubes are made of high modulus plastics (PBT) and filled with water resistant filling gel. Loose tubes are stranded around the metallic central strength member, cable core is filled with cable filling compound. The corrugated aluminum tape folding and polyethylene (PE) is extruded as inner sheath, then water swollen yarns and corrugated steel tape is longitudinally applied over the inner sheath, and combined with a durable PE sheath.


 Feature

1, High quality optical fiber provides good transmission performance
2, Accurate fiber excess length control ensures excellent mechanical and temperature performance
3, Special filling gel filled loose tubes provide perfect optical fiber protection
4, All section water blocking provide reliable performance of moisture-proof and water block
5, Longitudinal aluminum tape and steel tape present desirable crush resistance
6, Corrosion resistance phosphated steel wire with high Young's modulus as central strength member gives high tensile strength.
7, Strict craft and raw material control enable lifespan over 30 years


Performance
Applications: Suitable for long-distance communication and indoor communication
Way of laying: Direct burial, pipeline
Operating temperature: -40 ~ + 70 °C
Bend radius: Static 12.5x cable diameter  Dynamic 25x cable diameter


Mechanical Performance :
Max Tension Performance  : IEC 60794–1-2-E
Max. Operation Tension     : IEC 60794–1-2-E1
Crush Test                        : IEC 6079 –1-2-E3
Impact Test                      : IEC 60794–1-2-E4
Repeated Bending              : IEC 60794–1-2-E6
Torsion Test                     : IEC 60794–1-2-E7
Cable bend                        : IEC 60794–1-2-E11A
Attenuation Coefficient       : ITU-T G.652
Structural Test                  : IEC-60793-1-20
Environmental Performance
Temperature Cycling         : IEC 60794–1-2-F1
Water Penetration             : IEC 60794–1–2-F5B
Filing Compound Flow      : IEC 60794-1-E14

Technical Parameter

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fibers per Tube	No. of (Tubes+fillers)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
					Short Term	Long Term	Short Term	Long Term
2 ~ 36	13.9	202	6	6	3000	1000	3000	1000
38 ~ 72	15.1	241	12	6	3000	1000	3000	1000
74 ~ 96	17.1	290	12	8	3000	1000	3000	1000
98 ~ 120	18.6	333	12	10	3000	1000	3000	1000
122 ~ 144	20.2	381	12	12	3000	1000	3000	1000
>144	Available upon customer's request
Note: 1. For flame retardant cable, outer sheath can be made of low-smoke halogen-free (LSZH) material, and the type is GYTZS. 2.Upon customer's request, cables with longitudinal color strip on outer sheath can be offered. More details, please refer to GYTA series. 3. Special cable structure can be designed and manufactured on customer's request.
