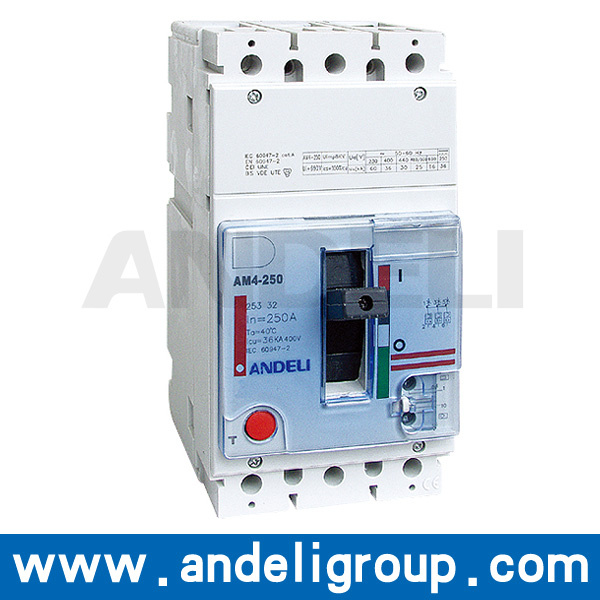

Am4 Series Moulded Case Circuit Breaker

Name: Am4 Series Moulded Case Circuit Breaker
Brand: all-electronics-online.com
SKU: 737508345
Availability: InStock
Rating: 4.7 (96 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	AM4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current In(a):	25~125, 125~250
Rated Working Voltage Ue(V) (50/60Hz):	500
Rated Working Voltage Ue(V):	250
Rated Insulation Voltage Ui~(V):	500, 690
Rated Impulse Voltage Uimp(Kv):	6, 8
Arc-extinguishing Medium:	Air
Structure:	MCCB
Breaking Capacity:	Low Voltage Circuit Breakers
Poles Number:	3
Certification:	CCC
Operation:	Manual Type
Installation:	Insert
Speed:	High-Speed Circuit Breaker

Product Description

Application

AM4 series MCCB is applicable circuit of AC 50/60Hz, rated current up to 400A, for distribute energy of electricity & infrequent making & breaking circuit in normal conditions. The products conforms to IEC60947-2.

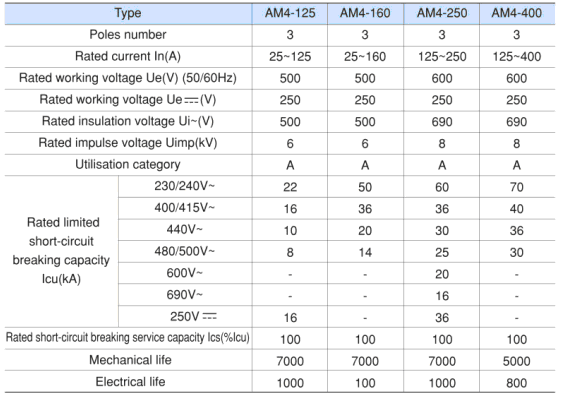

Specification

-----------------------------------------------------------------------------------

Why Choose Us?

1. 20-Year History: Andeli Group Co.,Ltd is founded in 1993.
2. Large-scale Company: Andeli have owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. Good Reputation: Andeli have over 300 cooperating companies.
4. Big Manufactory: The area of Andeli factory is 235,000 square meters.
5. High Quality: We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

About Us

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.

With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.

Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.

Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.

Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
