AMP-600 Glass Fiber Braid Mica Taped High Temperature Wire
| Price: |
Negotiable/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
AMP-600 |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Certification: |
RoHS |
| Sheath Material: |
Glass Fiber Yarn |
| Insulation Material: |
Mica Tape |
| Brand: |
Hoochan |
Product Description
CONDUCTOR
:Nickel coated copper, Pure Nickel
Insulator
:Mica taped
Jacket: Glass Fiber Braiding
High temperature resin coating
RATED TEMP.
: 450ºCPEAK TEMP: 500ºCRATED VOLTAGE
:600V
Test Voltage: 2000V. 1Min Standards Applied: * Flame retardant acc. to IEC 60332-1* No flame propagation acc. to IEC 60332-3* Low smoke emission acc. to IEC 61034* Corrosiveness of combustion gases acc. to IEC 60754-2* Halogen free acc. to IEC 60754-1Meet with RoHS, REACH rules. Characteristics:Mica tape wire is made of Mica tape as the insulation, by wrapping the tape on the conductor, then fiber glass yarn braiding layer on the Mica tape, PTFE or Special resin coating on the the jacket. This kind of cable can bear much higher temperatuer to 500C deg. The use of Mica tape, extra high temperature resistant insulation material, gives the cable excellent heat resistant and good dielectric strength. The braided synthetic yarn covering, which is applied directly over the insulation, gives the cable, because of its short braiding pitch and high compactness, an excellent mechanical protection by maintaining good flexibility. The varnishing of the braiding results in good antifriction properties, high abrasion resistance and excellent chemical resistance against transformer oil, light fuel oil and most types of cleaning agents.In the event of fire, no corrosive and toxic gases will be given off. Hence, damage caused by fire can be kept to minimum.Application: For internal wire connection of High temperature environment of electric appliance like: water heater, oven, furnace and aviation, military, etc. | Size | Conductor | Insulation thickness | Braid thickness | Wire OD | Resistance |
| AWG | section | structure | OD | Nominal | OD | Nominal | Tolerance | Ω/KM |
| NO. | mm² | No/mm | mm | mm | mm | mm | mm | mm | Max. |
| 26 | 0.128 | 7/0.16 | 0.48 | 0.65 | 1.78 | 0.18 | 2.15 | ±0.20 | 148 |
| 24 | 0.205 | 7/0.20 | 0.60 | 0.65 | 1.90 | 0.18 | 2.30 | ±0.20 | 93 |
| 22 | 0.324 | 7/0.254 | 0.76 | 0.65 | 2.06 | 0.18 | 2.45 | ±0.20 | 55 |
| 20 | 0.519 | 10/0.26 | 0.96 | 0.65 | 2.26 | 0.18 | 2.65 | ±0.25 | 34.6 |
| 18 | 0.803 | 16/0.26 | 1.20 | 0.65 | 2.50 | 0.18 | 2.90 | ±0.25 | 23.2 |
| 16 | 1.31 | 26/0.26 | 1.50 | 0.65 | 2.80 | 0.18 | 3.20 | ±0.25 | 14.6 |
| 14 | 2.08 | 41/0.26 | 1.90 | 0.65 | 3.20 | 0.18 | 3.60 | ±0.30 | 8.96 |
| 12 | 3.31 | 65/0.26 | 2.40 | 0.65 | 3.70 | 0.18 | 4.10 | ±0.30 | 5.64 |
| 47/0.30 |
| 10 | 5.26 | 100/0.26 | 3.20 | 0.76 | 4.72 | 0.38 | 5.50 | ±0.30 | 3.55 |
| 75/0.30 |
| 8 | 8.367 | 158/0.26 | 4.40 | 0.76 | 5.92 | 0.38 | 6.70 | ±0.40 | 2.30 |
| 119/0.30 |
| 7 | 10.55 | 199/0.26 | 4.60 | 0.76 | 6.12 | 0.38 | 6.90 | ±0.40 | 1.79 |
| 150/0.30 |
| 6 | 13.30 | 250/0.26 | 5.30 | 0.76 | 6.82 | 0.38 | 7.60 | ±0.40 | 1.42 |
| 189/0.30 |
| 5 | 16.77 | 238/0.30 | 6.00 | 0.76 | 7.52 | 0.38 | 8.30 | ±0.50 | 1.12 |
| 133/0.40 |
| 4 | 21.15 | 300/0.30 | 6.80 | 0.76 | 8.32 | 0.38 | 9.10 | ±0.50 | 0.89 |
| 168/0.40 |
| 3 | 26.67 | 378/0.30 | 7.60 | 0.90 | 9.40 | 0.51 | 10.4 | ±0.50 | 0.707 |
| 210/0.40 |
| 2 | 33.62 | 476/0.30 | 8.50 | 0.90 | 10.3 | 0.51 | 11.3 | ±0.60 | 0.56 |
| 266/0.40 |
| 1 | 42.41 | 600/0.30 | 9.60 | 0.90 | 11.4 | 0.51 | 12.4 | ±0.60 | 0.449 |
| 342/0.40 |
| 1/0 | 53.49 | 426/0.40 | 11.2 | 0.90 | 13.0 | 0.51 | 14.0 | ±0.60 | 0.355 |
| 276/0.50 |
| 2/0 | 67.53 | 538/0.40 | 12.2 | 0.90 | 14.0 | 0.51 | 15.0 | ±0.80 | 0.282 |
| 342/0.50 |
| 3/0 | 85.01 | 684/0.40 | 13.8 | 0.90 | 15.6 | 0.51 | 16.6 | ±0.80 | 0.223 |
| 437/0.50 |
| 4/0 | 107.2 | 855/0.40 | 15.5 | 0.90 | 17.3 | 0.51 | 18.3 | ±0.80 | 0.177 |
| 551/0.50 |
| 250kcmil | 127 | 646/0.50 | 16.8 | 1.02 | 18.84 | 0.51 | 19.9 | ±1.0 | 0.151 |
| 300kcmil | 152 | 779/0.50 | 18.5 | 1.02 | 20.54 | 0.51 | 21.6 | ±1.0 | 0.125 |
| 350kcmil | 177 | 912/0.50 | 20.0 | 1.02 | 22.04 | 0.51 | 23.1 | ±1.0 | 0.108 |
| 400kcmil | 203 | 1036/0.50 | 21.5 | 1.02 | 23.54 | 0.51 | 24.6 | ±1.0 | 0.0942 |
| 450kcmil | 228 | 1184/0.50 | 22.8 | 1.02 | 24.84 | 0.51 | 25.9 | ±1.0 | 0.0838 |
| 500kcmil | 253 | 1295/0.50 | 23.9 | 1.02 | 25.94 | 0.51 | 27.0 | ±1.0 | 0.0755 |

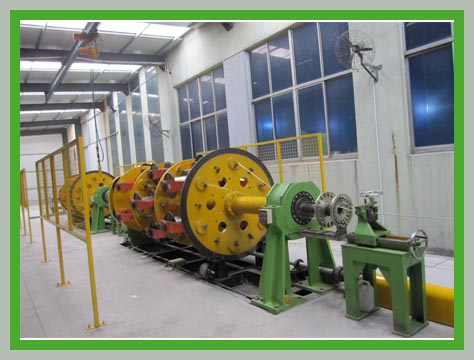

Wuxi Huacheng Cable Co., Ltd. is specialized in production of heat resistant silicone rubber wire & cable, also engaging in its R & D field, total building covers about 20000 square meters, with kinds of advanced Rubber extruding machines, Coating equipment lines, Braiding machines 1500 sets etc. After tens of year constant development, our annual output is more than 250, 000 KMS and became the famous leader and production base in domestic market.
Most of the products have passed USA UL/cUL, Germany VDE, China CCC, Japan F-MARK and ROHS Certification, completely meet with EU environment protect policy requirement, acquired ISO9001: 2000 International Quality Management & ISO14001 Environment Management Certification. All the staff exalt the tenet "Pursue truth, Honor fact, Keep Innovation", insisting on the quality policy of "Customer's wishes oriented, adopting PDCA circulation, continuously improve product and service, fully satisfying customers", based on above, our products sell well everywhere, applying to famous corporations, and even sell far to Occident, Mid-east, Southeast Asia countries and area, acquire good reputation and approval of customers.
More than hundreds of series of products are optional for customer's choice, mainly used for new energy, wind power motor, metallurgy, power, railway, home electrical appliance, lighting relative fields.
