| Prod Model: |
JGGP1.1/3.3/6.6/13.8KV |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
6.0mm2-300mm2 |
| Color: |
Available for Refernce |
| Voltage Range: |
AC1.1kv-13.8kv |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
Silicone Rubber |
| Certification: |
VDE |
| Brand: |
Hoochan |
Product Description

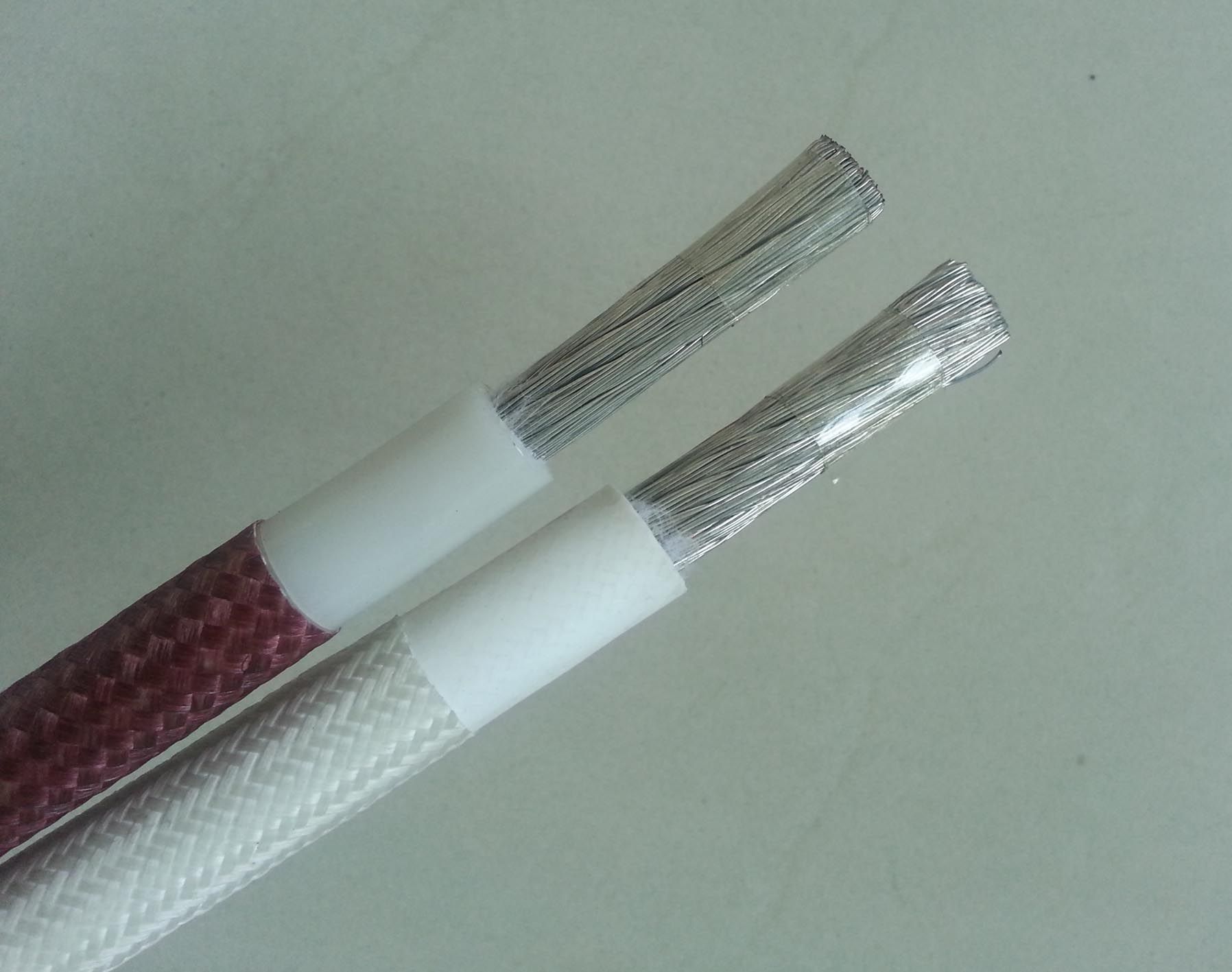

(a) Conductor: Bare copper, tinned annealed copper, silver, nickel coated copper
Tinned copper is ≥ 99.99% high pure copper rods, drawn into designed copper strands, the tin is coated on bare copper, tin thickness is about 7-8 μ M. Meet with environment protection rules. Meet with IEC standards class 5, flexible and high conductivity.
(b) Insulator: Silicone rubber compound
We adopted different brands of raw materials of silicone rubber, like GE, WACKER, Blue Star etc., Silicone rubber have good performance: Low hardness, high tear strength, flame retardant, Flexibility, Thermal stable, can bear from -60 ~ +200C
(c) Braiding layer: Fiber glass yarn, it's made of Non-alkali & Non-wax fiber glass yarn, single yarn dia. Is 8 μ M, tensile strength is 0.62N/tex. Yarn twist is 90 r/m...Fiber glass is good in anti-corrosion and abrasion resistant and also heat resistant to 500C degree.
(d) Jacket: The out layer is treated by silicone resin coating, resin adopted Japanese Toshiba brand, enhanced in good dielectric strength and make cable wire with more smooth surface, even color. It's also improved insulation electrical characters.
(e) Application: Fiber glass braid silicone rubber wire is good for heat resistant, used in high temperature environment of electrical appliance like: Cooker, iron, washing machine, air conditioner. It's also used for electric motor leading cable, lighting, transformer; Wire harness, inner connection use etc.
Technical data:
(1)Voltage range: 1.1kV-13.8kV
(2)Temperature rating: -60 ~ +200C degree
(3)Voltage test: 3kV~ 30kV
(4)Spark test: 4kV~ 40KV
(5)Color: Red, white, yellow, green, blue, black, transparent, double-color etc.
(6)We accept customer's OEM request for any wire
Items | Technical datas | Applied standard |
Outer appearance | Smooth, even | UL758 UL62 UL1581 |
Spark test | AC27.6KV/0.15 S |
Vol. test | 28.6KV/1 min |
Insulate Mechanical characters | Before aging | Tensile strength | ≥3.45N/mm² |
Break elongation rate | ≥100% |
After aging 150ºC (158±1ºC×1440h) 180ºC (210±1ºC×1440h) | Tensile strength | 60% of the tensile strength (before aging) |
Break elongation rate | 25% of the elongation rate (before aging) |
combustion test | FT2 |
Poisonous substance control | Comply with ROHS rule | EU-2002/95/EC |
AWM 3643 150/180ºC 13800V
| AWG | Conductor | Wire diameter | Max Resistance |
| Spec | Structure | Diameter | Nominal | Tolerance |
|
| NO. | mm² | /mm | mm | mm | mm | Ω/KM |
| 16 | 1.31 | 7/0.49 | 1.55 | 9.10 | +0.30 -0.20 | 14.6 |
| 26/0.254 |
| 52/0.18 |
| 15 | 1.65 | 33/0.254 | 1.75 | 9.30 | +0.30 -0.20 | 11.3 |
| 14 | 2.08 | 41/0.254 | 1.95 | 9.50 | +0.30 -0.20 | 8.96 |
| 7/0.62 |
| 37/0.26 |
| 13 | 2.63 | 52/0.254 | 2.15 | 9.70 | +0.30 -0.20 | 7.10 |
| 12 | 3.31 | 65/0.254 | 2.5 | 10.10 | +0.40 -0.20 | 5.64 |
| 43/0.32 |
| 11 | 4.17 | 83/0.254 | 2.74 | 10.40 | +0.40 -0.20 | 4.48 |
| 34/0.40 |
| 10 | 5.261 | 35/0.45 | 3.20 | 10.8 | +0.40 -0.20 | 3.55 |
| 9 | 6.631 | 53/0.40 | 3.98 | 11.6 | +0.40 -0.20 | 2.81 |
| 8 | 8.367 | 70/0.40 | 4.40 | 12.0 | +0.40 -0.20 | 2.30 |
| 7 | 10.55 | 84/0.40 | 4.60 | 12.2 | +0.40 -0.20 | 1.79 |
| 6 | 13.30 | 105/0.40 | 5.30 | 13.4 | +0.40 -0.20 | 1.42 |
| 5 | 16.77 | 133/0.40 | 6.00 | 14.1 | +0.40 -0.20 | 1.12 |
| 4 | 21.15 | 168/0.40 | 6.80 | 14.9 | +0.40 -0.20 | 0.89 |
| 3 | 26.67 | 213/0.40 | 7.60 | 15.7 | +0.40 -0.20 | 0.707 |
| 2 | 33.62 | 266/0.40 | 8.50 | 16.6 | +0.40 -0.20 | 0.56 |
| 1 | 42.41 | 217/0.50 | 9.60 | 17.7 | +0.40 -0.20 | 0.449 |
| 1/0 | 53.49 | 276/0.50 | 11.2 | 19.5 | +0.40 -0.20 | 0.355 |
| 2/0 | 67.43 | 342/0.50 | 12.2 | 20.5 | +1.0 -0.50 | 0.282 |
| 3/0 | 85.01 | 437/0.50 | 13.8 | 22.1 | +1.0 -0.50 | 0.223 |
| 4/0 | 107.2 | 551/0.50 | 15.5 | 23.8 | +1.0 -0.50 | 0.177 |
| 250kcmil | 127.0 | 646/0.50 | 17.5 | 25.8 | +1.0 -0.50 | 0.151 |
| 300kcmil | 152.0 | 779/0.50 | 19.5 | 27.8 | +1.0 -0.50 | 0.125 |
| 350kcmil | 177.0 | 912/0.50 | 21.0 | 29.3 | +1.0 -0.50 | 0.108 |
| 400kcmil | 203.0 | 1036/0.50 | 23.0 | 31.3 | +1.0 -0.50 | 0.0942 |
Wuxi Huacheng Cable Co., Ltd. is specialized in production of heat resistant silicone rubber wire & cable, also engaging in its R & D field, total building covers about 20000 square meters, with kinds of advanced Rubber extruding machines, Coating equipment lines, Braiding machines 1500 sets etc. After tens of year constant development, our annual output is more than 250, 000 KMS and became the famous leader and production base in domestic market.
Most of the products have passed USA UL/cUL, Germany VDE, China CCC, Japan F-MARK and ROHS Certification, completely meet with EU environment protect policy requirement, acquired ISO9001: 2000 International Quality Management & ISO14001 Environment Management Certification. All the staff exalt the tenet "Pursue truth, Honor fact, Keep Innovation", insisting on the quality policy of "Customer's wishes oriented, adopting PDCA circulation, continuously improve product and service, fully satisfying customers", based on above, our products sell well everywhere, applying to famous corporations, and even sell far to Occident, Mid-east, Southeast Asia countries and area, acquire good reputation and approval of customers.
More than hundreds of series of products are optional for customer's choice, mainly used for new energy, wind power motor, metallurgy, power, railway, home electrical appliance, lighting relative fields.
