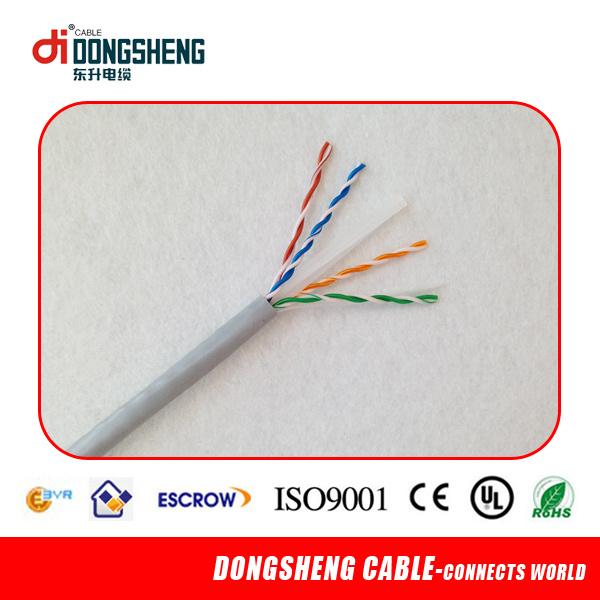

Name: AMP CAT6 Network Cable UTP Cableamp CAT6 Patch Cable
Brand: all-electronics-online.com
SKU: 768940745
Availability: InStock
Rating: 4.5 (57 reviews)

Price:	US $ 0.05-0.12/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	30000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	AMP Cat6 Network Cable UTP Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket:	PVC,PE
Jacket Color:	White, Gray, Black, Yellow, Brown, Red
Conductor Size:	28AWG, 26AWG, 24AWG, 23AWG, 22AWG
Delivery Detail:	2 Weeks for One Container
Spec:	Available on Request
Application:	LAN Cable
Conductor Material:	Copper
Cover Material:	PE
Type:	Cat 6
Certification:	UL
Brand:	DSC

Product Description

AMP Cat6 Network Cable UTP Cable

Tips: We can ensure the cable pass FLUKE TEST 100% for CU conductor, with a high performance in your Cabling solution, or project.
1.Certification: CE. RoHS,REACH,ISO Listed.
2.Compliance: ETL verified ANSI TIA/EIA568-2, ISO/IEC 11801. RoHS Compliant.
3.Application: 100Base-TX, 100VG-AnyLan, 1000Base-T, ATM, Noisy Environment.
4.Remark: 250HMZ 550MHz ATM 155MBPS, 100mbps TPDDI, Fast Ethernet etc.

Specifications:
Cat6 Lan Network Cable Construction: Cat6 UTP Cable

Item	Conductor	Number Of Pairs	Shielding	Drain Wire	O.D.
Cat6 UTP	0.57mm BC/CCA	4	Non	Non	6.2mmPVC ROHS,UV,LSZH,UL,Reach
Cat6 FTP	0.57mm BC/CCA	4	Aluminum Foil	Yes	6.8mm PVC ROHS,UV,LSZH,UL,Reach
Cat6 SFTP	0.57mm BC/CCA	4	Aluminum Foil + Alloy Braiding	Yes	7.2mm PVC ROHS,UV,LSZH,UL,Reach
UTP Cat6 Outdoor	0.57mm BC/CCA	4	Non	Non	PVC+PE PVC ROHS,UV,LSZH,UL,Reach
FTP Cat6 Messenger	0.57mm BC/CCA	4	Aluminum Foil	Yes	PVC+Messenger ROHS,UV,LSZH,UL,Reach

Cat6 Lan Network Cable Technical Performance(100m)UTP Cat6 AMP

Frequency MHz	ATT ≤dB/100m	NEXT ≥dB/100m	ELFEXT ≥dB/100m
0.772	1.80	76.1	70
1	2.00	74.2	67.8
4	3.80	64.9	55.8
8	5.30	60.3	49.7
10	6.00	58.8	47.8
16	7.60	55.3	43.7
20	8.50	54.1	41.8
25	9.50	52.9	39.8
31.25	10.70	49.5	37.9
62.5	15.40	47.4	31.9
100	19.80	44.1	27.8
200	29.00	38.6	21.8
250	32.80	38.9	19.8

Applications:UTP Cat6 AMP
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network.
4.Ethernet Network.
5.Audio and Data Transmission.

If you have any interest in our products,
Contact us any time,We'll answer you in the first time.

24 Hours Available

DSC Located at the city of Lin'an, Hangzhou, Hangzhou Lin'an Dongsheng Cable Co., Ltd. is 28km away from Hangzhou City, covering an area of 30000 square meters, with beautiful landscape and convenient communication facilities.

Since 1991, 24 year cable experience, our rapid development helps us to be the industry leader. Our company has passed ISO9001 quality system certification & UL certification, and had foreign trade license. Our company is on the top with comprehensive strength.

Main products in our company cover LAN Network Cables Cat5e CAT6 Cat3, Coaxial CCTV/CATV Cable RG6 RG59 RG11 RG59-2C QR500 RG58 RG213 LMR400 KX6 19VATC CT100 SAT703 ect. Telephone Cable, Alarm Cable and Cable Accessories

Our motto is "Keeping pace with the time, and going up like the sun", just as our company's name, Dongsheng, suggests. We are looking forward to establishing long term & mutually beneficial business relationship with you.
