Analog Gauge Tank Pressure Sensor MPM489

Name: Analog Gauge Tank Pressure Sensor MPM489
Brand: all-electronics-online.com
SKU: 838180975
Availability: InStock
Rating: 4.5 (144 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM489
Measurement Range:	-0.10~0.01...100MPa
Principle:	Piezoresistive
Wires:	Two-Wires, Three wire optional
Power Supply:	11~28VDC
Protection:	IP65
Operation Temp:	-30~80c
Accuracy:	+-0.5%Fs
Pressure Type:	Sealed Gauge,Gauge,Absolute
Housing:	Stainless Steel
Diaphragm:	Stainless Steel
Thread Type:	M, G, R. NPT et.as you require

Product Description

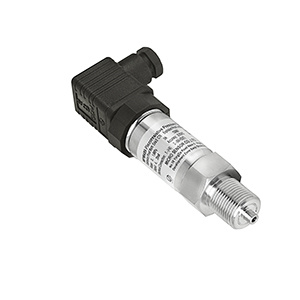

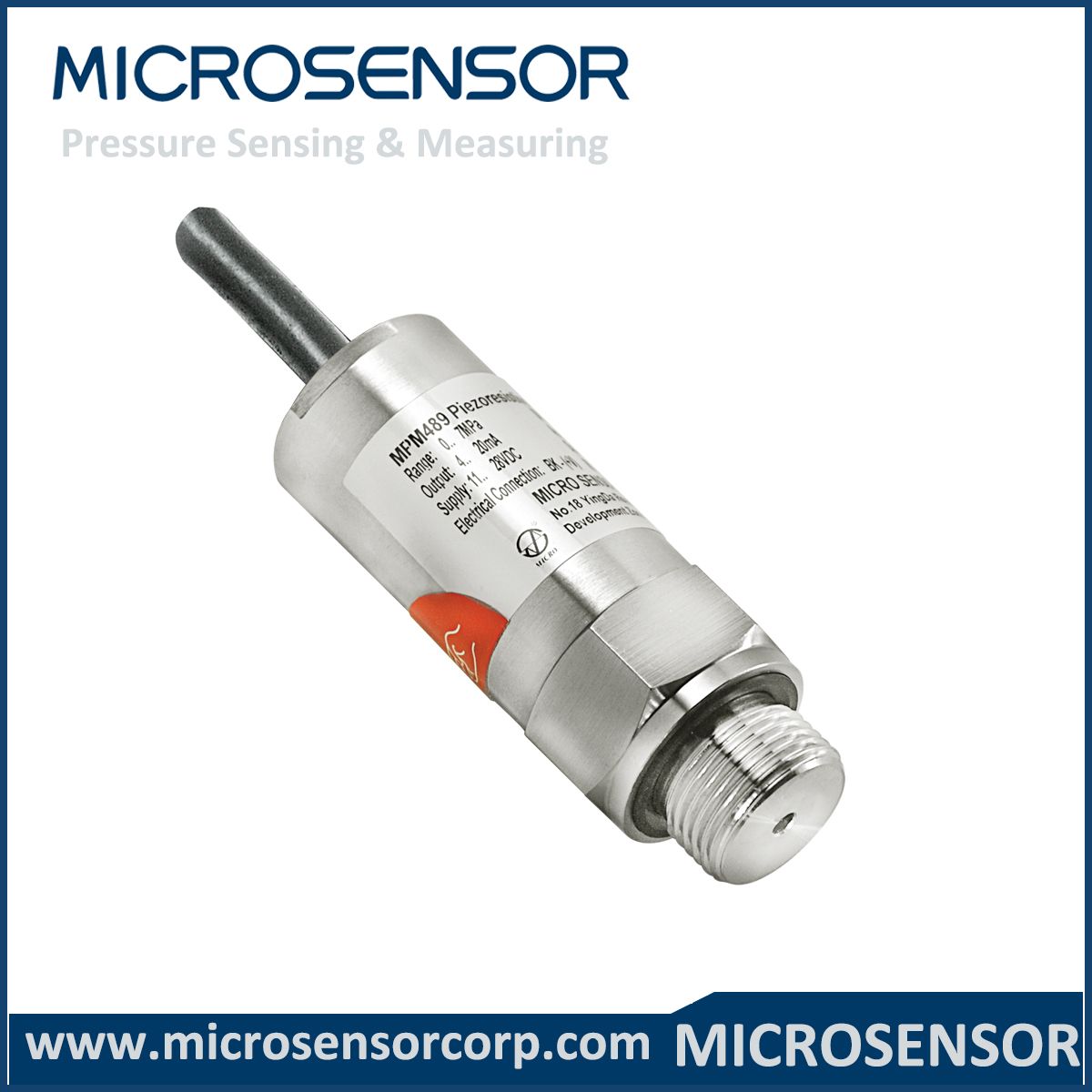

Analog Gauge Tank Pressure Sensor MPM489

Features:
  1.      CE
  2.      2-wire, 3-wire optional
  3.      Piezoresistve
  4.      Gauge, absolute, sealed gauge
  5.      Intrinsic safe
  6.      EXD
  7.      RoHS

Construction material:
  1.      Housing: stainless steel 1Cr18Ni9Ti
  2.      Sensor housing: stainless steel 1Cr18Ni9Ti
  3.      Diaphragm: stainless steel 316L
  4.      Sealed-ring: Viton
  5.      Plug housing: plastic
  6.      Cable: Φ7.5mm Polyethylene Special Cable:

Specification:

Pressure range	-0.10~0.01...100MPa
Overpressure	1.5 times FS or 110MPa (min. value is valid)
Pressure type	gauge/ absolute / sealed gauge
Process connection	M20×1.5 male waterline seal (or on your demand)
Accuracy	0.5%FS
Long term stability	max. ±0.3%FS/year
Zero thermal drift	0.1%FS/ºC(≤100kPa);0.05%FS/ºC(>100kPa)
Span thermal drift	0.1%FS/ºC(≤100kPa);0.05%FS/ºC(<100kPa)
Compensation temp.	0~50ºC
Application temp.	-30~80ºC, intrinsic safe version: -10~60ºC , EXD: -20~60ºC
Storage temp.	-40~120ºC
Power supply	11~28VDC,intrinsic safe version supplied by safe barrier
Output signal	4~20mADC(2-wire), 0/1~5VDC(3-wire)
Load	≤(U-10)/0.02Ω(2-wire), ≥10k(3-wire)
Housing protection	IP65
Electric connection	DIN43650 plug

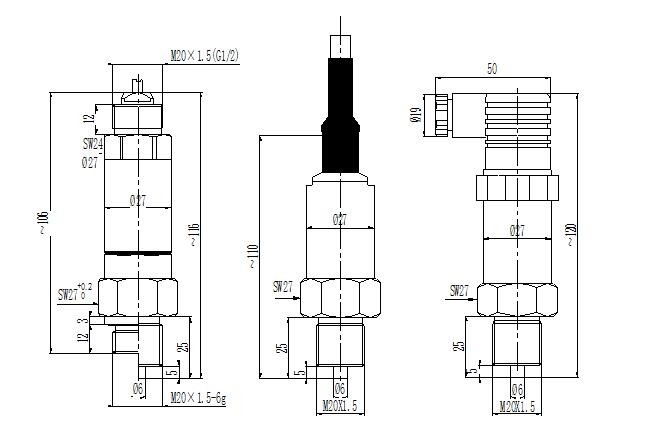

Outline Construction:

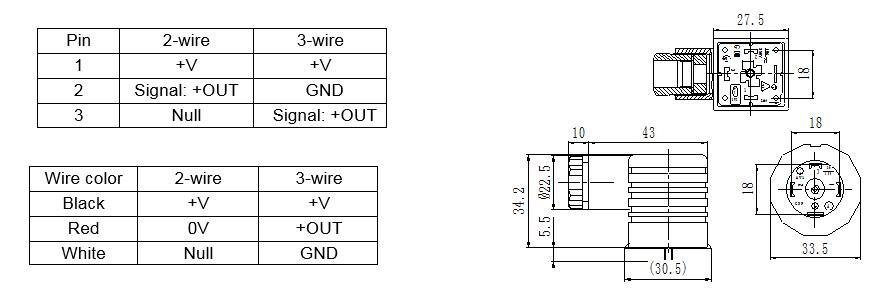

Electric Connection:

Order Information

MPM489

Pressure Sensor

Range

Pressure range: -0.10~0.01...100MPa

[0~X]kPa or MPa

X:the actual measured pressure

Code

Output signal

4~20mADC

1~5VDC

0~5VDC

Code

Construction material

Diaphragm

Pressure port

Housing

SS 316L

Tantalum

Hastelloy

Code

Others

Plug connection

Cable connection

PC1

Flush diaphragm, M20×1.5 male

PC3

Flush diaphragm, G1/2 male

3 1/2 digits LCD digital indicator

3 1/2 digits LED digital indicator

Intrinsic safe version: ExiaIICT6

Ship-use

ExdIICT6

M20×1.5 male, face type seal

G1/2 male (used for flush diaphragm type)

M20×1.5 male, waterline seal

Gauge

Sealed gauge

Absolute

MPM489 [0~100kPa] E 22 B1C5G the whole spec
