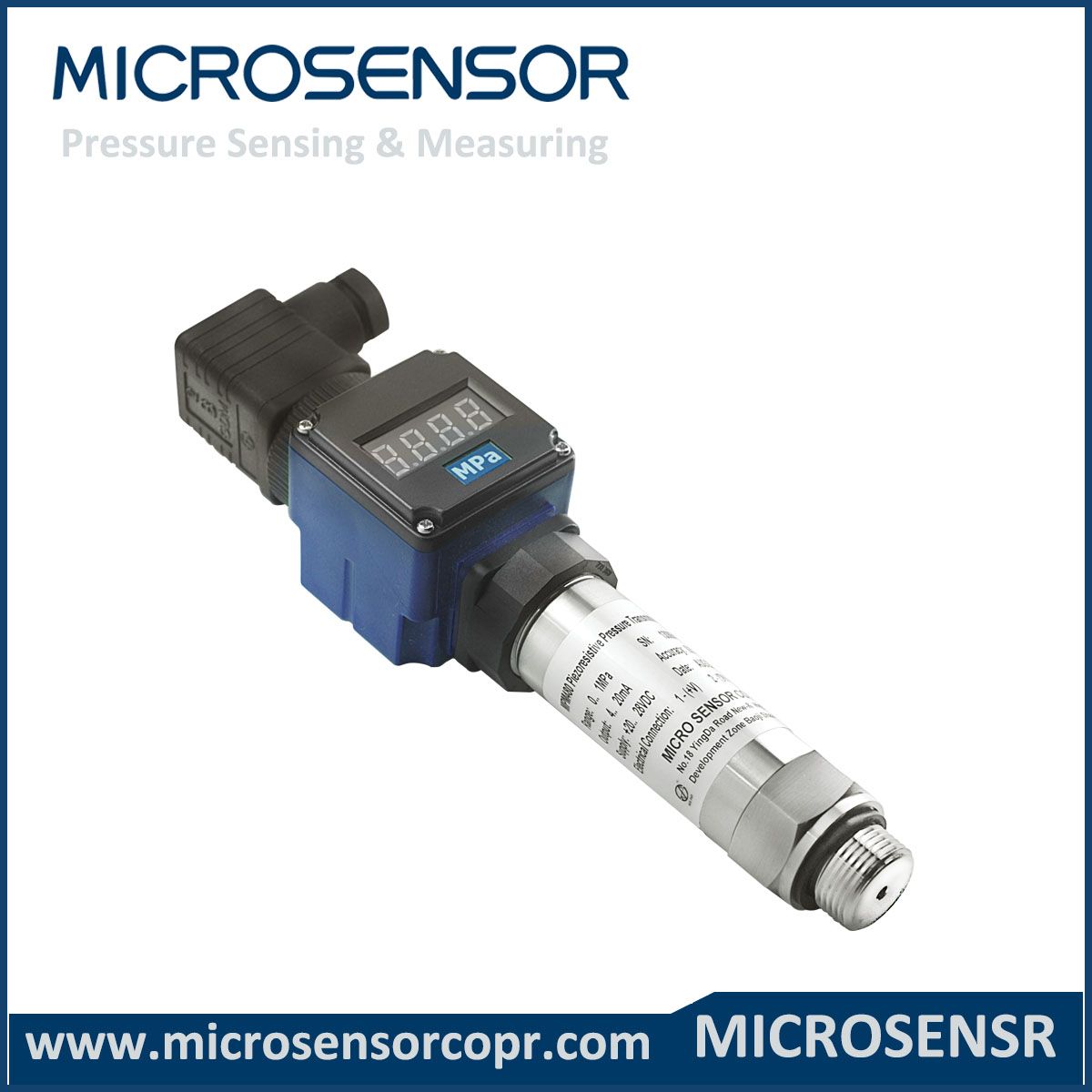

Analog Output Fuel Pressure Transmitter Mpm480

Prod Model:	MPM480
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement Range:	-0.1...0~0.01...100MPa
Output:	Analog Sensor
Usage:	Pressure Sensitive Sensor
Theory:	Processing Pressure Measurement
Accuracy:	+-0.25%Fs(Typ.)
Protection:	IP65
Storage Temp:	-40~120c
Operation Temp:	-30~80c
Power Supply:	15~28VDC
Overpressure:	1.5 Times Fs or 110MPa (Min. Value Is Valid)

Product Description

                                 Analog Output Fuel Pressure Transmitter MPM480

Features:
1. Wider pressure range;
2. IP65;
3. Optional output signal;
4. Local calibration and displayable;
5. All stainless steel;
6. Various pressure port

Certificates:
1. CE;
2. RoHS;
3. Ship-use;
4. Exd IICT6;
5. Exia IICT6

Application:
1. Chemical industry;
2. Petroleum;
4. Drainage and hydrology;
4. .Metallurgy;
5. Power station

Options:
1. Sealed gauge, gauge, absolute;
2. Flush diaphragm;
3. LCD&LED digital indicator;
4 .Intrinsic safe version;
5. Sanitation type;
6. 4~20mADC

Specifications:
1. Pressure range:  -0.10~0.01100MPa
2. Overpressure:   1.5 times FS or 110MPa(min. value is valid)

3. Pressure type:   gauge, absolute or sealed gauge
4. Accuracy:       0.25%FS(typ.)          0.5%FS(max.)
5. Long-term stability: 0.2%FS/year(typ.       0.3%FS/year(max.)
6. Zero temp. drift:   0.03%FS/ºC(≤100kPa);  0.02%FS/ºC(>100kPa)
7. FS temp. drift:    0.03%FS/ºC(≤100kPa);  0.02%FS/ºC(>100kPa)

8. Operation temp.  -30ºC~80ºC
9. Storage temp.:   -40ºC~120ºC
10. Power supply:    15~30VDC               15~28VDC               15~28VDC
11. Output signal:    4~20mADC               0~10/20mADC            0/1~5/10VDC
12. Transmitting:       2-wire                     3-wir                      3-wire
13. Load:          ≤(U-15)/0.02Ω           ≤(U-15)/0.02Ω               >100k
14. Protection: IP65 for both cable and plug connection

15. Electric connection: Plug connection or 1.5m cable connection
16. Housing:  stainless steel 1Cr18Ni9Ti

17. Diaphragm:  stainless steel 316L
18. O-ring: Viton
19. Rubber casing: NBR
Order guide:

MPM480

Piezoresistive Pressure Transmitter

Range

Pressure range: -0.10~0.01100MPa

[0~X]kPa or MPa

X= actual pressure range

Code

Output signal

E

4~20mADC

F

1~5VDC

J

0~5VDC

Q

0~10mAC

U

0~20mAC

V

0~10VDC

Code

Construction material

Diaphragm

Pressure port

Housing

22

SS 316L

SS

SS

24

SS 316L

SS 316L

SS 316L

25

Tantalum

SS

SS

35

Tantalum

Hastelloy C

SS

Code

Other

B1

Plug connection

B2

Cable connection   cable length: 1.5m

PC1

Flush diaphragm, M20×1.5 male

PC3

Flush diaphragm, G1/2 male

P3

Sanitationtype:-0.10~0.022MPa,DN25clamp connection

M3

31/2 digits LCD digital indicator(only for 4~20mA)

M4

31/2 digits LED digital indicator(only for 4~20mA)

i

Intrinsic safe version ExiaIICT6

T

Ship-use

d

ExdIICT6

C1

M20×1.5 male, face type seal

C3

G1/2 male

C5

M20×1.5 male, waterline seal

G

Gauge

A

Absolute

S

Sealed gauge

MPM480  [0~100]kPa    E       22    B1PC3G                    the whole spec
