Analog Output Pressure Transducer with Pressure Ports MPM489

Name: Analog Output Pressure Transducer with Pressure Ports MPM489
Brand: all-electronics-online.com
SKU: 741513295
Availability: InStock
Rating: 4.9 (90 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPM489
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Measurement Range:	-0.1...0~0.01...100MPa
Output:	Analog Sensor
Usage:	Processing Pressure Measurement
Theory:	Level Measurement
Protection:	IP65
Accuracy:	+-0.5%Fs(Typ.)
Storage Temp:	-40~120c
Compensated Temp:	-10~80c
Housing:	Stainless Steel
Output Signal:	4~20madc

Product Description

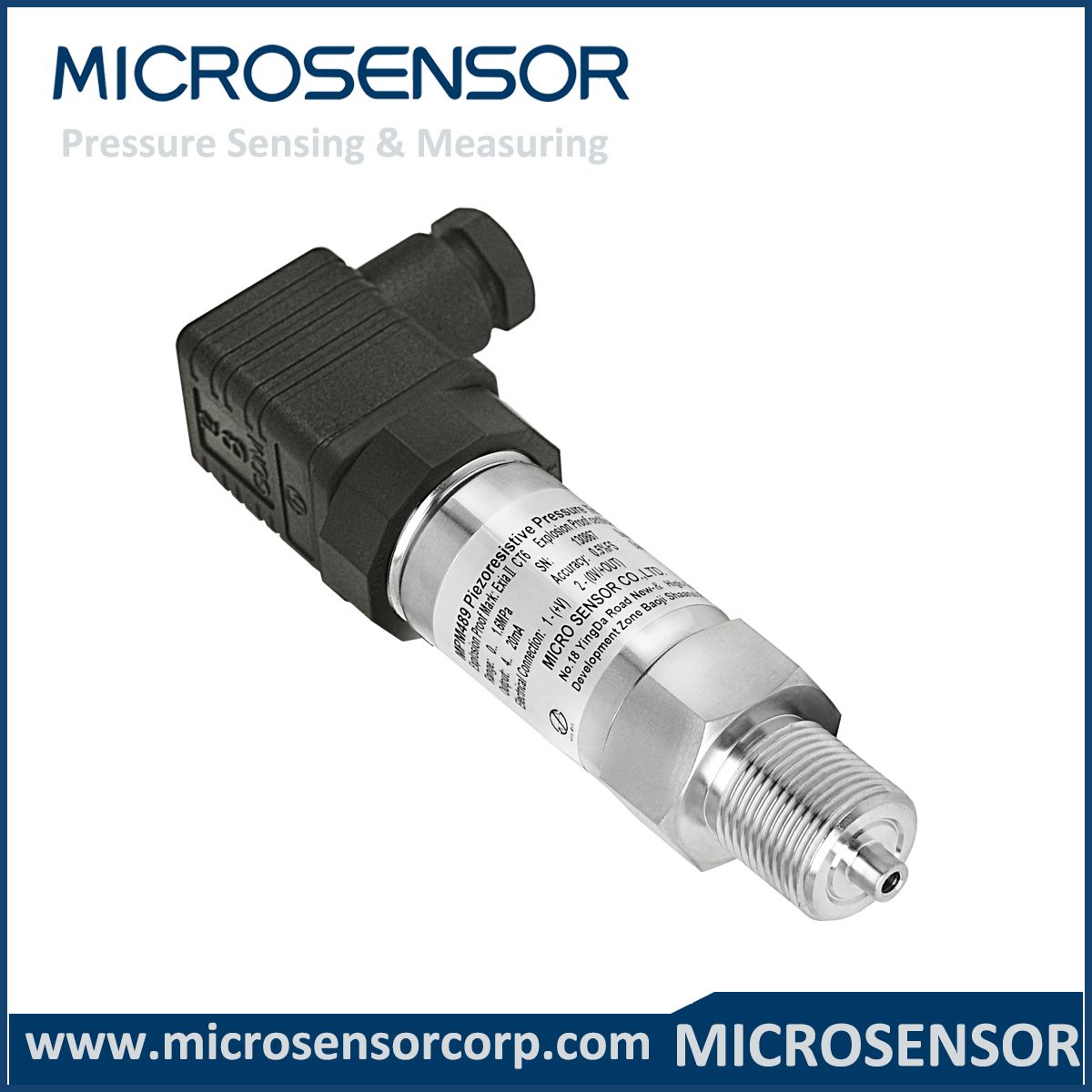

Analog Output Pressure Transmitter with Pressure Ports MPM489

Features:
1. Short protection;
2. Reliable performance;
3. Easy application;
4. Revered-polarity protection;
5. All stainless steel

Certificates:
1. CE;
2. RoHS;
3. Ship-use;
4. Exd II CT6;
5. ISO

Applications:
1. Oil;
2. Chemical industry;
3. Power station;
4. Hydrology & drainage;
5. Geology

Options:
1. Gauge, sealed gauge, absolute;
2. LCD&LED digital indicator;
3. Flush diaphragm type;
4. Intrinsic safe version;
5. 4~20 m ADC output

Specifications:
Pressure range:   -0.10~0.01...100MPa
Overpressure:    1.5 times FS or 110MPa (min. value is valid)
Pressure type:    gauge/ absolute / sealed gauge
Process connection: M20×1.5 male waterline seal (or on your demand)
Accuracy:    0.5%FS
Long term stability: max. ±0.3%FS/year
Zero thermal drift: 0.1%FS/ºC(≤100kPa);0.05%FS/ºC(>100kPa)
Span thermal drift: 0.1%FS/ºC(≤100kPa);0.05%FS/ºC(<100kPa)
Compensation temp.:   0~50ºC
Application temp.:     -30~80ºC, intrinsic safe version: -10~60ºC , EXD: -20~60ºC
Storage temp.:       -40~120ºC
Power supply:       11~28VDC,intrinsic safe version supplied by safe barrier
                      EXD: 8~28VDC

Output signal:       4~20mADC(2-wire),           0/1~5VDC(3-wire)
Load:               ≤(U-10)/0.02Ω(2-wire),      ≥10k(3-wire)
Housing protection:   IP65
Electric connection: DIN43650 plug

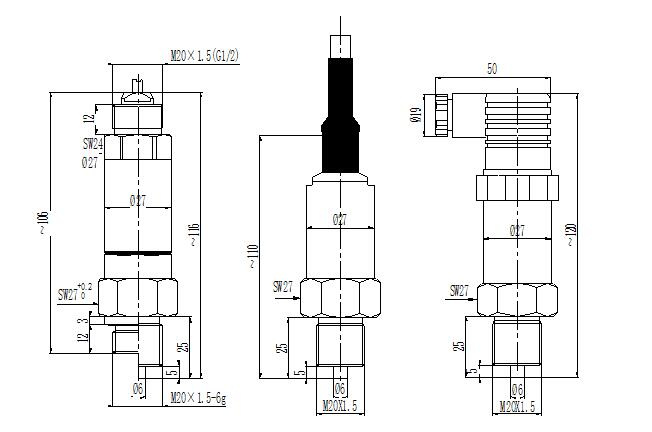

Outline Construction:

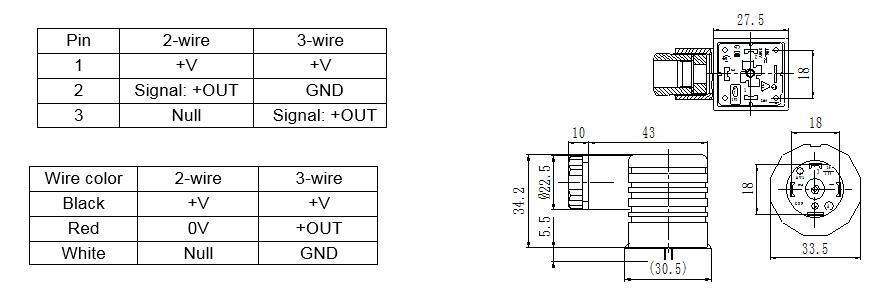

Electric Connection:

Order guide:

MPM489

Pressure Transmitter

Range

Pressure range: -0.10~0.01100MPa

[0~X]kPa or MPa

X:the actual measured pressure

Code

Output signal

4~20mADC

1~5VDC

0~5VDC

Code

Construction material

Diaphragm

Pressure port

Housing

SS 316L

Tantalum

Hastelloy

Code

Others

Plug connection

Cable connection

PC1

Flush diaphragm, M20×1.5 male

PC3

Flush diaphragm, G1/2 male

3 1/2 digits LCD digital indicator

3 1/2 digits LED digital indicator

Intrinsic safe version: ExiaIICT6

Ship-use

ExdIICT6

M20×1.5 male, face type seal

G1/2 male (used for flush diaphragm type)

M20×1.5 male, waterline seal

Gauge

Sealed gauge

Absolute

MPM489 [0~100kPa] E 22 B1C5G the whole spec
