| Prod Model: |
PH-100AC |
| Noise Reduction Ratings: |
(Nrr):24dB |
| Cable Length: |
Straight Cable 150cm |
| Boom: |
Spring Tension Boom |
| Ear: |
Foam Ear Seal/Gel Ear Seal |
| Ear Pads: |
Gel Ear Pads Optional |
| Microphone Plug: |
Pj-068( .206"F5.2 Phone Plug) |
| Earphone Plug: |
Pj-055( .25"F6.3 Phone Plug) |
| Application: |
Airplane/Airline/Pilot/Aircraft |
| Item: |
Anr Active General Dual Earmuff Aviation Headset |
| Warranty: |
12 Months |
Product Description

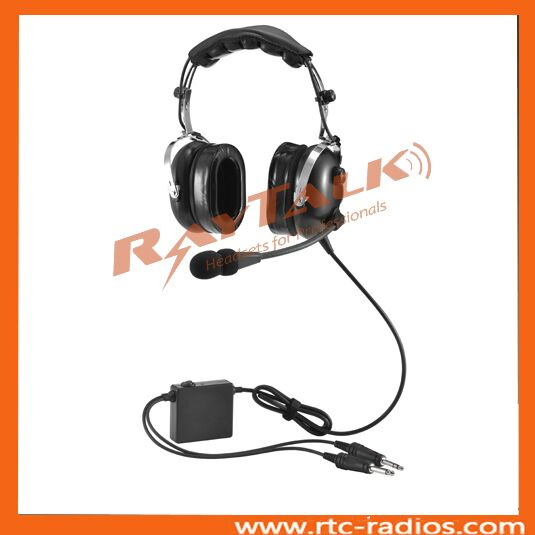

ANR active general dual earmuff aviation pilot headset for flight
1. GA use Dual plugs
2. Use for general aviation
3. Super Soft Double Foam Head Pad
4. Molded cord assembly made to exceptional pull and flex standards
5. Strong Steel Boom provides flexible and steady microphone placement
6. 8 color available
| Headphones | Type: Dynamic (F50)
Frequency Response:100Hz to 8 kHz
Sensitivity:95+/-5 dB SPL
(1 kHz, 1 mW input per earcup side)
full volume on ear simulator
Impedance:150 ohms (300 ohms each; wired in parallel)
Rate Input:100mW
Max. Input: 250mW |
| General | Operating Temperature: -20 to 70 °C
Cordage: Straight cord from headset to molded plug, 150CM

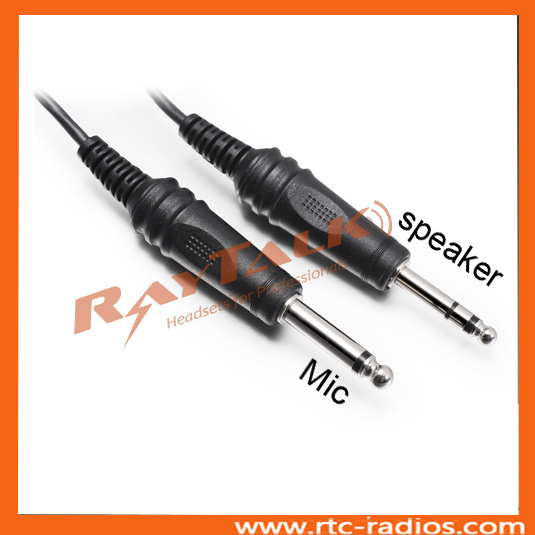

Intercom Connections Plug:
Earphone Plug: PJ-055( .25"F6.3 phone plug)
Microphone Plug:PJ-068( .206"F5.2 phone plug)
Weights: 530g
Headset size range Height: 10 to 14 cm
Color: Green/Black/Pink/Red/Yellow/Blue/ White/Gray
Boom: Spring tension boom
|
| Microphone and amplifer | Element Type: Noise-canceling electret
Frequency Response:100Hz to 5 kHz
Operating Voltage (supplied by aircraft ):8-32 Volts DC
Matching Impedance: 150-1000 ohms
Sensitivity:-33+/-4 dB
(ref: 0dB SPL=20.0uPa at 1 kHz with 10 Vdc 150 ohms AC load) |

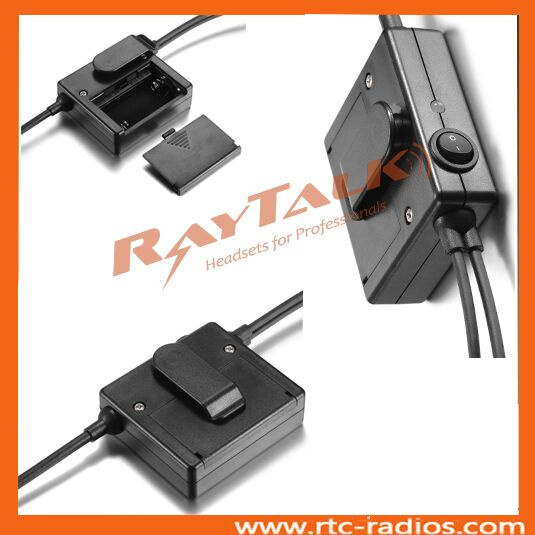

Standard 1.5V AA batteries box
GA 2pin plugs

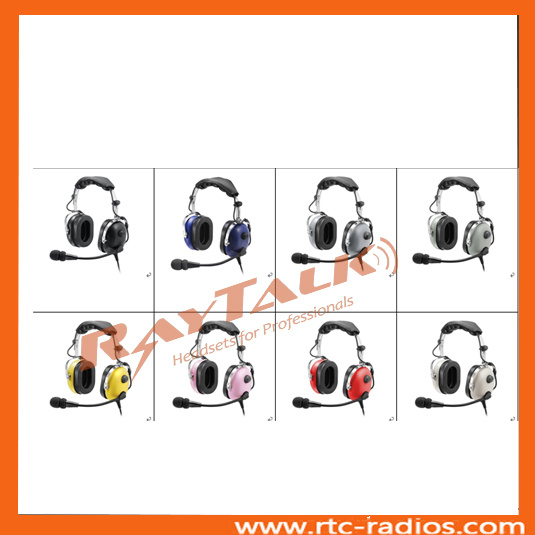

Black, blue, gray, green, yellow, pink, red, white 8 color available

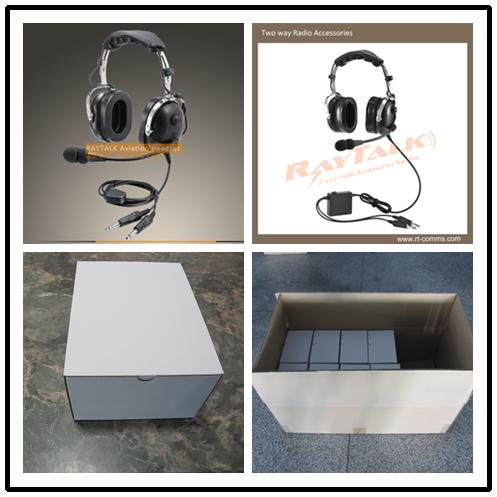

Packaging:1pc headset in a white box.
Warranty: 12 months
MOQ: 24/pcs
