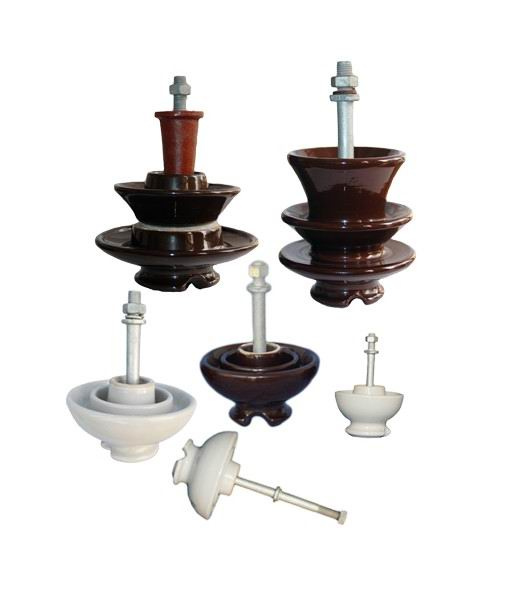

ANSI 55-1 Pin Type Porcelain Insulator

Name: ANSI 55-1 Pin Type Porcelain Insulator
Brand: all-electronics-online.com
SKU: 815574935
Availability: InStock
Rating: 5 (122 reviews)

Price:	US $ 1-10/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	55-1
Certificaton:	IEC, BS
Surface Processing:	Glazed
Application:	High-voltage
Material:	Porcelain
Structure:	Pin Insulator
Type:	A Type Insulator
Size Of Bearing Capacity:	11kn
Color:	Brown or White
Brand:	Powery

Product Description

Product Description

specifications
1. original insulator producer
2. superior properties of low and medium temperature resistance;
3. strong aging resistance;
4. nice appearance & long service time.
5. comman glaze and semi-conductor glaze, color brown and gray both available.
6. free sample, professional porcelain insulator supplier.

product description
porcelain spool insulator details and parameters

ANSI CLASS			55-1	55-2	55-3	55-4	55-5	55-6	55-7
Fig. No.			1	2	3	4	4	4	4
Glazed A:Plain B:Radio Freed			A/B	A/B	A/B	A/B	A/B	A/B	A/B
Main Dimension		H	89	82.6	95.3	111.2	123.9	140	140
		h	44.5	38.1	38.1	44.5	50.8	57	57
		D	82.6	95.3	120.7	140	177.8	213	213
		d	25.4	25.4	25.4	25.4	25.4	25.4	35
		R1	-	16	14.3	25.4	25.4	25.4	25.4
		R2	13	16	14.3	14.3	14.3	16	16
Nominal Voltage kV			3	6	10	10	15	22	22
Creepage Distance/mm			102	127	178	229	305	381	381
Flashover voltage	Power Frequency	Dry/kV	35	50/45	65/55	70/65	85/80	100	100
	Power Frequency	Wet/kV	20	25	35/30	40/35	45	50	50
	50% Impulse	Positive/kV	50	75/70	100/90	110/105	140/130	150	150
	50% Impulse	Negative/kV	70	95/85	130/110	140/130	170/150	170	170
Radio Influence voltage	Test Voltage to ground/kV		5	5	10	10	15	22	22
Radio Influence voltage	Maximum RIV at 1000kHz/uV		2500/50	2500/50	5500/50	5500/50	8000/100	8000/100	8000/100
Low-Frequency Puncture Voltage kV			50	70	90	95	115	135	135
Dry Arcing Distance (mm)			57	86	114	127	159	203	203
Cantilever Failing Load (lb)			3000	2500	2500	3000	3000	3000	3000
